Installing an exhaust fan on the roof is a major project. It involves cutting a hole through your roof, installing structural support, running ductwork, making watertight seals, and connecting electrical wiring at height.

This is not a DIY project for a weekend handyman. It requires professional skills, specialized tools, safety equipment, and compliance with building codes.

A roof-mounted exhaust fan is used when wall mounting is not possible. The bathroom or kitchen has no exterior wall. The duct run to the nearest wall is too long or obstructed. The roof is the only available path to the outdoors.

Roof installations are also common in single-story homes with attic spaces, top-floor apartments, and commercial kitchens where vertical exhaust is preferred for capturing hot, buoyant fumes.

The installation involves installing a roof curb, which is a raised frame that the fan sits on. The curb must be flashed and sealed to prevent roof leaks. The fan mounts on the curb with vibration isolation. The duct connects from the room grille to the fan inlet.

The electrical connection is made with a properly rated circuit and a means of disconnection at the fan. A backdraft damper prevents outdoor air from entering when the fan is off. A bird screen prevents pests from nesting.

This guide walks through the complete process with detailed safety warnings. If you are not a professional roofer, electrician, or HVAC technician, this guide is for understanding the scope of work, not for doing it yourself. Hire licensed professionals for roof installations.

Introduction

A restaurant owner called me in a panic during the first heavy rain of the monsoon season. Water was dripping through the ceiling of his dining area. The ceiling tiles were stained. The plaster was soft. When I got up on the roof, the problem was immediately obvious.

The kitchen exhaust fan had been installed by someone who knew how to mount a fan but did not understand roofing. The curb flashing was incomplete. The sealant had degraded. Rainwater was running down the outside of the duct and into the building.

The repair required removing the fan, rebuilding the curb, installing proper flashing, and replacing the damaged ceiling below. The repair cost more than the original installation. All because a critical waterproofing step was skipped.

Roof penetrations are unforgiving. A wall penetration that leaks damages a small area. A roof penetration that leaks channels water into the building interior, damaging ceilings, walls, insulation, and electrical systems. Getting the waterproofing right is not optional. It is the entire point of the installation.

This guide explains the complete process of installing a roof exhaust fan. It is written to educate homeowners, facility managers, and builders about what the job entails. It is not a substitute for professional training. Roof work is dangerous and technically demanding. Hire qualified professionals.

When Roof Installation Is the Right Choice

Roof installation is chosen when wall installation is not feasible. The most common scenarios include a bathroom or kitchen with no exterior wall available for a wall-mounted fan. The room is in the interior of the building. The duct must go up through the ceiling and out the roof.

A duct run to the nearest exterior wall that would be excessively long or obstructed by beams, plumbing, or electrical conduits. The roof path is shorter and straighter, which means better airflow.

A commercial kitchen where the exhaust must discharge vertically upward. Hot cooking fumes are buoyant and naturally rise. A vertical roof exhaust captures them more effectively than a horizontal wall exhaust.

A single-story home or top-floor apartment where the roof is directly above the ceiling. The duct run is short. The installation is relatively straightforward compared to routing ductwork through multiple floors.

Roof installation is not the first choice when a wall is available. Wall installations are simpler, cheaper, safer, and easier to maintain. Use the roof only when the wall is not an option.

Types of Roof Exhaust Fans

Several types of fans are designed specifically for roof mounting.

An upblast roof exhaust fan discharges air vertically upward. The fan sits on a roof curb. The motor is above the roof line. The exhaust air is blown straight up. This is the standard choice for commercial kitchen exhaust because it keeps hot, greasy air away from the roof surface and neighboring properties.

A downblast roof exhaust fan discharges air downward toward the roof surface. This is used for general ventilation where the exhaust air is clean or only slightly contaminated. Downblast fans are less common than upblast for residential applications.

A curb-mounted axial fan is a simpler, less expensive option for residential bathroom or general exhaust. The fan is mounted horizontally on a roof curb with a weather hood. The hood prevents rain entry while allowing air to discharge.

An inline fan with a roof vent termination uses a centrifugal inline fan mounted in the attic or ceiling cavity, connected to a roof vent cap. The fan is not on the roof. Only the vent cap is. This is the most common configuration for residential bathroom exhaust. It avoids having an electrical appliance exposed to weather on the roof.

Safety Requirements and Fall Protection

Working on a roof is inherently dangerous. Falls from height are a leading cause of serious injury and death in construction. Safety is not negotiable.

Before any roof work begins, a fall protection plan must be in place. For residential roofs, this typically involves a personal fall arrest system. A full-body harness, a lanyard, and a secure anchor point. The anchor point must be capable of supporting 5000 pounds. It must be installed by a competent person.

Guardrails can be installed around the work area. They must be properly constructed with a top rail, mid rail, and toe board. Guardrails are required for commercial projects and are good practice for any roof work.

A safe means of access must be provided. An extension ladder that extends at least 3 feet above the roof edge. The ladder must be secured at the top and bottom. The roof surface must be assessed for slip hazards. Wet, mossy, or steep roofs require additional precautions.

Electrical safety is critical. The power supply must be locked out before any wiring work begins. All electrical work must be done by a licensed electrician. Roof work should not be done during rain, high winds, or lightning.

If you are not trained in fall protection and roof safety, do not go on the roof. Hire professionals who are trained and equipped.

Building Codes and Permits

A roof exhaust fan installation typically requires permits. Check with your local municipal corporation or development authority before starting work.

A building permit is required for any structural modification, including cutting a hole in the roof. The permit ensures the work complies with structural and fire safety requirements.

An electrical permit is required for the wiring. The permit ensures the work is done by a licensed electrician and complies with the electrical code.

If the building is in a regulated zone, heritage area, or has specific architectural controls, additional approvals may be required. The roof vent may need to be located where it is not visible from the street.

Homeowner association rules may apply in gated communities and apartment complexes. The HOA may have restrictions on roof penetrations, vent locations, and visible equipment.

The installation must comply with the National Building Code of India and any local amendments. The NBC specifies requirements for roof penetrations, fire-rated assemblies, and ventilation system design.

Failure to obtain required permits can result in fines, orders to remove the installation, and problems when selling the property. The cost of permits is a small fraction of the cost of non-compliance.

Tools and Materials

A roof exhaust fan installation requires specialized tools and materials.

For the roof work, you need a reciprocating saw or circular saw for cutting the roof deck. A drill with appropriate bits. A hammer. A pry bar for removing roofing material. Roofing nails and screws. Roofing sealant or mastic appropriate for the roofing material.

For the curb and flashing, you need the roof curb itself, which is a prefabricated metal or site-built wood frame. Metal flashing appropriate for the roofing material, typically aluminum or galvanized steel. Counter-flashing if required. Sealant and roofing cement.

For the ductwork, you need the duct sections. Rigid galvanized steel or PVC as appropriate. Duct hangers and supports. Aluminum foil tape for sealing joints. Insulation if the duct runs through unconditioned space.

For the electrical work, you need appropriate cable or conduit. A disconnect switch rated for the location. Weatherproof electrical boxes and fittings. Cable connectors and strain reliefs.

For safety, you need a fall protection harness and lanyard. An anchor point. A sturdy extension ladder. Hard hat. Safety glasses. Work gloves. Non-slip footwear.

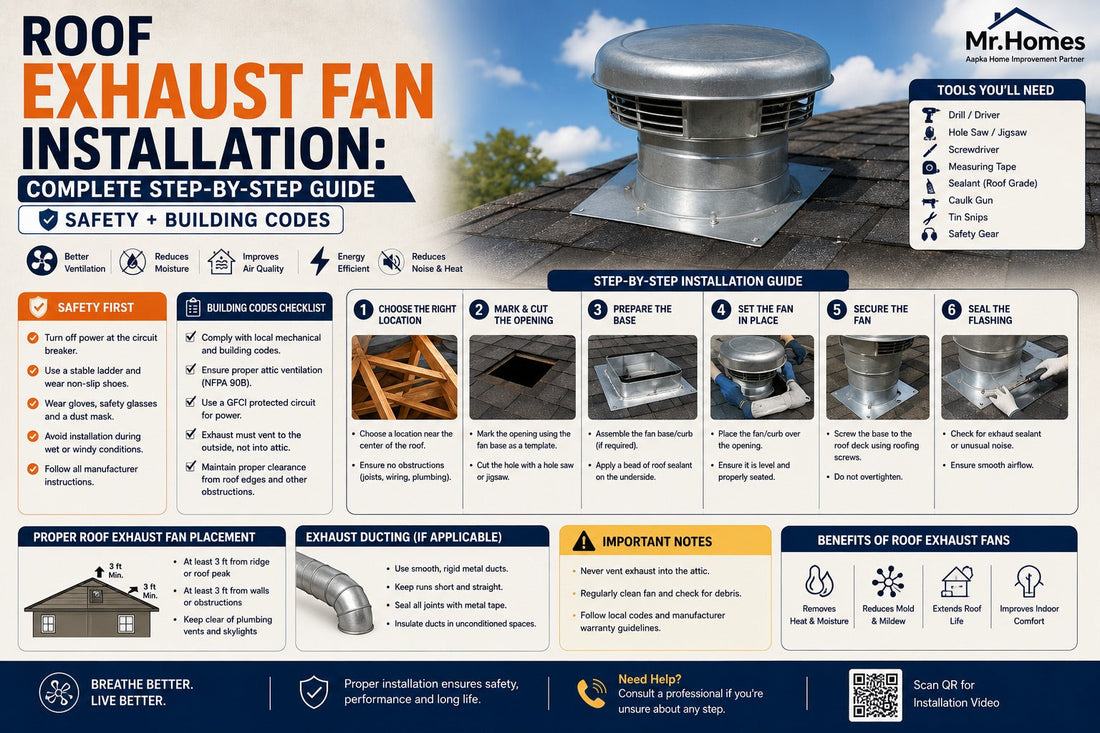

Step-by-Step Installation Process

This is an overview of the installation sequence. Each step requires specific skills and should be performed by qualified personnel.

Step 1 is to locate and mark the roof opening. From inside the attic or ceiling cavity, drive a reference screw up through the roof deck at the desired location. On the roof, locate the screw. Mark the opening dimensions based on the curb size. Ensure the location is between roof rafters, not cutting through them.

Step 2 is to cut the roof opening. Remove the roofing material in the marked area. Cut through the roof deck with a reciprocating saw. Remove the cut section. Install framing between the rafters if needed to support the curb.

Step 3 is to install the roof curb. Set the curb in the opening. Ensure it is level. Secure it to the roof framing with screws or nails. The curb must be rigid and solid. It supports the fan weight and resists wind loads.

Step 4 is to flash the curb. This is the waterproofing step. The flashing integrates the curb with the roofing material. The exact method depends on the roofing type. For shingle roofs, the flashing is woven into the shingle courses.

For membrane roofs, the flashing is bonded to the membrane. The flashing must direct water away from the opening and onto the roof surface. All seams and fasteners must be sealed.

Step 5 is to install the ductwork. Connect the duct from the room grille to the curb. The duct must be properly sized, supported, and sealed. Insulate the duct if it passes through unconditioned space. The duct should have a slight slope toward the curb or a drain point.

Step 6 is to mount the fan on the curb. Place the fan on the curb. Ensure it is properly oriented. Use vibration isolation mounts between the fan and the curb. Secure the fan according to the manufacturer's instructions.

Step 7 is to make the electrical connection. Run the electrical cable or conduit to the fan location. Install a disconnect switch near the fan. Connect the wiring to the fan motor according to the wiring diagram. All connections must be in weatherproof enclosures.

Step 8 is to install the backdraft damper and bird screen if not integrated into the fan. The damper allows air out but not in. The screen prevents pest entry.

Step 9 is to test the system. Turn on the power. Run the fan. Check for proper airflow at the room grille and at the roof discharge. Check for unusual noise or vibration. Check for air leaks at duct joints. After rain, inspect the interior for any signs of water intrusion.

Waterproofing and Flashing

Waterproofing is the most critical quality issue in a roof installation. The goal is to make the roof penetration as watertight as the rest of the roof.

The roof curb provides a vertical surface above the roof plane. The flashing creates a waterproof transition from the curb to the roofing material.

For shingle roofs, the base flashing is installed under the shingles on the uphill side and over the shingles on the downhill side. The shingles are cut and fitted around the curb. The joints are sealed with roofing cement.

For metal roofs, the flashing is typically a one-piece or multi-piece metal assembly that integrates with the metal roofing panels. The joints are sealed with sealant and fastened with screws with neoprene washers.

For flat membrane roofs, the flashing is a membrane strip that is bonded to the curb and to the roof membrane. The bond must be continuous and watertight. A pitch pocket or compression seal may be used for the duct penetration.

All flashing fasteners must be sealed. Water can enter through a screw hole. Every penetration of the flashing must be waterproofed.

The interior of the curb should have a secondary water barrier. If the primary flashing fails, the secondary barrier prevents water from immediately entering the building.

Electrical Connection

The electrical work for a roof exhaust fan must be done by a licensed electrician. The requirements are specific and safety-critical.

The circuit must be properly sized for the fan motor. The wire gauge must be adequate for the current draw and the run length. The circuit breaker must be correctly rated.

A disconnect switch must be installed within sight of the fan motor. This allows the power to be locked out for maintenance. The switch must be rated for outdoor use in a wet location.

All electrical connections must be in weatherproof enclosures. Conduit or cable entry points must be sealed with weatherproof fittings. Water must not be able to enter the electrical system.

The fan must be properly grounded. The grounding conductor must be continuous and connected to the fan ground terminal and the building grounding system.

If the fan is controlled from inside the building, the control wiring must be run in accordance with the electrical code. A means of disconnection must be provided at the fan regardless of the control wiring.

Common Mistakes

Here are the mistakes I see most often in roof exhaust fan installations.

Inadequate flashing is the most common and most damaging mistake. The flashing is incomplete, poorly sealed, or incorrectly integrated with the roofing material. The result is a roof leak that may not be discovered for months.

The fan is not rated for roof mounting. A wall-mounted axial fan installed horizontally on a roof curb. The bearings are not designed for this orientation. The fan fails prematurely.

Vibration isolation is skipped. The fan is bolted directly to the curb. The vibration transmits into the roof structure and is audible throughout the building as a low-frequency hum.

The duct is undersized or uninsulated. The same ductwork mistakes that occur in wall installations occur in roof installations, but they are harder to access and fix.

The bird screen is omitted. Birds, squirrels, and rats find the warm duct an ideal nesting site. The nest blocks the airflow. The droppings create a health hazard.

No access for maintenance. The fan is installed in a location that cannot be safely accessed for cleaning, inspection, or repair. If you cannot reach it, you cannot maintain it.

Frequently Asked Questions

Can I install a roof exhaust fan on a flat roof?

Yes. Flat roofs require a raised curb to elevate the fan above the water level that can accumulate during heavy rain. The curb height must be sufficient to keep the fan opening above the maximum expected water depth. The flashing for a flat roof is different from a sloped roof and must be done by a roofer experienced with flat roof systems.

How do I prevent rain from entering through the roof fan?

A properly designed roof fan has a weather hood or cowl that deflects rain while allowing air to discharge. The curb elevates the fan above the roof surface so standing water does not enter. The backdraft damper closes when the fan is off, providing an additional barrier. During very heavy rain with high winds, some water ingress is possible. The fan should have a drain path for any water that does enter.

How often should a roof exhaust fan be maintained?

At least annually. The fan blades, housing, and backdraft damper should be cleaned. The bird screen should be checked and cleared. The electrical connections should be inspected for corrosion. The flashing and sealant should be checked for cracks or gaps. After severe weather events, a visual inspection from the ground or a ladder is advisable.

Can I vent a bathroom fan and a kitchen fan through the same roof vent?

No. Bathroom exhaust contains moisture. Kitchen exhaust contains grease. They should be separate ducts with separate roof terminations. Combining them would allow grease to accumulate in the bathroom duct and moisture to affect the kitchen duct. Building codes typically prohibit combining exhaust from different types of spaces.

What is the minimum height for a roof exhaust vent above the roof surface?

The National Building Code typically requires the vent termination to be at least 12 to 18 inches above the roof surface for a sloped roof, and higher for a flat roof. Local codes may specify different minimums. The purpose is to prevent rain splash and snow accumulation from blocking the vent.

Do I need a fire damper in the duct if it passes through the roof?

If the duct passes through a fire-rated ceiling assembly, a fire damper is required at the point of penetration. The damper has a fusible link that melts at a specified temperature, causing the damper to close and maintain the fire rating of the assembly. Roof penetrations themselves may not require a damper, but the ceiling penetration below might. Check local fire code requirements.

---
