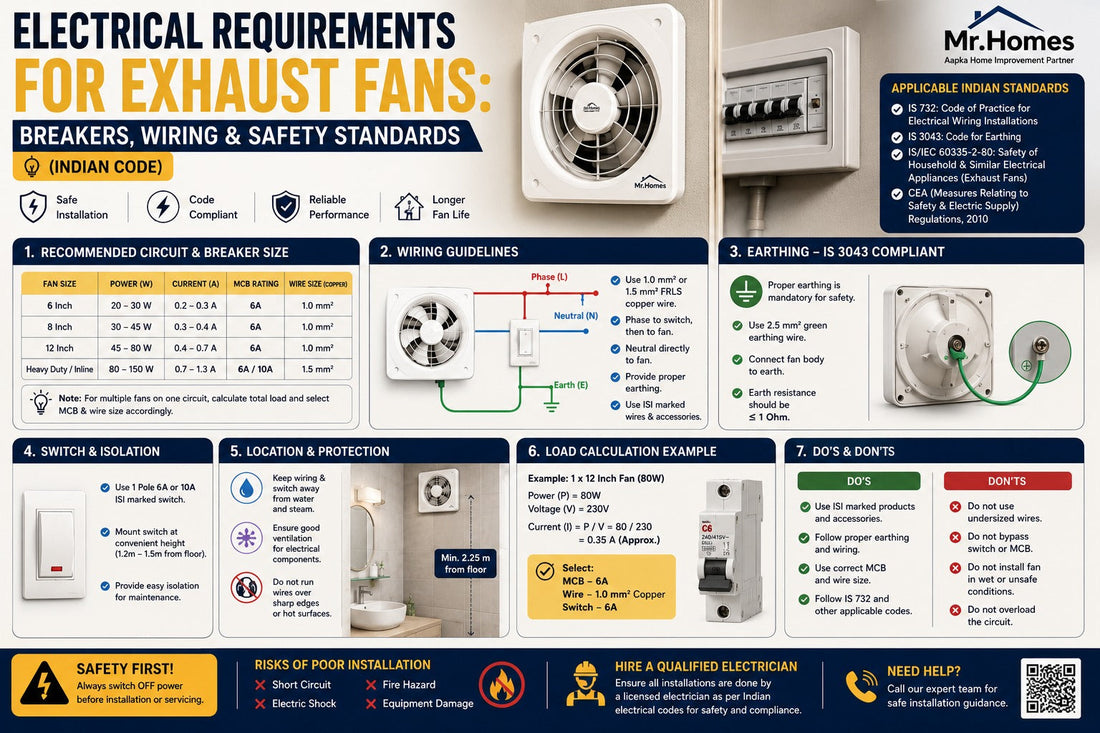

An exhaust fan is an electrical appliance installed in a wet or damp environment. Getting the electrical work right is not just about making the fan run. It is about making sure it runs safely for years without risking electric shock, short circuits, or fire.

The electrical installation for an exhaust fan must comply with the National Electrical Code of India, which is part of the National Building Code, and the relevant Indian Standards published by the Bureau of Indian Standards.

These codes specify the correct cable size, circuit breaker rating, earthing requirements, switch location, and installation practices for electrical work in wet areas.

A typical residential exhaust fan draws between 25 and 50 watts for a 150mm bathroom fan, and 40 to 80 watts for a 230mm kitchen fan. This is a small electrical load. The fan can usually share a circuit with the room lighting, provided the circuit has adequate capacity.

However, the fan must have its own switch. It should not be wired to operate only when the light is on. The fan needs to run after the light is off to clear residual moisture.

The most critical safety requirement is earthing, also called grounding. The fan's metal body must be connected to the building's earth wire. If a fault occurs and the metal body becomes live, the earth connection carries the fault current safely to ground and trips the circuit breaker.

Without earthing, the metal body remains live, and the next person who touches it receives a potentially fatal shock.

This guide explains the electrical requirements for exhaust fan installation in plain language. It is based on Indian electrical codes and is written for homeowners, electricians, and builders who want to get the installation right.

Introduction

A few years ago, I was called to a home where the homeowner complained of a mild tingling sensation when touching the exhaust fan grille. The fan was brand new. It had been installed by a local handyman who also did electrical work.

When I opened the switchboard, the earth wire was neatly coiled up and tucked away, connected to nothing. The handyman had not connected the earthing. The fan motor had a minor insulation fault that was leaking a small current to the metal body. Without an earth path, that current had nowhere to go except through the person touching the fan.

In a dry room, this might have been a harmless tingle. In a wet bathroom, with bare feet on a damp floor, the same fault could have been fatal. Water dramatically reduces the body's electrical resistance. A current that would be imperceptible in dry conditions can cause cardiac arrest in wet conditions.

The fan was working perfectly in mechanical terms. The blades spun. The air moved. The steam cleared. But the electrical installation was dangerous. The fix took ten minutes. Connect the earth wire. Test the earthing with a multimeter. Verify the RCCB tripped correctly. The tingling stopped.

Electrical safety in bathrooms is not about making the fan work. It is about making sure the fan does not kill anyone. This guide explains the requirements.

Indian Electrical Codes and Standards

The primary electrical code in India is the National Electrical Code, which is Part 8 of the National Building Code of India. It is published by the Bureau of Indian Standards. It specifies the requirements for electrical installations in buildings.

The relevant Indian Standards for exhaust fan installation include IS 732 for electrical wiring installations. IS 3043 for earthing. IS 12640 for residual current operated protective devices. IS 3854 for switches for domestic and similar purposes.

These standards specify that electrical work in bathrooms must account for the increased risk of electric shock due to the presence of water and moisture. They define zones within the bathroom based on proximity to water sources.

They specify the types of electrical equipment permitted in each zone. They require additional protection in the form of earthing and residual current devices.

Compliance with these standards is mandatory under the building permit and occupancy certificate process. Local electricity supply companies may have additional requirements that must be met before a connection is provided or modified.

Earthing and Grounding Requirements

Earthing is the single most important electrical safety feature in a bathroom. It provides a safe path for fault current to flow to the ground, tripping the protective device and disconnecting the supply.

The exhaust fan's metal body must be connected to the building's earth conductor. This is the green or green-and-yellow wire in the electrical cable. The earth wire runs from the fan, through the switchboard, to the distribution board, and from there to the building's earth electrode buried in the ground.

When a fault occurs, such as a live wire touching the metal body, the earth connection provides a low-resistance path for the fault current. The high current flows to ground and causes the circuit breaker or RCCB to trip. The supply is disconnected before anyone touches the fan.

Without earthing, the fault current has no path to ground. The metal body remains live. The circuit breaker does not trip because there is no overcurrent. The next person to touch the fan completes the circuit through their body to ground. In a bathroom with wet skin and a damp floor, this can be fatal.

Earthing must be continuous from the fan to the earth electrode. All connections must be tight and corrosion-resistant. The earth wire must not be switched. It must be the same cross-sectional area as the live conductors. The earth resistance must be tested periodically to ensure it remains within acceptable limits.

Circuit Breakers and Overcurrent Protection

A circuit breaker protects the wiring from overheating due to excessive current. It does not directly protect the appliance or the user. It trips when the current exceeds its rated value for a sufficient time.

For a residential lighting and fan circuit, a 6-amp or 10-amp miniature circuit breaker, or MCB, is typical. The choice depends on the total connected load and the cable size. A 6-amp MCB protects 1.0 square millimeter copper wiring.

A 10-amp or 16-amp MCB protects 1.5 square millimeter copper wiring. A 16-amp or 20-amp MCB protects 2.5 square millimeter copper wiring.

The circuit breaker rating must be coordinated with the cable size. The breaker must trip before the cable overheats. An oversized breaker on undersized cable is a fire hazard. The cable can overheat and ignite without the breaker ever tripping.

A single exhaust fan draws very little current. A 50-watt fan at 230 volts draws about 0.2 amps. Multiple fans on the same circuit, plus lighting, can add up. The total load must not exceed the circuit breaker rating. A 6-amp circuit at 230 volts can handle about 1380 watts. This is plenty for several fans and LED lights.

RCCB and Shock Protection

An RCCB, or residual current circuit breaker, also called an RCD or earth leakage circuit breaker, provides protection against electric shock. It works on a different principle than an MCB.

An RCCB monitors the current flowing in the live and neutral wires. Under normal conditions, these currents are equal. If a person touches a live part, some current flows through their body to ground instead of returning through the neutral wire.

The RCCB detects this imbalance. If the imbalance exceeds its rated sensitivity, typically 30 milliamps for residential use, the RCCB trips and disconnects the supply within milliseconds.

A 30-milliamp RCCB is designed to prevent fatal electric shock. Currents above 30 milliamps can cause ventricular fibrillation and cardiac arrest. The RCCB trips before the current reaches this level. It does not prevent the shock entirely. The person still feels a jolt. But it prevents the shock from being fatal.

The National Electrical Code recommends RCCB protection for circuits supplying bathrooms and other wet areas. Many state electricity boards now mandate RCCB installation at the distribution board for all residential circuits.

An RCCB does not replace earthing. Earthing and RCCB protection work together. Earthing provides a reliable path for fault current. The RCCB provides fast disconnection when current leaks to ground through any path, including a person.

Cable Sizing and Wiring

The cable carrying power to the exhaust fan must be adequately sized for the electrical load and the circuit protection.

For residential lighting and fan circuits, 1.5 square millimeter copper cable is standard. This cable size is rated for approximately 12 to 15 amps in typical installation conditions, which is well above the 6-amp or 10-amp circuit breaker protecting it.

Cables in bathrooms must be installed in conduit. PVC conduit is standard. The conduit protects the cable from mechanical damage and moisture. Conduit joints must be properly glued and sealed.

Cable routing should avoid areas where water can accumulate. Cables should not be run below floor level in bathrooms. They should enter the bathroom at a high level, near the ceiling, to minimize exposure to moisture.

All joints and terminations must be in accessible junction boxes. Twisted-and-taped connections hidden in the wall are a fire hazard and a code violation.

The cable color code must be followed. Red or brown for live. Black or blue for neutral. Green or green-and-yellow for earth. Consistent color coding prevents confusion during maintenance.

Switch Location and Bathroom Zones

Indian electrical standards define zones within a bathroom based on the risk of water exposure. The switch for the exhaust fan must be located outside these zones.

Zone 0 is inside the bathtub or shower tray. No electrical equipment is permitted in this zone except low-voltage devices specifically designed for it.

Zone 1 extends from the rim of the bathtub or shower tray to a height of 2.25 meters above the floor. Only water heaters and other equipment specifically designed for this zone are permitted.

Zone 2 extends 0.6 meters beyond Zone 1, horizontally and vertically. Switches and socket outlets are not permitted in Zone 2.

Outside the zones, which is beyond 0.6 meters from the bathtub or shower, standard switches and controls are permitted. The exhaust fan switch should be located in this area. If the bathroom is small and this is not possible, the switch should be located outside the bathroom entirely, on the wall outside the door.

A pull-cord switch is permitted closer to the wet area because the user does not touch the electrical mechanism directly. Pull-cord switches were common in older Indian bathrooms and are still a valid option for bathrooms where a wall switch cannot be located in a safe zone.

Dedicated Circuit vs. Shared Circuit

An exhaust fan can share a circuit with the room lighting, provided the circuit has adequate capacity. This is standard practice in Indian homes. The bathroom light, exhaust fan, and sometimes a shaver socket all share a single lighting circuit.

The fan should not be wired so that it only operates when the light is on. This is a common wiring shortcut that is convenient but incorrect. The fan needs to run for 10 to 15 minutes after the light is turned off to clear residual moisture. A shared circuit with independent switches is acceptable. A shared switch is not.

A dedicated circuit for the exhaust fan is unnecessary for residential applications. The fan's electrical load is too small to justify a dedicated circuit. Dedicated circuits are required for high-power appliances like air conditioners, water heaters, and kitchen chimneys.

Timer Switches and Controls

A timer switch is the best control option for a bathroom exhaust fan. It allows the fan to run for a preset period after being activated, then switches off automatically.

Timer switches are available as modular units that fit in standard Indian switchboards. They replace the standard on-off switch. Brands like Anchor, Legrand, and Havells offer timer switches rated for lighting and fan loads.

A typical timer switch has buttons for preset durations. 5, 10, 15, and 30 minutes are common. The user presses a button. The fan runs for that duration. The user does not need to remember to return and switch it off.

Timer switches are wired the same as standard switches. They are rated for the electrical load of the fan. Installation is straightforward for a qualified electrician.

Smart switches with WiFi connectivity offer timer functions plus remote control and scheduling. They are a more expensive but more flexible option.

Common Electrical Mistakes

Here are the electrical mistakes I see most frequently in exhaust fan installations.

The earth wire is not connected. This is the most common and most dangerous mistake. The fan runs normally. The fault is invisible until someone gets a shock.

The fan is wired to the light switch, so it only runs when the light is on. This is convenient for the installer but wrong for moisture control. The fan must be able to run independently.

The cable is undersized for the circuit breaker. The breaker will not protect the cable from overheating.

Connections are made by twisting wires together and wrapping with tape, without a proper connector or junction box. These connections loosen, overheat, and arc over time.

The switch is installed inside the bathroom in a wet zone. This is a code violation and a shock hazard.

The circuit lacks RCCB protection. In older homes, the distribution board may not have an RCCB. Retrofitting an RCCB is strongly recommended for bathroom circuits.

Frequently Asked Questions

What size MCB is required for an exhaust fan?

For a residential exhaust fan on a lighting circuit, a 6-amp or 10-amp MCB is standard. The fan draws very little current. The MCB is sized for the entire circuit, which typically includes multiple lights and fans. A 6-amp MCB is sufficient for circuits up to about 1380 watts total load.

Can I install an exhaust fan on a plug and socket?

Yes, if the plug and socket are located outside the bathroom wet zones. A socket outlet inside the bathroom must be at least 3 meters from the shower or bathtub edge, which is not possible in most residential bathrooms. A plug-in exhaust fan is more common in kitchens and utility rooms. Hardwired connection through a switch is standard for bathroom installations.

Is an RCCB mandatory for bathroom exhaust fan circuits?

The National Electrical Code strongly recommends it, and many state electricity boards now mandate RCCB protection for all residential circuits. If your distribution board has an RCCB or RCBO protecting the lighting circuits, your bathroom fan is protected. If your home is older and lacks RCCB protection, I recommend having an electrician install one.

Can I extend the wiring from an existing light to power an exhaust fan?

Yes, if the circuit has adequate capacity and the wiring is done correctly. This is a common retrofit. The junction must be in an accessible junction box. The earth wire must be extended. The fan must have its own switch. The total load on the circuit must not exceed the breaker rating.

What is the IP rating required for a bathroom exhaust fan?

IP stands for Ingress Protection. The IP rating indicates how well the fan is protected against water and dust. For a fan mounted outside the bathroom zones on a wall or ceiling, IPX4 is typically sufficient. This means the fan is protected against splashing water from any direction. For a fan mounted directly above a shower enclosure, IPX5 or higher is required. Most standard residential exhaust fans are rated IPX4 or IPX5.

Can I use a dimmer or speed controller with my exhaust fan?

Only if the fan is specifically designed for speed control. Standard AC exhaust fans are not designed for voltage-based speed controllers. Reducing the voltage causes the motor to overheat and fail. If you want variable speed, buy a fan that is specifically rated for speed control, typically a BLDC model with its own electronic controller.
