Ductwork is the hidden half of any exhaust fan system. The fan moves air. The duct carries that air to the outside. If the duct is undersized, the fan chokes. If the duct is uninsulated, condensation forms and drips.

If the duct is improperly terminated, the exhausted air finds its way back inside. A perfectly good exhaust fan connected to bad ductwork is a bad ventilation system.

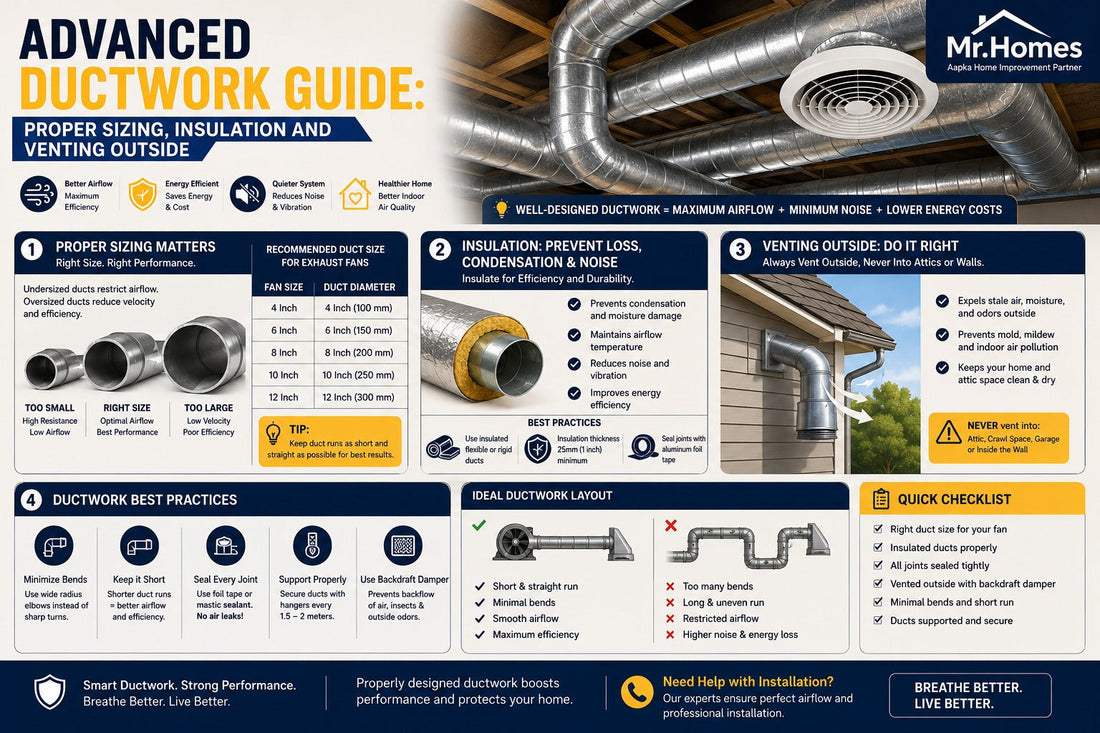

The three critical factors in ductwork design are sizing, insulation, and termination. Sizing means choosing a duct diameter that matches the fan's CFM and the duct length. A 150mm fan typically needs a 150mm duct. Reducing the duct diameter strangles the airflow. Increasing it unnecessarily adds cost and space requirements.

Insulation means wrapping the duct in a thermal barrier when it passes through unconditioned spaces. A duct running through a hot ceiling cavity carries warm, humid exhaust air.

If the duct surface is cooler than the air inside, condensation forms on the inside wall. That water drips back toward the fan or into the ceiling. Insulated ducting prevents this.

Termination means getting the exhaust air fully outside the building envelope. The vent must discharge to open air, not into an attic, a soffit, a crawl space, or a dead air shaft. The termination must include a backdraft damper and an insect screen.

It must be located away from windows, doors, and intake vents to prevent exhausted air from being drawn back inside.

This guide is a technical reference for homeowners, builders, and electricians who want to get ductwork right.

Introduction

I was called to a home a few years ago where the bathroom exhaust fan was dripping water. The homeowner had installed the fan himself. It was a good quality 150mm axial fan on an exterior wall. But the exterior wall was not accessible from that bathroom, so he had run a 10-foot flexible duct through the ceiling cavity to a nearby exterior wall.

He had used 100mm ducting because that is what the hardware store had in stock. He had not insulated it. The duct sagged between the ceiling joists because it was not supported.

The result was predictable. The 100mm duct was too small for the 150mm fan. The airflow was strangled. The uninsulated duct in the hot ceiling cavity caused the warm, humid bathroom air to condense inside the duct.

The sag created a low point where water pooled. When enough water collected, it dripped back through the fan and onto the bathroom floor.

The fix involved replacing the 100mm duct with 150mm insulated ducting, supporting it properly to maintain a continuous slope toward the exterior vent, and replacing the exterior termination with one that had a functioning backdraft damper. The materials cost about Rs. 2000. The labor took an afternoon. The dripping stopped immediately.

Ductwork mistakes are common because ductwork is hidden. It is inside walls and above ceilings. It is out of sight and out of mind. But the ductwork determines whether the fan actually works. A Rs. 5000 fan on bad ductwork performs worse than a Rs. 1500 fan on good ductwork.

Duct Sizing Fundamentals

Duct diameter is the single most important design parameter. An undersized duct chokes the fan. Airflow drops. Noise increases. The fan motor works harder and runs hotter. An oversized duct is not harmful, but it takes up more space and costs more.

The minimum duct diameter should match the fan's outlet diameter. A 150mm fan has a 150mm outlet. Use 150mm ducting. A 230mm fan has a 230mm outlet. Use 230mm ducting. Never reduce the duct diameter below the fan outlet size.

For long duct runs, the minimum diameter may need to increase. A fan that works fine with 150mm ducting for a 5-foot run may need 200mm ducting for a 30-foot run. The longer the duct, the greater the cumulative resistance. A larger diameter reduces air velocity and friction losses.

Here is a general sizing guideline for residential exhaust fans. For 100 CFM or less, use 100mm minimum ducting with runs up to 15 feet. For 100 to 150 CFM, use 150mm minimum ducting with runs up to 25 feet.

For 150 to 300 CFM, use 150mm minimum ducting for short runs and 200mm for runs over 25 feet. For 300 CFM and above, use 200mm minimum ducting and consult a professional for runs over 50 feet.

These are guidelines. The fan manufacturer's installation manual specifies the recommended duct size and maximum duct length. Follow the manufacturer's instructions. They have tested the fan with specific duct configurations.

Rigid vs. Flexible Ducting

Rigid ducting is made of galvanized steel, aluminum, or PVC. The interior walls are smooth. Air flows with minimal turbulence and minimal resistance. Rigid ducting is the preferred choice for any accessible duct run.

The advantages of rigid ducting include lower air resistance, which means better airflow for the same fan power. Less tendency to sag because rigid sections maintain their shape. Easier to clean because smooth walls do not trap dust and debris. Longer lifespan because metal and PVC do not degrade like flexible duct materials.

The disadvantages are that it is harder to install in tight spaces and around obstacles. It requires precise cutting and fitting. It is more expensive than flexible ducting for the materials.

Flexible ducting is made of a wire coil covered with plastic or foil. The interior walls are corrugated. Air flowing over the corrugations creates turbulence, which increases resistance. Flexible ducting is convenient for short connections and tight spaces but should not be used for long runs.

The advantages of flexible ducting include easy installation around obstacles. No precise cutting required. Lower material cost. Readily available.

The disadvantages are higher air resistance, which reduces airflow. Tendency to sag if not supported frequently, creating low spots where water collects. Harder to clean. Shorter lifespan.

The best practice is to use rigid ducting for the main duct run and flexible ducting only for the final connection to the fan or grille. If flexible ducting must be used for the entire run, pull it taut, support it every 2 to 3 feet, and minimize bends. An insulated flexible duct is preferred over uninsulated for any run in an unconditioned space.

Understanding Static Pressure and Duct Resistance

Static pressure is the resistance to airflow in a duct system. Every component adds resistance. The straight duct. The bends. The terminations. The fan must overcome this total resistance to deliver its rated CFM.

A fan's performance curve shows how CFM decreases as static pressure increases. A fan rated at 100 CFM in free air might deliver only 60 CFM at 0.25 inches of water gauge static pressure. The duct system must be designed so the total static pressure at the required CFM is within the fan's capability.

Axial fans produce low static pressure. They are designed for very short duct runs with minimal resistance. A standard wall-mounted axial fan may only overcome 0.1 to 0.2 inches of static pressure. This is enough for the thickness of a wall. It is not enough for a ducted system.

Centrifugal fans produce higher static pressure. They are designed for ducted systems with significant resistance. An inline centrifugal fan might overcome 0.5 to 1.0 inches of static pressure or more. This allows duct runs of 20, 30, or even 50 feet with bends.

As a practical rule, if the total duct run is under 5 feet with no bends, an axial fan can work. If the duct run is longer, or has any bends, use a centrifugal fan.

Duct Insulation: When and Why

Duct insulation prevents condensation. When warm, humid air travels through a duct in a cooler space, the duct wall temperature drops below the dew point of the air inside. Water condenses on the interior duct wall. This water can drip back toward the fan, leak into the ceiling cavity, or pool in low spots and breed mold.

Insulation wraps the duct in a thermal barrier that keeps the duct wall temperature above the dew point. The air inside stays warm. Condensation does not form.

Ducts should be insulated in these situations. When the duct runs through an unconditioned attic that is hot in summer and cold in winter. When the duct runs through a ceiling cavity that is not air-conditioned.

When the duct runs through an exterior wall chase. When the duct runs through a basement or crawl space. When the fan exhausts humid bathroom or kitchen air.

Insulated flexible ducting has a layer of fiberglass insulation between an inner liner and an outer vapor barrier. The insulation is typically R-4 to R-8. Higher R-values provide more thermal resistance. In hot, humid climates like coastal India, a minimum of R-6 is recommended for bathroom exhaust ducts.

Rigid ducting can be wrapped with insulation blanket or sleeve. The insulation must be sealed at all joints to prevent moist air from reaching the cold duct surface.

Proper Duct Support and Slope

Ductwork must be supported to prevent sagging. Sagging ducts create low spots where water collects. They also restrict airflow by reducing the effective cross-sectional area.

Rigid horizontal ducting should be supported every 4 to 6 feet. Supports can be metal strapping, threaded rod with clamps, or purpose-made duct hangers. Vertical ducting should be supported at least every floor level.

Flexible ducting must be supported more frequently, every 2 to 3 feet. It should be pulled taut between supports. The maximum sag between supports should be no more than half an inch per foot of support spacing.

All horizontal duct runs should slope slightly toward the exterior vent termination or toward a drain point. A slope of at least 1 percent, which is a 1 centimeter drop per meter of length, ensures that any condensation flows out rather than pooling. The slope should be continuous. No low spots.

Vertical duct runs that carry moist air should have a drain tee or a condensate trap at the bottom if the duct turns horizontal. This provides a collection point and a drain path for any water that condenses in the vertical section.

Exterior Vent Termination

The exterior termination is where the duct ends and the exhaust air enters the outdoors. Getting this right is critical.

The termination must discharge to open air. It must not discharge into an attic, a soffit vent, a crawl space, a garage, or any other enclosed space. These locations trap moisture inside the building envelope.

The termination must include a backdraft damper. This is a flap or set of louvers that opens when the fan pushes air out and closes by gravity or spring when the fan stops. The damper prevents outdoor air, dust, insects, and rodents from entering the duct when the fan is off.

The termination must include an insect screen. The screen prevents birds, squirrels, rats, and large insects from entering the duct. The screen mesh should be no larger than 6 millimeters. Smaller mesh can clog with lint and dust. Clean the screen periodically.

The termination must be located away from windows, doors, and intake vents. Building codes typically require a minimum separation of 3 feet from any operable window or door.

The termination should be at least 3 feet from any fresh air intake for the HVAC system. The termination should not discharge onto a walkway, patio, or neighbor's property where the exhausted air would be a nuisance.

The termination must be flashed and sealed against rain. A wall termination should have a flange that is caulked to the exterior wall surface. A roof termination must have a storm collar and a roof flashing appropriate for the roofing material.

Common Ductwork Mistakes

Here are the ductwork mistakes I see most frequently.

Reducing the duct diameter is the most common and most damaging mistake. A 150mm fan connected to a 100mm duct. The airflow is strangled. The fan is noisy and ineffective.

Using uninsulated ducting in an unconditioned space. The duct sweats. Water drips. Ceilings stain. Mold grows.

Sagging flexible ducting that creates water traps. The duct was not supported properly. It sags between joists. Water pools. Eventually the water either leaks out or blocks the duct entirely.

Too many bends. The duct snakes around beams, pipes, and electrical conduits. Each bend adds resistance. The total static pressure exceeds the fan's capability.

Venting into an attic or soffit. This is a code violation and a moisture disaster. The warm, humid air condenses on the roof framing. Mold grows. Wood rots. The repair costs far exceed the cost of proper ducting.

No backdraft damper. The duct is an open hole to the outdoors when the fan is off. Hot air enters in summer. Cold air enters in winter. Insects and rodents enter year-round.

Termination too close to a window or intake. The exhausted air is drawn right back into the house. The fan is effectively recycling the same air.

Frequently Asked Questions

Can I use PVC pipe for exhaust ducting?

Yes, for residential bathroom and kitchen exhaust within certain limits. PVC is smooth, rigid, and resistant to moisture. Use Schedule 40 PVC pipe. Ensure the diameter matches the fan outlet. PVC is not suitable for high-temperature exhaust like commercial kitchen hoods.

PVC can become brittle over time when exposed to UV radiation, so it should not be used for exterior portions exposed to sunlight. Check local building codes for any restrictions on PVC ducting.

How long can an exhaust duct be?

The maximum length depends on the fan, the duct diameter, and the number of bends. The fan manufacturer's installation manual specifies the maximum equivalent duct length. As a general guideline, a residential bathroom fan with 150mm ducting should have a maximum run of 25 to 35 feet.

Each 90-degree bend adds 10 to 15 feet of equivalent length. If your required run exceeds the fan's maximum, you need a larger diameter duct or a more powerful fan.

Can I vent two exhaust fans into the same duct?

Not directly. Connecting two fans to a common duct without backdraft dampers will cause one fan to blow air into the other room when only one is running. If a common duct is used, each fan must have a backdraft damper at its connection point.

The common duct must be sized for the combined airflow of both fans running simultaneously. This is a more complex design that should be done by a professional.

Should I tape duct joints?

Yes. All duct joints should be sealed to prevent air leakage. Use aluminum foil tape, not cloth duct tape. Cloth duct tape degrades over time and loses adhesion. Aluminum foil tape is rated for HVAC use and lasts the life of the system. Apply the tape smoothly and press it firmly into place. For rigid metal ducting, mastic sealant is an alternative to tape.

How do I clean exhaust ductwork?

For residential bathroom and kitchen ducts, cleaning is difficult because the ducts are typically 100mm to 150mm in diameter and inaccessible. Prevention is better than cleaning. Use smooth ducting. Maintain a slope for drainage.

Use a grille that is easy to remove and clean. If a duct becomes clogged, it may need to be replaced rather than cleaned. For accessible ducts, a vacuum with a long hose and a brush attachment can remove loose dust.

Can I vent my exhaust fan through the roof?

Yes. Roof venting is common in single-story homes and top-floor apartments. The roof penetration must be properly flashed to prevent leaks. Use a roof vent cap designed for exhaust fans, with a backdraft damper and bird screen.

The duct should be insulated in the attic space. The roof vent should be located away from plumbing vents, chimneys, and other roof penetrations.

---
