Wadbros Inline Duct Fan – Powerful Ventilation for Homes & Commercial Spaces

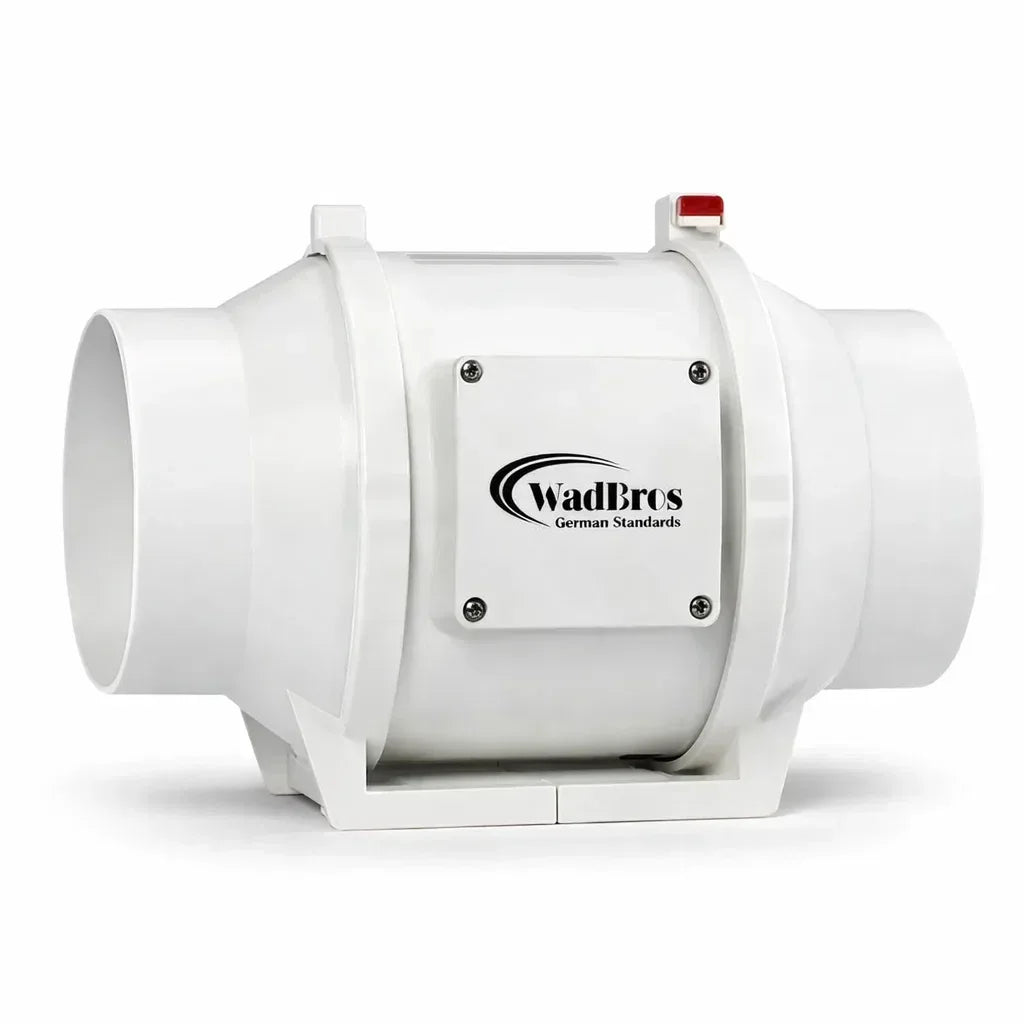

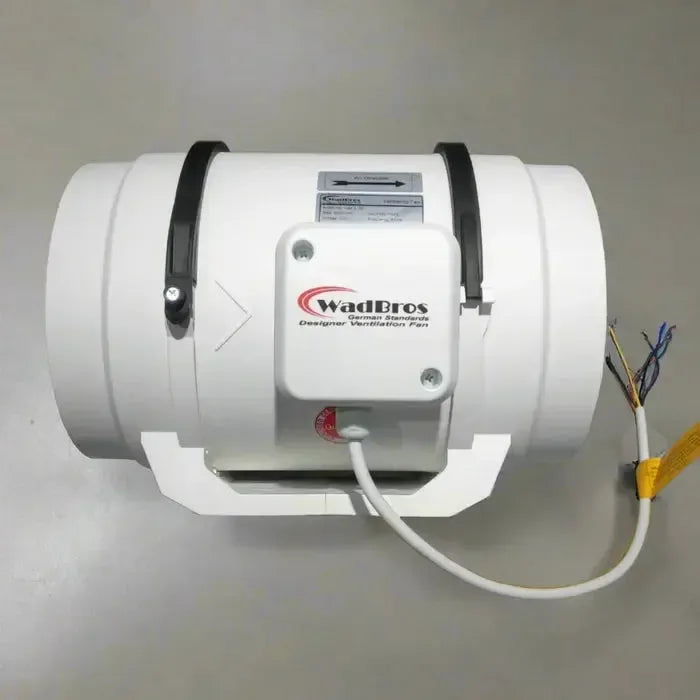

The Wadbros Inline Duct Fan is a high-performance ventilation solution designed to improve indoor air quality in homes, apartments, villas, offices, hotels, restaurants and commercial buildings. Installed inside the ductwork, it delivers powerful airflow while operating quietly, making it ideal for bathrooms, kitchens, laundry rooms and centralized ventilation systems.
Built with a 100% copper winding motor and double ball bearings, the fan is designed for reliable performance, efficient operation and long service life. Available in multiple sizes, it helps remove heat, humidity, smoke and unpleasant odours while maintaining a comfortable indoor environment.
Ventilation Duct Fan Specification:
| Model | WAD IL 4" | WAD IL 6" | WAD IL 8" | WAD IL 10" | WAD IL 12.5" |
| Fan Size (mm) | 100 | 150 | 200 | 250 | 315 |
| Voltage | 220-240 | 220-240 | 220-240 | 220-240 | 220-240 |
| Frequency (hz) | 50-60 | 50-60 | 50-60 | 50-60 | 50-60 |
| Power (W) | 26 | 50 | 70 | 175 | 280 |
| Airflow (m3/h) | 200 | 500 | 850 | 1600 | 2500 |
| Static pressure | 180 | 300 | 350 | 550 | 700 |
| Noise (db) | 30 | 35 | 50 | 60 | 66 |
| RPM | 2450/1800 | 2600/2080 | 2500/2050 | 2500 | 2500 |
Key Features of Wadbros Inline Duct Fans
- 100% Copper Winding Motor – Designed for reliable and durable operation.
- Double Ball Bearing Motor – Supports smooth operation and long-term reliability.
- High Airflow Performance – Available in multiple capacities for different ventilation requirements.
- Compact Duct-Mounted Design – Installs inside the duct system without occupying valuable wall space.
- Quiet Operation – Lower-capacity models are suitable for areas where noise is an important consideration.
- Multiple Sizes Available – Available in 4", 6", 8", 10" and 12.5" models.
- Easy Duct Integration – Designed to connect with compatible round duct systems.
- Low Maintenance – Accessible installation makes routine inspection and cleaning easier.
- Residential & Commercial Use – Suitable for homes, apartments, villas, offices, hotels, restaurants and other commercial spaces.
Where Can You Use an Inline Duct Fan?
Wadbros Inline Duct Fans can be used in residential and commercial ventilation systems where controlled air movement through ductwork is required.
Bathrooms
Inline duct fans can help remove humid air, steam and unpleasant odours from bathrooms when properly connected to an exhaust duct system.
Kitchens
They can be used to help extract heat, smoke, cooking odours and stale air through a suitable duct system.
Homes & Apartments
Inline fans are useful where ventilation needs to be routed through concealed ductwork, particularly in bathrooms, kitchens, utility rooms and other areas with limited direct access to an exterior wall.
Villas & Large Residences
For larger homes with multiple ventilation points, a properly designed duct system can use inline fans to move air efficiently through longer duct runs.
Hotels & Resorts
Inline ventilation systems can support bathroom and service-area ventilation while keeping the fan itself concealed within the ductwork.
Offices & Commercial Spaces
They can be used in offices, retail spaces, restaurants and other commercial environments where ducted air extraction is required.
Hospitals & Clinics
Inline fans may be incorporated into professionally designed ventilation systems for suitable areas where controlled air movement is required.
Warehouses & Industrial Areas
Higher-capacity models can be used for applications requiring greater airflow, subject to proper duct sizing, static-pressure calculations and professional system design.
What Is an Inline Duct Fan?
An inline duct fan is a ventilation fan installed directly within a duct system. Instead of mounting the fan on a wall or directly in a window, the fan is positioned inside the ductwork to move air from one location to another.
Depending on the system design, an inline duct fan can be used for air extraction, air transfer or other ducted ventilation applications.
Because the fan is installed within the duct, it can be concealed above a false ceiling or in another suitable service area. This makes inline duct fans particularly useful for modern homes, villas, offices, hotels and commercial spaces where a clean interior appearance is important.
Inline duct fans are especially useful when air needs to travel through longer duct runs or multiple bends, because the system can be designed around the required airflow and static pressure.
Why Choose an Inline Duct Fan?
An inline duct fan can be a practical choice when conventional wall-mounted exhaust fans are not suitable for the space.
Concealed Installation
The fan can be installed inside the ductwork, making it suitable for interiors where a visible exhaust fan is undesirable.
Flexible Duct Routing
Ductwork allows ventilation points to be positioned away from the fan itself, providing greater flexibility during building design and renovation.
Suitable for Long Duct Runs
When correctly selected according to airflow and static pressure requirements, inline fans can help move air through longer duct systems.
Better Design Flexibility
The fan can be positioned above a false ceiling or in another suitable service area while the visible part of the ventilation system remains discreet.
Multiple Capacity Options
Wadbros offers different sizes and airflow capacities, allowing the fan to be selected according to the requirements of the application.
Inline Duct Fan vs Traditional Exhaust Fan
| Feature | Inline Duct Fan | Traditional Exhaust Fan |
|---|---|---|
| Installation | Inside ductwork | Wall, window or ceiling |
| Fan visibility | Usually concealed | Usually visible |
| Duct routing | Designed for duct systems | Usually limited |
| Long duct runs | Suitable when correctly selected | Generally less suitable |
| Multiple ventilation points | Possible with proper system design | Usually one location |
| Interior appearance | Clean and discreet | Fan remains visible |
| Static pressure consideration | Important | Usually less complex |
| Best suited for | Ducted residential & commercial ventilation | Direct room exhaust |
If you need a conventional wall-mounted ventilation solution, explore our exhaust fan collection.
How to Choose the Right Inline Duct Fan
Choosing the right inline duct fan depends on more than just the duct diameter. The fan should be selected according to the required airflow, duct size, static pressure, noise level, installation conditions and the purpose of the ventilation system.
1. Check the Required Airflow
Airflow is one of the most important factors when selecting an inline duct fan. It is commonly specified in m³/h (cubic metres per hour) or CFM (cubic feet per minute).
A larger space or a ventilation system with higher air-change requirements may require a higher-capacity fan.
2. Match the Duct Diameter
The fan should be compatible with the duct diameter used in the ventilation system. Wadbros Inline Duct Fans are available in:
- 4-inch / 100 mm
- 6-inch / 150 mm
- 8-inch / 200 mm
- 10-inch / 250 mm
- 12.5-inch / 315 mm
Using the correct duct size helps maintain efficient airflow and reduces unnecessary pressure losses.
3. Consider Static Pressure
Static pressure represents the resistance the fan needs to overcome as air moves through the duct system.
Long ducts, multiple bends, filters, grilles, dampers and other components can increase system resistance. Therefore, selecting a fan only by its maximum airflow rating may not be sufficient.
For larger or more complex duct systems, airflow and static-pressure calculations should be carried out before selecting the fan.
4. Consider Noise Level
Noise can be especially important in bedrooms, offices, hotels and other quiet environments.
Check the manufacturer's stated noise level and consider the installation location, duct design and vibration isolation when planning the system.
5. Check Power Consumption
If the fan will operate for many hours each day, power consumption becomes an important consideration.
Compare the rated wattage of different models with their required airflow to select a suitable balance between performance and energy consumption.
6. Consider the Installation Environment
Before purchasing an inline duct fan, check:
- Available installation space
- Duct diameter
- Duct length
- Number of bends
- Required airflow
- Static pressure
- Electrical supply
- Access for maintenance
- Noise requirements
For complex residential or commercial ventilation systems, professional HVAC design is recommended.

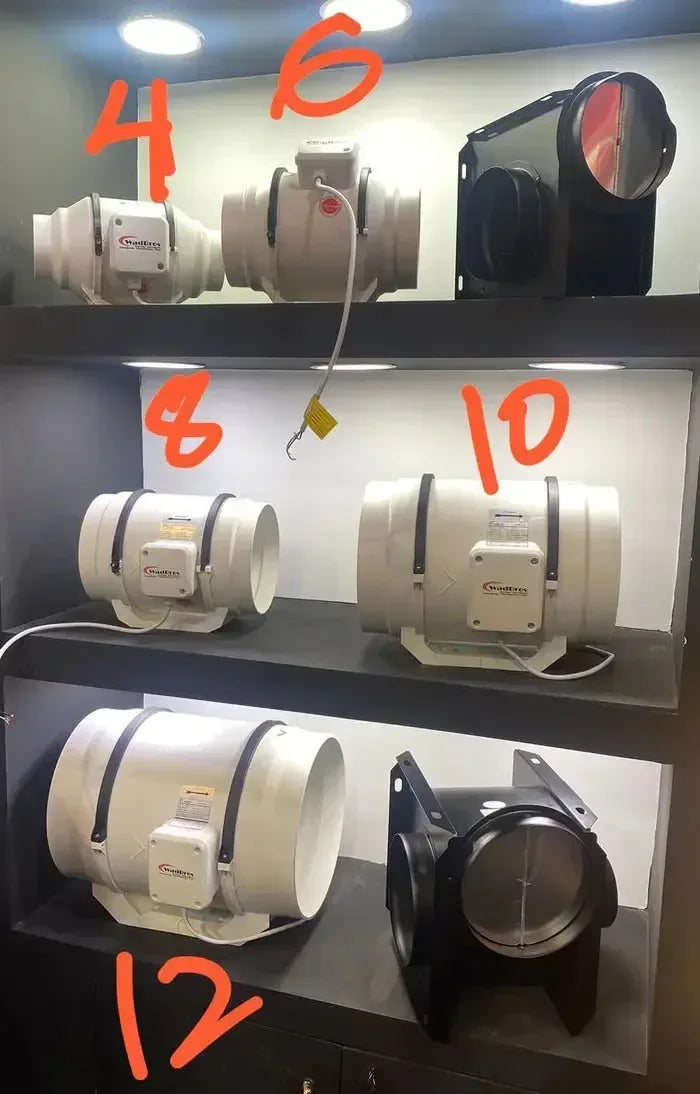

Which Inline Duct Fan Size Should You Choose?
Wadbros Inline Duct Fans are available in multiple sizes to suit different ventilation requirements. The correct model should be selected based on the required airflow and system resistance rather than room size alone.
| Model | Duct Size | Power | Airflow |
|---|---|---|---|
| WAD IL 4" | 100 mm | 26 W | 200 m³/h |
| WAD IL 6" | 150 mm | 50 W | 500 m³/h |
| WAD IL 8" | 200 mm | 70 W | 850 m³/h |
| WAD IL 10" | 250 mm | 175 W | 1,600 m³/h |
| WAD IL 12.5" | 315 mm | 280 W | 2,500 m³/h |
Quick Selection Guide
4-inch inline duct fan: Suitable for smaller ducted ventilation applications where approximately 200 m³/h airflow is required.
6-inch inline duct fan: Suitable for applications requiring approximately 500 m³/h airflow.
8-inch inline duct fan: Suitable for medium-capacity ducted ventilation systems requiring approximately 850 m³/h airflow.
10-inch inline duct fan: Suitable for higher-capacity residential or commercial ventilation applications requiring approximately 1,600 m³/h airflow.
12.5-inch inline duct fan: Suitable for high-airflow applications requiring approximately 2,500 m³/h airflow, subject to proper duct and static-pressure calculations.
Important: These airflow figures represent the stated product ratings. Actual airflow at the outlet can vary depending on duct length, bends, filters, grilles, dampers and other system resistance.
Buying an Inline Duct Fan Online in India
When buying an inline duct fan online, compare the technical specifications rather than choosing a model based only on price.
Before placing an order, check:
- Duct diameter – Make sure the fan matches the planned duct size.
- Airflow capacity – Check the rated m³/h or CFM.
- Static pressure – Important for long or complex duct systems.
- Power consumption – Compare wattage according to the required performance.
- Noise level – Particularly important for bedrooms, offices and hotels.
- Motor construction – Check motor and bearing specifications.
- Warranty – Confirm warranty coverage and service support.
- Application – Make sure the model is appropriate for your intended ventilation system.
- Seller authenticity – Purchase from an authorized or reliable source.
Read our complete guide to inline duct ventilation fans for more information about applications, selection and installation.
Why Buy Wadbros Inline Duct Fans from MR Homes?
MR Homes offers genuine Wadbros ventilation products for residential and commercial applications. Customers can review product specifications, available sizes and technical information before selecting the appropriate model for their project.
For projects involving long duct runs, multiple rooms or higher airflow requirements, our team can help you identify the appropriate product based on the available system information.
Inline Duct Fan Installation Guide
Proper installation is important for achieving the expected airflow, reducing vibration and maintaining reliable operation. The exact installation method depends on the duct layout, fan model and application.
1. Select the Installation Location
Choose a suitable location within the duct system where the fan can be securely mounted and accessed for inspection or maintenance.
For concealed installations, make sure there is sufficient service access above the false ceiling or within the designated service area.
2. Match the Fan and Duct Size
Use a duct diameter that matches the selected inline duct fan. Avoid unnecessary reductions or expansions immediately before or after the fan because they can increase airflow resistance.
3. Connect the Ductwork
Connect the inlet and outlet ducts securely to the fan. Seal the joints properly to minimise air leakage and ensure that the duct system is adequately supported.
4. Minimise Unnecessary Bends
Sharp bends and excessive duct length can increase resistance and reduce the airflow delivered by the system.
Where possible, use a practical duct route with smooth transitions and appropriately sized ducts.
5. Reduce Vibration
Secure the fan properly and use suitable vibration-isolating supports where required. This can help reduce vibration transmitted to the surrounding structure.
6. Complete the Electrical Connection Safely
The electrical connection should be carried out according to the manufacturer's instructions and applicable electrical safety requirements.
For permanent installations, electrical work should be performed by a qualified professional.
7. Test the System
After installation, check that:
- The fan starts and operates correctly.
- There is no unusual vibration or noise.
- Duct connections are secure.
- Air is moving in the intended direction.
- There are no obvious air leaks around the connections.
For larger commercial systems, airflow and static pressure should be checked after installation to confirm that the system is performing as designed.
Installation Note: For residential projects involving complex duct layouts, multiple rooms, long duct runs or commercial applications, professional HVAC design and installation are recommended. Fan selection should consider both required airflow and system static pressure.
Inline Duct Fan Maintenance
Regular inspection helps maintain airflow and reliable operation over time.
Recommended maintenance practices:
- Inspect the fan and duct connections periodically.
- Remove accumulated dust from accessible fan components.
- Check for unusual noise or vibration.
- Inspect electrical connections as part of routine servicing.
- Check duct joints for air leakage.
- Keep the surrounding installation area accessible for servicing.
- Clean filters, grilles or other ventilation components where they are part of the system.
The required maintenance frequency depends on the operating environment. Systems exposed to dust, grease or high levels of airborne particles may require more frequent inspection.
Choose the Right Inline Duct Fan for Your Ventilation System
The Wadbros Inline Duct Fan range provides multiple airflow capacities and duct sizes for residential, commercial and other ducted ventilation applications.
Whether you need ventilation for a bathroom, kitchen, apartment, villa, office, hotel or commercial space, selecting the correct combination of fan size, airflow, duct diameter and static pressure is essential for reliable performance.
Explore the available Wadbros Inline Duct Fan models at MR Homes and choose the configuration that best matches your ventilation requirements.
For projects requiring fresh-air supply with energy recovery, you can also explore our ERV system guide.
Need help selecting a model? Contact MR Homes with your duct size, application and project requirements for guidance on the appropriate fan.
Frequently Asked Questions About Inline Duct Fans
1. What is an inline duct fan?
An inline duct fan is a ventilation fan installed inside a duct system to move air through the ductwork. It can be used for air extraction, air transfer or other ducted ventilation applications depending on the system design.
2. How does an inline duct fan work?
An inline duct fan uses a motor-driven impeller to move air through connected ductwork. The fan can be positioned away from the room being ventilated, allowing the ventilation point to remain discreet while air is moved through the duct system.
3. Can an inline duct fan be used for bathroom ventilation?
Yes. Inline duct fans can be used for bathroom ventilation when properly connected to an exhaust duct system. They can help remove humid air, steam and unpleasant odours from the bathroom.
4. Can an inline duct fan be used in a kitchen?
Yes. Inline duct fans can be used in suitable kitchen ventilation systems to help extract heat, smoke and cooking odours. The fan and duct system should be selected according to the required airflow and operating conditions.
5. Can one inline duct fan ventilate multiple rooms?
A single inline duct fan can be used in a multi-room ventilation system when the ductwork, airflow requirements and system design are appropriate. Proper balancing and airflow calculations are important to ensure that each room receives the required ventilation.
6. What size inline duct fan do I need?
The correct size depends on the required airflow, duct diameter, duct length, number of bends, static pressure and application. Wadbros Inline Duct Fans are available in 4-inch, 6-inch, 8-inch, 10-inch and 12.5-inch sizes with different airflow capacities.
7. Are inline duct fans energy efficient?
Energy consumption depends on the specific model and operating conditions. Wadbros Inline Duct Fans are available in different power ratings, allowing users to select a model according to the required airflow and ventilation application.
8. Are inline duct fans noisy?
Noise depends on the fan model, installation method, airflow, duct design and surrounding environment. The Wadbros range includes models with different rated noise levels, so the appropriate model should be selected according to the application's noise requirements.
9. What is the difference between an inline duct fan and a traditional exhaust fan?
An inline duct fan is installed inside the ductwork and can be positioned away from the ventilation point. A traditional exhaust fan is generally mounted directly on a wall, window or ceiling. Inline fans are particularly useful when concealed ducted ventilation or longer duct runs are required.
10. How do you install an inline duct fan?
An inline duct fan is installed within the duct system and connected to suitable inlet and outlet ductwork. The fan should be securely mounted, duct joints should be sealed, and the electrical connection should follow the manufacturer's instructions. Complex residential and commercial systems should be designed and installed by qualified professionals.
11. How often should an inline duct fan be cleaned?
The maintenance frequency depends on the environment and operating conditions. Inspect the fan, duct connections and surrounding components periodically, and clean accessible components when dust or debris accumulates. Systems exposed to grease or heavy dust may require more frequent maintenance.
12. Can an inline duct fan be installed above a false ceiling?
Yes. Inline duct fans are commonly suitable for concealed installation above a false ceiling when there is adequate space, ventilation access and provision for future maintenance. Ensure that the installation allows safe access to the fan when servicing is required.
13. Can an inline duct fan be used for long duct runs?
Yes, but the fan must be selected according to the resistance of the duct system. Long ducts, bends, filters, grilles and dampers increase static pressure, so fan selection should consider both airflow and static pressure.
14. What is the difference between airflow and static pressure?
Airflow indicates the volume of air a fan can move, commonly expressed in m³/h or CFM. Static pressure represents the resistance the fan must overcome within the duct system. Both factors are important when selecting an inline duct fan.
15. Which Wadbros inline duct fan is best for my project?
The appropriate model depends on your duct diameter, required airflow, static pressure, installation conditions and application. Wadbros Inline Duct Fans are available in several sizes and capacities. For larger or more complex projects, provide your duct layout and requirements to an HVAC professional or the MR Homes technical team for appropriate selection.
Details
This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.
Shipping & Returns
We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.
We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.
