Overview of Inline Duct Fans

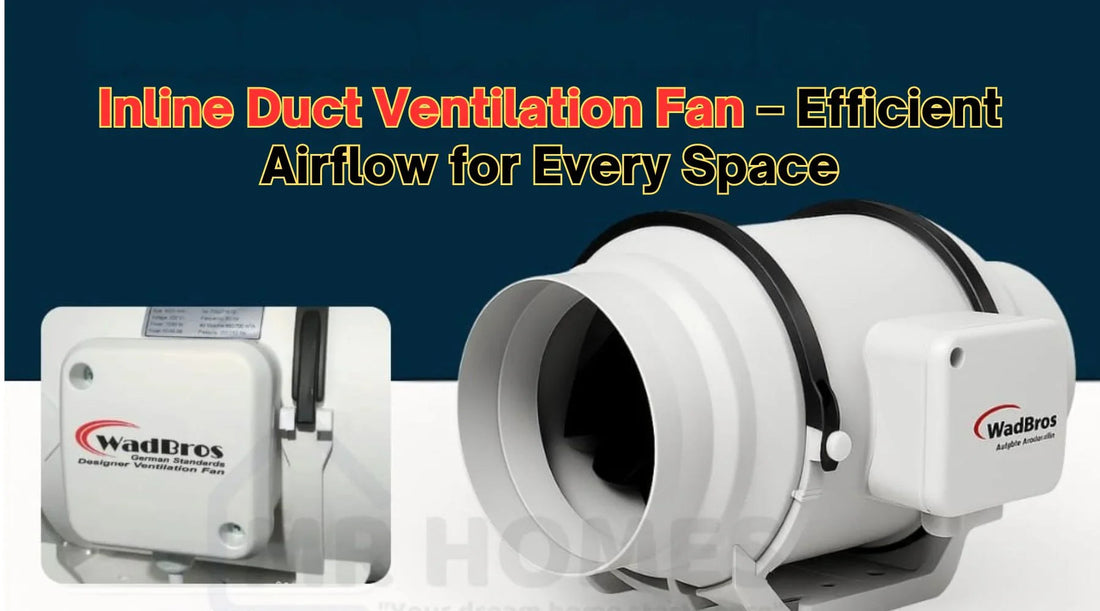

An inline duct fan is a ventilation fan installed inside a duct system to move air from one location to another. Unlike a conventional wall-mounted exhaust fan, the fan itself can remain concealed within the ductwork, making inline fans useful for bathrooms, kitchens, bedrooms, offices, hotels and other spaces where discreet ventilation is required.

Inline duct fans can be used for air extraction, air transfer or fresh-air supply depending on how the ventilation system is designed. Their performance depends not only on the fan's airflow rating but also on duct diameter, duct length, bends, filters, grilles and static pressure.

In this guide, we'll explain how inline duct fans work, where they can be used, how to choose the right size, what airflow and static pressure mean, installation considerations, and the difference between an inline duct fan and a traditional exhaust fan.

Why Choose an Inline Duct Fan?

Inline duct fans are useful when ventilation needs to be routed through ductwork rather than directly through a wall or ceiling. Depending on the system design, they can be used to extract stale air, move air between spaces or supply outdoor air.

Key advantages include:

• Concealed Installation – The fan can be installed within the duct system, helping maintain a clean interior appearance.
• Flexible Ventilation – Suitable for bathrooms, kitchens, utility areas, offices and commercial spaces.
• Efficient Air Movement – Available in different airflow capacities for different ventilation requirements.
• Space Saving – The fan does not need to occupy the main wall or ceiling ventilation opening.
• Suitable for Ducted Systems – Can be incorporated into longer duct runs when the fan is selected according to system resistance.


How Does an Inline Duct Fan Work?

An inline duct fan uses a motor-driven impeller to move air through connected ductwork. The fan is positioned within the duct rather than directly at the room opening.

When the fan operates, air enters through the inlet and is pushed toward the outlet. Depending on the ventilation design, the system can be configured to extract air from a room, transfer air between spaces or introduce outdoor air.

The actual airflow delivered by the system depends on the fan's performance as well as resistance created by the ductwork. Long ducts, sharp bends, filters, dampers and grilles can all increase resistance and reduce the airflow available at the outlet.

This is why selecting an inline duct fan based only on its maximum airflow rating may not produce the expected result. Both airflow and static pressure should be considered when designing a ducted ventilation system.

Airflow and Static Pressure: What Do They Mean?

Two of the most important specifications when selecting an inline duct fan are airflow and static pressure.

Airflow refers to the volume of air the fan can move over a given period. It is commonly expressed in m³/h (cubic metres per hour) or CFM (cubic feet per minute).

Static pressure indicates the resistance the fan can overcome within the ventilation system. Duct length, bends, filters, dampers, grilles and other components can increase system resistance.

A fan with a high maximum airflow rating may not deliver that same airflow once connected to a restrictive duct system. For this reason, fan selection should consider the expected system resistance rather than airflow alone.

Why This Matters?

For a short, simple duct run, a lower-pressure fan may be sufficient. Long duct runs or systems containing multiple bends and components may require a fan capable of operating effectively against higher static pressure.

For larger residential or commercial projects, airflow and static-pressure calculations should be carried out as part of the ventilation design.

Where Are Inline Duct Fans Used?

Inline duct fans can be used in residential, commercial and in specialized ventilation systems. The correct fan depends on the required airflow, duct configuration, operating conditions and ventilation objective.

1. Bathroom Ventilation

Inline duct fans can extract humid air, steam and odours from bathrooms through concealed ductwork. They are particularly useful when a conventional wall-mounted exhaust fan cannot be installed directly on an exterior wall.

2. Kitchen Ventilation

Inline duct fans can help remove cooking heat, smoke and odours when connected to a suitable ducted extraction system. The fan should be selected according to the required airflow and the resistance of the ductwork.

3. Bedrooms and Residential Spaces

For homes where concealed or centralized ventilation is preferred, inline duct fans can be incorporated into a duct network to extract stale air or move air between designated areas.

4. Hotels and Hospitality

Hotels, resorts and guest accommodation can use ducted inline fans for bathrooms, utility areas and other spaces requiring discreet ventilation.

5. Offices and Commercial Buildings

Inline duct fans can support ventilation in offices, retail spaces, restaurants and other commercial environments where ducted air movement is required.

6. Clinics and Healthcare Spaces

Suitable ducted ventilation systems can use inline fans to move or extract air in selected areas of clinics and healthcare facilities. System design should follow the applicable ventilation and safety requirements for the facility.

7. Industrial and Utility Areas

Higher-capacity inline fans can be used in workshops, warehouses and utility areas where additional air movement or extraction is required. Fan selection should account for the operating environment and system resistance.

Inline Duct Fan vs Traditional Exhaust Fan

The main difference is where the fan is installed and how air is routed.

Feature	Inline Duct Fan	Traditional Exhaust Fan
Installation	Inside ductwork	Wall, window or ceiling
Appearance	Can be concealed	Fan is usually visible
Ducted ventilation	Designed for duct systems	Usually direct exhaust
Multiple-room systems	Can be incorporated into suitable systems	Generally intended for individual spaces
Long duct runs	Can be suitable when correctly selected	Usually less suitable
Installation complexity	Requires ductwork	Generally simpler
Best suited for	Concealed and ducted ventilation	Direct room exhaust



Neither type is automatically better for every application. A traditional exhaust fan can be a practical choice for simple direct exhaust, while an inline duct fan is more appropriate when air needs to be routed through ductwork or the fan needs to be concealed.

For a detailed comparison, read our guide to [inline duct fans vs exhaust fans].

How to Choose the Right Inline Duct Fan?

Choosing an inline duct fan should be based on the requirements of the complete ventilation system rather than fan size alone.

Consider the following factors before selecting a model:

1. Required Airflow

Determine how much air needs to be moved through the system. Airflow is commonly expressed in CFM or m³/h.

The required airflow depends on factors such as room size, application, occupancy and the desired ventilation rate.

2. Duct Diameter

The fan outlet and connected ductwork should be appropriately sized. Using an unsuitable duct diameter can increase resistance and affect system performance.

3. Static Pressure

Consider the resistance created by duct length, bends, filters, grilles, dampers and other components.

A fan should have sufficient pressure capability to deliver the required airflow under the expected operating conditions.

4. Duct Length and Layout

Longer duct runs generally create greater resistance. Multiple bends and restrictive components can also reduce airflow.

5. Noise Level

For bedrooms, bathrooms, offices and other quiet environments, check the manufacturer's rated noise level and consider how the fan will be mounted.

6. Power Consumption

Check the rated power consumption of the selected model and consider how many hours the fan will operate each day.

7. Installation Space

Make sure there is enough space to install the fan and provide access for inspection or maintenance, particularly when the fan is installed above a false ceiling.

8. Operating Environment

For kitchens, industrial areas or locations exposed to moisture, dust or grease, ensure that the selected fan is appropriate for the operating environment.

Wadbros Inline Duct Fan Size Guide

Wadbros Inline Duct Fans are available in multiple duct sizes and airflow capacities. The following specifications can be used as a starting point when comparing models.

Model	Duct Size	Power	Airflow
WAD IL 4"	100 mm	26 W	200 m³/h
WAD IL 6"	150 mm	50 W	500 m³/h
WAD IL 8"	200 mm	70 W	850 m³/h
WAD IL 10"	250 mm	175 W	1,600 m³/h
WAD IL 12.5"	315 mm	280 W	2,500 m³/h

These figures are manufacturer specifications. Actual airflow at the outlet can vary depending on duct length, bends, fittings, filters, grilles and system static pressure. For larger or complex ventilation projects, fan selection should be based on the complete duct-system requirements.

Looking for a Wadbros inline duct fan? Explore the available models, specifications and pricing on the Wadbros Inline Duct Fan product page.

Inline Duct Fan Installation

Proper installation is important for achieving the expected airflow, controlling noise and maintaining reliable operation.

1. Select the Correct Duct Size

Match the fan and duct diameter according to the manufacturer's specifications. Avoid sudden reductions or expansions in duct size where possible, as these can increase resistance.

2. Keep the Duct Route Efficient

Minimise unnecessary bends and excessively long duct runs. Every bend, fitting and restriction can add resistance to airflow.

3. Provide Secure Mounting

The fan should be securely supported using suitable mounting arrangements. Where necessary, vibration-isolating supports can help reduce noise and vibration transferred to the surrounding structure.

4. Consider Duct Insulation

For applications where noise control or condensation is a concern, appropriately selected insulated ductwork can improve the overall ventilation system.

5. Allow Maintenance Access

If the fan is installed above a false ceiling or in another concealed location, ensure there is reasonable access for inspection, cleaning and maintenance.

6. Follow Electrical Safety Requirements

Electrical connections should be carried out according to applicable electrical safety requirements and the manufacturer's installation instructions. For fixed electrical installations, use a qualified professional where required.

7. Check Airflow After Installation

After installation, check that air is moving in the intended direction and that the system is operating normally. For larger projects, airflow measurement and commissioning can help verify system performance.

Common Inline Duct Fan Installation Mistakes

Even a high-quality inline fan may not perform as expected if the duct system is poorly designed or installed. Common mistakes include:

• Selecting the fan based only on maximum airflow.
• Using an incorrectly sized duct.
• Installing too many sharp bends.
• Creating unnecessarily long duct runs.
• Blocking the inlet or outlet.
• Installing the fan without adequate support.
• Making the fan inaccessible for maintenance.
• Ignoring filters, grilles or dampers when estimating system resistance.
• Failing to check the direction of airflow.

Tip: For residential projects, selecting the fan and designing the duct route together is usually more effective than choosing the fan first and trying to fit the ductwork around it.

Energy Efficiency of Inline Duct Fans

The electricity consumption of an inline duct fan depends on its motor power, operating speed and running time.

A lower-wattage fan does not necessarily provide better overall efficiency if it cannot deliver the required airflow against the resistance of the duct system. The objective should be to select a fan that provides the required ventilation performance without unnecessary energy consumption.

For example, the Wadbros WAD/IL range includes models with different power ratings and airflow capacities, allowing the fan to be selected according to the requirements of the application.

For systems that operate for many hours each day, consider:

• Required airflow
• Fan power consumption
• Operating hours
• Static pressure
• Motor efficiency
• Required ventilation rate

This approach helps balance airflow performance and electricity consumption rather than choosing a fan based on wattage alone.

Inline Duct Fan Maintenance

Regular inspection and cleaning can help maintain ventilation performance and extend the service life of an inline duct fan.

Recommended maintenance includes:

• Inspecting the fan and duct connections periodically.
• Removing accumulated dust from accessible fan components.
• Checking for unusual vibration or noise.
• Inspecting electrical connections as part of appropriate servicing.
• Checking filters, grilles and dampers where installed.
• Keeping the fan and surrounding area free from unnecessary obstructions.
• Following the manufacturer's maintenance recommendations.

The required maintenance frequency depends on the application and operating environment. Kitchens, workshops and dusty commercial environments may require more frequent inspection than typical residential applications.

When Should You Use an Inline Duct Fan?

An inline duct fan can be a suitable choice when:

• The ventilation opening is away from an exterior wall.
• You want the fan concealed inside ductwork.
• Air needs to be routed through a longer duct.
• Several ventilation points need to be connected to a designed duct system.
• A traditional wall-mounted exhaust fan isn't practical.
• You need controlled air extraction or air movement in a specific area.
• You are designing ventilation for a bathroom, kitchen, office, hotel or commercial space.

For simple direct exhaust through an exterior wall, a conventional exhaust fan may be a more straightforward solution.

Frequently Asked Questions About Inline Duct Fans

1. What is an inline duct fan?

An inline duct fan is a ventilation fan installed within a duct system to move air between a room, duct and outlet. Depending on the system design, it can be used for air extraction, air transfer or outdoor-air supply.

2. Where can inline duct fans be used?

Inline duct fans can be used in bathrooms, kitchens, bedrooms, utility areas, offices, hotels, restaurants, commercial buildings and other spaces requiring ducted ventilation.

3. What is the difference between an inline duct fan and an exhaust fan?

A traditional exhaust fan is usually installed directly on a wall, window or ceiling opening, while an inline duct fan is installed within the ductwork. Inline fans are useful when ventilation needs to be routed through ducts or when the fan needs to remain concealed.

4. Are inline duct fans suitable for bathrooms?

Yes. Inline duct fans can be used for bathroom ventilation to extract humid air, steam and odours through ductwork. The fan should be selected according to the required airflow and duct-system resistance.

5. Can an inline duct fan be used for kitchen ventilation?

Yes. Inline duct fans can be incorporated into suitable kitchen extraction systems to move cooking heat, smoke and odours. For grease-heavy commercial cooking applications, the fan and duct system should be selected specifically for the operating environment.

6. How do I choose the right inline duct fan size?

Consider the required airflow, duct diameter, duct length, number of bends, filters, grilles, dampers and expected static pressure. Fan selection should be based on the complete ventilation system rather than duct diameter alone.

7. What is static pressure in an inline duct fan?

Static pressure represents the resistance that a fan needs to overcome within the ventilation system. Duct length, bends, filters, grilles and dampers can all increase resistance and affect the airflow delivered by the fan.

8. Are inline duct fans noisy?

Noise varies between models and operating conditions. Check the manufacturer's rated noise level before selecting a fan, particularly for bedrooms, bathrooms and offices. Installation, duct design and mounting can also affect perceived noise.

9. Do inline duct fans consume a lot of electricity?

Electricity consumption depends on the fan's rated power and operating hours. Selecting a model that provides the required airflow without unnecessary capacity can help avoid excessive energy consumption.

10. Can an inline duct fan be installed above a false ceiling?

Yes. Inline duct fans are commonly installed in concealed locations such as above false ceilings, provided there is adequate space, proper support, safe electrical installation and reasonable access for maintenance.

11. Can an inline duct fan be used for multiple rooms?

It can be incorporated into a multi-room ventilation system when the ductwork, airflow requirements, balancing and fan capacity are properly designed. A multi-room system should not be created simply by connecting multiple rooms to one fan without considering the system's airflow and pressure requirements.

12. What size inline duct fan is suitable for a home?

There is no single size that is suitable for every home. The appropriate model depends on the room or application, required airflow, duct diameter, duct length and system resistance. The Wadbros range includes multiple sizes for different ventilation requirements.

13. How often should an inline duct fan be cleaned?

Cleaning frequency depends on the application and operating environment. Residential systems may require less frequent cleaning, while kitchen, industrial and dusty environments may require more frequent inspection and maintenance.

14. Can an inline duct fan provide fresh air?

An inline fan can be used in a fresh-air ventilation system when it is configured to draw outdoor air into the building. The fan itself does not automatically provide filtered or conditioned fresh air; filters, ductwork and other components depend on the system design.

15. Where can I buy a Wadbros inline duct fan?

You can explore Wadbros inline duct fan models, specifications and pricing on the MR Homes Wadbros Inline Duct Fan product page.

Final Thoughts

An inline duct fan is a practical solution when ventilation needs to be routed through ductwork rather than exhausted directly through a wall or window.

The right fan should be selected based on airflow, duct diameter, static pressure, duct length, operating environment, noise requirements and power consumption. Simply choosing the fan with the highest CFM rating does not guarantee the best result.

For residential bathrooms and kitchens, compact inline fans can provide discreet ventilation. Larger commercial and industrial applications may require higher-capacity models and professional ventilation design.
