Large exhaust fans, those with blade spans of 12 inches and above, are built for spaces where standard residential fans are simply not enough. These are fans for factory floors, large commercial kitchens, warehouses, banquet halls, gymnasiums, and places of worship.

They move thousands of cubic feet of air per minute and can transform a hot, stuffy, polluted indoor environment into a space where people can actually breathe and work comfortably.

A 12-inch or 300mm exhaust fan typically delivers between 600 and 900 CFM. It is appropriate for large residential kitchens, small commercial kitchens, server rooms, and large bathrooms or utility rooms.

It is the smallest of the large fans and can sometimes run on a standard single-phase household electrical connection, though a dedicated circuit is recommended.

An 18-inch or 450mm exhaust fan typically delivers between 1500 and 2500 CFM. It is used in medium-sized commercial kitchens, workshops, small factories, and large event spaces. These fans almost always require a three-phase electrical connection. Installation involves significant structural work and professional electrical contracting.

A 24-inch or 600mm exhaust fan typically delivers between 3000 and 5000 CFM. It is built for large industrial spaces, big restaurant kitchens, factory floors, and warehouses. These are serious pieces of equipment. They are heavy, loud, require three-phase power, and need professional installation with proper structural support and safety guarding.

The choice between these three sizes depends on your room volume, the nature of the air you are exhausting, and your available electrical infrastructure. This guide walks you through the calculation and the practical considerations.

Introduction

I once visited a medium-sized garment factory in Tirupur that was using eight residential 9-inch exhaust fans to ventilate a cutting floor. The fans were mounted in a row on one wall. All eight were running continuously.

The room was still hot, still stuffy, and still filled with fabric dust. The owner was frustrated. He had spent money on ventilation and it was not working.

The problem was not the number of fans. It was the scale. Eight 9-inch fans moving 250 CFM each gave him a total of 2000 CFM. The room was 3000 square feet with a 12-foot ceiling, so 36000 cubic feet of air.

For adequate ventilation, he needed about 10 air changes per hour, which meant moving 360000 cubic feet per hour or 6000 CFM. His system was delivering one-third of the required airflow. A single 24-inch exhaust fan would have solved the problem more effectively and at a lower installed cost than the eight small fans.

Large exhaust fans are a different category of equipment. The physics is the same. A motor spins blades that push air. But the scale changes everything. The electrical requirements. The structural support. The noise. The safety considerations. The installation complexity. You cannot treat a 24-inch exhaust fan like a big version of a bathroom fan.

This guide compares the three common large exhaust fan sizes and helps you determine which one is right for your space.

When Do You Need a Large Exhaust Fan

Large exhaust fans are specified when the required airflow exceeds what a standard residential fan can deliver. This typically happens in three scenarios.

The room volume is very large. A warehouse, a factory floor, a banquet hall, or a temple hall has a huge volume of air. Moving enough air to achieve meaningful air changes per hour requires a fan that moves thousands of CFM.

The pollutant load is heavy. A commercial kitchen generates intense heat, smoke, and grease. A welding shop generates fumes. A chemical processing area generates vapors. The fan must extract these contaminants quickly enough to keep the space safe for workers.

The exhaust path has high resistance. Long duct runs, multiple bends, or filtration systems create static pressure that a small fan cannot overcome. Large centrifugal fans are needed to push or pull air through these high-resistance systems.

If your space is under 500 square feet and has a standard ceiling height, a residential 9-inch or 12-inch fan may be sufficient. If your space is larger, or if the pollutant load is industrial in nature, you need to look at the larger sizes.

12-Inch Exhaust Fans: Specifications and Applications

A 12-inch or 300mm exhaust fan is the bridge between residential and commercial. It is the largest fan that can sometimes be installed on a single-phase residential electrical connection.

These fans typically deliver between 600 and 900 CFM. High-performance models from industrial brands can push 1000 to 1200 CFM. The motor is usually around 60 to 100 watts. The noise level is typically 50 to 60 decibels, which is noticeable but not deafening.

The typical applications for a 12-inch fan include large home kitchens that do extensive cooking and need more than a 9-inch fan can provide. Small restaurant or dhaba kitchens with light to moderate cooking loads.

Server rooms and electrical equipment rooms that need heat extraction. Large bathrooms or changing rooms in gyms, clubs, or sports facilities. Small workshops with occasional welding or soldering. Prayer rooms or small halls where occupant density is high.

Installation of a 12-inch fan is within the capabilities of a competent electrician and handyman. The wall hole is about 14 to 16 inches in diameter. Core cutting is required. The fan can often be plugged into a standard 15-amp socket if one is available nearby, though a dedicated circuit is better. The fan weighs 5 to 8 kilograms and requires secure mounting with wall plugs rated for the weight.

A 12-inch fan costs between Rs. 2500 and Rs. 5000 depending on the brand, motor quality, and blade material. Industrial brands like Almonard and Khaitan are at the higher end. Consumer brands like Havells and Crompton offer 12-inch models at the lower end.

18-Inch Exhaust Fans: Specifications and Applications

An 18-inch or 450mm exhaust fan is a commercial product. It is not designed for home use. It requires three-phase power in almost all cases. It is heavy, loud, and powerful.

These fans typically deliver between 1500 and 2500 CFM. Some high-performance models approach 3000 CFM. The motor is typically 200 to 500 watts. The noise level is 60 to 70 decibels, which is loud enough that you have to raise your voice to be heard near the fan.

The typical applications include medium-sized commercial kitchens in restaurants and hotels. Small to medium factory floors for general ventilation. Large workshops with welding, grinding, or woodworking.

Gymnasiums and indoor sports facilities. Warehouses up to about 5000 square feet with standard ceiling heights. Large event halls and community centers. Poultry farms and greenhouses.

Installation requires a professional team. The wall hole is about 20 to 22 inches in diameter. The fan weighs 15 to 25 kilograms and needs a structural mounting frame, not just wall plugs.

Three-phase electrical connection must be installed by a licensed electrician. The circuit requires a proper starter, overload protection, and isolation switch. The fan typically must be hardwired, not plugged into a socket.

An 18-inch fan costs between Rs. 8000 and Rs. 20000 depending on the brand, build quality, and whether it is an axial or centrifugal model. The installation cost, including electrical work and structural mounting, can equal or exceed the fan cost.

24-Inch Exhaust Fans: Specifications and Applications

A 24-inch or 600mm exhaust fan is an industrial machine. It moves a staggering amount of air and comes with all the installation and operational considerations of heavy equipment.

These fans typically deliver between 3000 and 5000 CFM. Large industrial models can exceed 6000 CFM. The motor is typically 500 to 1500 watts or more. The noise level is 70 to 80 decibels or higher. Hearing protection may be required for workers in close proximity for extended periods.

The typical applications include large commercial kitchens with heavy cooking loads. Factory floors and manufacturing plants. Large warehouses and logistics centers. Parking garage ventilation. Large assembly halls and auditoriums. Industrial drying and cooling processes.

Installation is a significant project. The wall opening or roof curb must be structurally engineered. The fan weighs 30 to 60 kilograms or more. It requires a crane or lifting equipment for roof installation.

Three-phase power with a dedicated circuit, starter, overload protection, and isolation switch is mandatory. Vibration isolation mounts are required to prevent structural noise transmission. Safety guarding on both intake and exhaust sides is mandatory.

A 24-inch fan costs between Rs. 15000 and Rs. 40000 or more depending on specifications. The total installed cost, including electrical work, structural work, and safety guarding, is typically two to three times the fan cost.

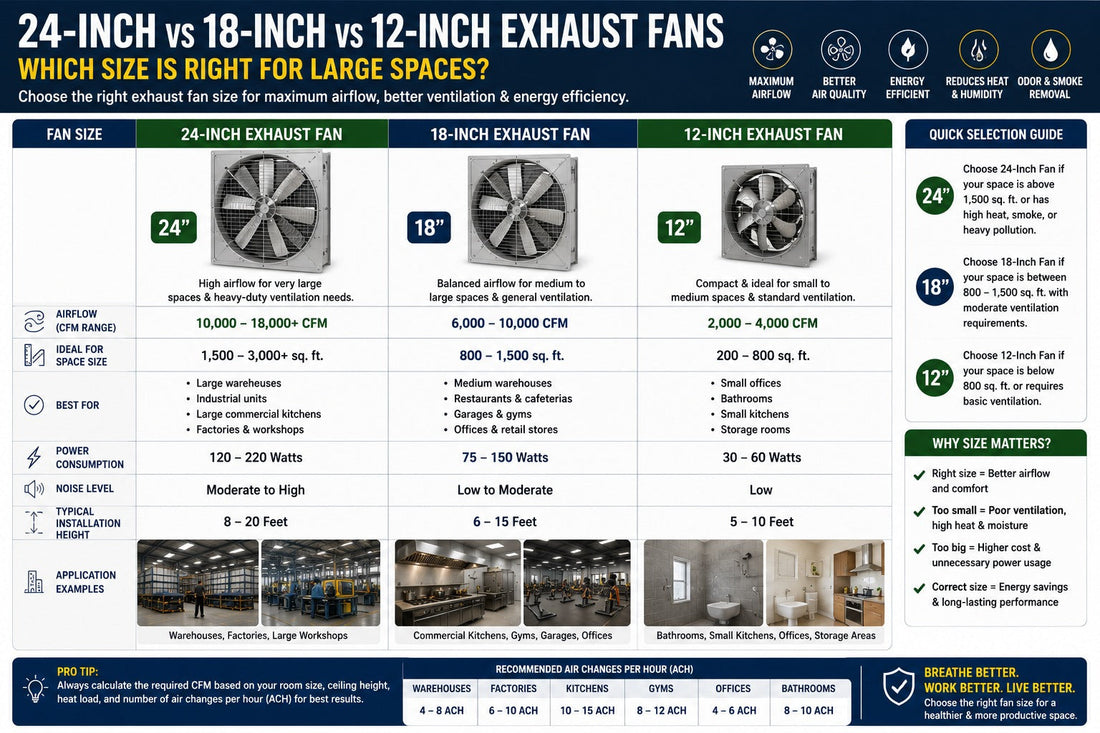

Comparison Table

How to Calculate Your CFM Requirement

For large spaces, you need to calculate by room volume, not just floor area. The formula is straightforward.

First, calculate the room volume. Multiply length by width by ceiling height, all in feet. This gives you cubic feet.

Second, determine the required air changes per hour. This depends on the space type. A commercial kitchen needs 20 to 30 air changes per hour. A factory floor needs 10 to 15. A warehouse needs 6 to 10. A gymnasium needs 8 to 12. A server room needs 15 to 20.

Third, calculate the required CFM. Multiply the room volume by the air changes per hour. Then divide by 60 because there are 60 minutes in an hour.

The formula is: CFM equals Room Volume multiplied by Air Changes Per Hour, all divided by 60.

Let us work through an example. A restaurant kitchen is 30 feet long, 20 feet wide, and 10 feet high. The volume is 6000 cubic feet. A commercial kitchen needs 25 air changes per hour. Multiply 6000 by 25, which gives you 150000 cubic feet per hour. Divide by 60. The required CFM is 2500.

A single 18-inch fan delivering 2500 CFM would meet this requirement. Alternatively, two 12-inch fans delivering 1200 CFM each could work, though the 18-inch single fan is usually more cost-effective and easier to maintain.

Another example. A factory floor is 100 feet long, 50 feet wide, and 15 feet high. The volume is 75000 cubic feet. A factory needs 12 air changes per hour. Multiply 75000 by 12, which gives you 900000 cubic feet per hour. Divide by 60. The required CFM is 15000.

This is a large requirement. It could be met by three 24-inch fans delivering 5000 CFM each, or five 18-inch fans delivering 3000 CFM each. The choice depends on the available wall space, the electrical infrastructure, and the budget.

Electrical, Structural, and Safety Considerations

Electrical

Before purchasing a large exhaust fan, you must confirm your electrical capacity. A 12-inch fan might run on a 15-amp single-phase circuit, but it should be a dedicated circuit to avoid tripping breakers.

An 18-inch or 24-inch fan will almost certainly require a three-phase supply. If your building does not have three-phase power, you must factor in the cost and timeline of getting a three-phase connection from the utility company. This can be a significant project.

The fan circuit must include a properly sized circuit breaker or fuse, a motor starter with overload protection, and an isolation switch located near the fan for maintenance safety. All electrical work must be done by a licensed commercial electrician.

Structural

Large fans are heavy and vibrate. The wall or roof where the fan is mounted must be capable of supporting the static weight plus the dynamic loads from vibration and wind. A structural engineer should assess the mounting location for 18-inch and 24-inch fans.

The fan must be mounted on a steel frame or concrete plinth with vibration isolation pads or springs. Loose mounting leads to excessive noise, structural damage, and premature fan failure.

Safety

Large fans have exposed rotating blades that can cause severe injury or death. Every opening on both the intake and exhaust sides must be covered by a protective grille or wire guard that prevents accidental contact.

The guard must be securely fastened and capable of withstanding reasonable force. In public areas, the guard spacing must be small enough that fingers cannot reach the blades.

Installation and Maintenance

Installation of large exhaust fans should be done by a team that includes a structural contractor for the mounting and wall opening, a licensed electrician for the power connection, and ideally the fan supplier or manufacturer's representative for commissioning.

Maintenance of large fans is more involved than residential fans. The blades and housing must be cleaned regularly. The cleaning interval depends on the environment. A greasy kitchen fan needs monthly cleaning. A dusty factory fan needs quarterly cleaning. A clean warehouse fan might need annual cleaning.

Bearings must be inspected and lubricated according to the manufacturer's schedule. Belt-driven fans need belt tension checked and belts replaced when worn. Motor amperage should be measured annually to detect developing problems. Vibration should be assessed periodically. Increased vibration indicates blade buildup or bearing wear.

Maintenance must be done with the fan electrically isolated. Lockout-tagout procedures should be followed. Only qualified personnel should perform maintenance on large commercial and industrial fans.

Frequently Asked Questions

Can I use multiple smaller fans instead of one large fan?

Yes, within reason. The total CFM is what matters for air exchange. But there are practical limits. Eight small fans require eight wall openings, eight electrical connections, and eight units to maintain. One large fan requires one of everything. The large single fan is usually more cost-effective and easier to maintain. Multiple fans can provide redundancy, which is valuable in critical applications.

Do large exhaust fans work with speed controllers?

Some do, some do not. The motor type determines compatibility with speed control. Single-phase fans may work with voltage-based speed controllers if the motor is designed for it. Three-phase fans may work with variable frequency drives for speed control, but the drive must be compatible with the motor. Check with the manufacturer before attempting speed control.

How loud is too loud for a large exhaust fan?

In a factory, 80 decibels might be acceptable because workers wear hearing protection. In a restaurant dining area, anything above 50 decibels will disturb customers. In a place of worship, the requirement is even stricter. Sound attenuation options include insulated ducting, acoustic louvers, and remotely locating the fan with ducting to the occupied space.

What is the lifespan of a commercial exhaust fan?

A well-maintained commercial fan from a reputable brand should last 10 to 15 years in normal service. Heavy-duty industrial fans can last 20 years or more with proper maintenance, bearing replacements, and motor rewinds as needed.

Can I install a large exhaust fan on the roof instead of the wall?

Yes. Roof-mounted exhaust fans are common in commercial and industrial buildings. They require a roof curb, which is a raised frame that prevents rainwater from entering. The roof structure must be reinforced to support the fan weight and the wind loads. Roof installations must be waterproofed meticulously to prevent leaks.

What safety certifications should I look for?

In India, look for ISI certification for the electrical components. For kitchen exhaust, the fan should be grease-rated and meet fire safety requirements. For hazardous locations, the fan must have the appropriate flameproof or explosion-proof certification from a recognized testing authority. Your local fire department or factory inspectorate can advise on specific requirements for your application.
