Commercial exhaust fans are fundamentally different from residential models. They move much larger volumes of air, run for extended hours, handle heavier pollutant loads, and must comply with safety and building regulations that do not apply to home installations.

A restaurant kitchen exhaust fan might need to move 2000 to 10000 CFM or more, compared to the 250 to 350 CFM of a typical home kitchen fan. An office ventilation system must manage carbon dioxide from hundreds of occupants. An industrial space might need to extract chemical fumes, welding smoke, or combustible dust.

The type of commercial exhaust fan you need depends entirely on what you are exhausting, where the fan will be installed, and what regulations apply to your specific industry. Restaurants need grease-rated exhaust hoods with fire suppression systems.

Offices need fresh air intake and exhaust balanced to maintain positive pressure in clean areas and negative pressure in areas like bathrooms and pantries. Industrial facilities need spark-resistant construction and explosion-proof motors if flammable vapors are present.

This guide is an overview of commercial exhaust fan types and applications. It is not a substitute for professional consultation. Commercial ventilation involves life safety systems, fire codes, and occupational health regulations.

The stakes are high. If you are responsible for ventilation in a commercial space, use this guide to understand the basics, then hire a qualified HVAC engineer or ventilation specialist to design and install your system.

Introduction

I once consulted on a restaurant renovation where the owner had installed a row of residential kitchen exhaust fans above his cooktop line. Nine-inch axial fans, the kind you buy at a hardware store for a home kitchen.

Six of them mounted in a stainless steel hood. He was proud of the cost savings. He had spent about Rs. 12000 instead of the Rs. 2 lakh quote from a commercial kitchen equipment supplier.

The system failed on opening night. The residential fans could not handle the heat, the grease, or the continuous runtime. Within four hours, two motors had seized. The kitchen filled with smoke. The fire alarm triggered.

The restaurant had to close, refund all the bills for the evening, and call a professional to install a proper system. The final cost was significantly higher than the original quote because of the emergency installation timeline and the repairs needed to the damaged hood.

Commercial ventilation is not residential ventilation scaled up. It is a different category entirely. The fans are different. The ductwork is different. The regulations are different. The consequences of getting it wrong are different. A failed bathroom fan at home is an annoyance. A failed kitchen exhaust in a restaurant is a business shutdown.

This guide explains the types of commercial exhaust fans, their applications, and the critical factors to consider when planning a commercial ventilation system.

It covers restaurants, offices, and industrial spaces. It is written to educate, not to replace professional expertise. For any commercial installation, you need a qualified engineer.

How Commercial Exhaust Fans Differ From Residential Models

The differences between commercial and residential exhaust fans go far beyond size. Understanding these differences is essential before you start planning any commercial ventilation project.

Airflow capacity is the most obvious difference. A residential bathroom fan moves 80 to 150 CFM. A residential kitchen fan moves 250 to 350 CFM. A commercial restaurant kitchen exhaust fan starts at around 2000 CFM and can exceed 20000 CFM in large facilities. The motors are larger, the blades are heavier, and the electrical requirements are different. Many commercial fans require three-phase power.

Duty cycle is another key difference. A residential exhaust fan runs for 20 to 30 minutes at a time. A commercial fan may run continuously for 12 to 16 hours a day, six or seven days a week.

The motor must be rated for continuous duty. The bearings must be heavy-duty. The entire assembly must withstand constant operation without overheating or premature wear.

Construction materials are application-specific. A residential fan uses painted metal or plastic. A commercial kitchen fan uses stainless steel or heavy-gauge aluminum.

An industrial fan exhausting chemical fumes might use fiberglass-reinforced plastic or special alloys. A fan handling high-temperature exhaust uses heat-resistant materials throughout.

Safety features are mandatory in commercial applications. Grease exhaust fans for restaurants must be spark-resistant. Fans handling flammable vapors must have explosion-proof motors.

Fans in fire-rated walls must have fire dampers. These are not optional features. They are code requirements backed by legal liability.

Noise levels matter differently. In a restaurant kitchen, noise is a consideration but secondary to performance. In an office building, noise from exhaust fans must be carefully managed to avoid disturbing occupants. Commercial fans often include sound attenuation options like insulated housings and vibration isolation mounts.

Restaurant and Commercial Kitchen Exhaust

Restaurant kitchen exhaust is the most regulated category of commercial ventilation. The combination of heat, grease, smoke, and continuous operation creates hazards that building codes address in detail.

A commercial kitchen exhaust system consists of several components. The exhaust hood, also called a canopy, captures cooking fumes above the appliances. The hood must overhang the cooking surface by a specified margin, typically 6 to 12 inches on all sides. The hood contains grease filters, which are metal baffles that trap grease droplets before they enter the ductwork.

The exhaust fan mounts on the roof or an exterior wall and pulls air through the hood and ductwork. The fan must be rated for grease exhaust. In North American standards, this means UL 762 certification.

In India, the relevant standards are set by the Bureau of Indian Standards and local fire codes. A grease-rated fan has a sealed motor compartment, a drain for grease runoff, and a hinged access panel for cleaning.

The ductwork must be constructed of welded steel, typically 16-gauge or thicker. The duct joints must be welded, not screwed or taped. The duct must slope toward the hood so grease drains into a collection cup rather than pooling in the duct.

The duct must be accessible for cleaning along its entire length. Flexible ducting is never permitted in commercial kitchen exhaust.

The fire suppression system is mandatory. This is a network of nozzles inside the hood and duct that discharge a wet chemical agent if a fire is detected. The system is triggered by fusible links that melt at a specific temperature. The suppression system must be inspected and certified annually.

The makeup air system replaces the air exhausted by the hood. A kitchen exhausting 5000 CFM needs 5000 CFM of fresh air entering the space. Without it, the kitchen goes negative.

Air rushes in through the dining room, bringing cooking odors with it. Doors become difficult to open. Most critically, gas appliances can backdraft, pulling carbon monoxide into the kitchen instead of exhausting it.

The sizing calculation for a commercial kitchen hood depends on the type and output of the cooking equipment beneath it. A solid fuel tandoor requires much higher exhaust rates than an electric steamer.

A heavy frying station needs more capture area and airflow than a soup warmer. The calculation is done by a kitchen ventilation engineer based on the specific equipment layout.

Office and Commercial Building Ventilation

Office ventilation is about occupant health, comfort, and productivity. The contaminants are primarily carbon dioxide from human respiration, volatile organic compounds from furniture and cleaning products, and localized pollutants from bathrooms, pantries, and copy rooms.

The fresh air requirement for offices is defined by ASHRAE Standard 62.1, which is widely referenced internationally. The standard requires 5 CFM per person plus 0.06 CFM per square foot for office spaces.

In practical terms, this translates to about 15 to 20 CFM per person in a typical office. A 100-person office needs 1500 to 2000 CFM of fresh air supply.

Exhaust fans in offices are located in specific areas. Bathrooms need exhaust at a rate of 50 to 70 CFM per fixture. Pantries and break rooms need exhaust to remove cooking odors and moisture.

Copy rooms and printer stations need exhaust to remove ozone and toner particles. Janitor closets need exhaust to remove chemical fumes from cleaning products.

The building is typically maintained at slightly positive pressure relative to the outdoors. This prevents unfiltered outdoor air from entering through gaps and doors. Bathrooms and pantries are maintained at negative pressure relative to adjacent office areas, so odors do not migrate into work spaces.

Office exhaust fans are typically inline centrifugal fans mounted in the ceiling void or on the roof. They are selected for quiet operation. They are connected to ductwork that runs to individual exhaust grilles in each bathroom and service space. The fans often run continuously during occupied hours.

Industrial and Factory Exhaust Systems

Industrial exhaust covers a vast range of applications. Each type of industrial contaminant requires a specific fan design.

For general factory ventilation, the goal is to remove heat, humidity, and stale air. Large axial fans mounted in walls or on roofs provide high-volume, low-pressure air exchange. These fans might move 20000 to 50000 CFM each.

For dust collection, the system captures airborne dust from woodworking, metal grinding, or other manufacturing processes. The fan must handle abrasive particles. The impeller must be self-cleaning to prevent buildup that causes imbalance.

A dust collector with filters or cyclones is installed between the dust source and the fan to capture particles before they reach the fan.

For fume extraction, the fan removes chemical vapors from plating shops, laboratories, or chemical processing areas. The fan materials must be compatible with the specific chemicals.

Fiberglass-reinforced plastic fans resist many acids. Stainless steel fans handle a range of corrosive environments. The fan motor must be outside the airstream if the fumes are corrosive or flammable.

For high-temperature exhaust, the fan handles air at temperatures above what a standard motor can tolerate. Heat-resistant fans use special alloys for the impeller and housing. The motor is mounted outside the hot airstream with a shaft and bearing assembly that isolates it from the heat.

For combustible dust or flammable vapor exhaust, the fan must be spark-proof. This means the impeller and housing are constructed of non-sparking materials like aluminum or brass. The motor is explosion-proof with sealed electrical connections. The entire assembly is designed to prevent any spark from igniting the airborne material.

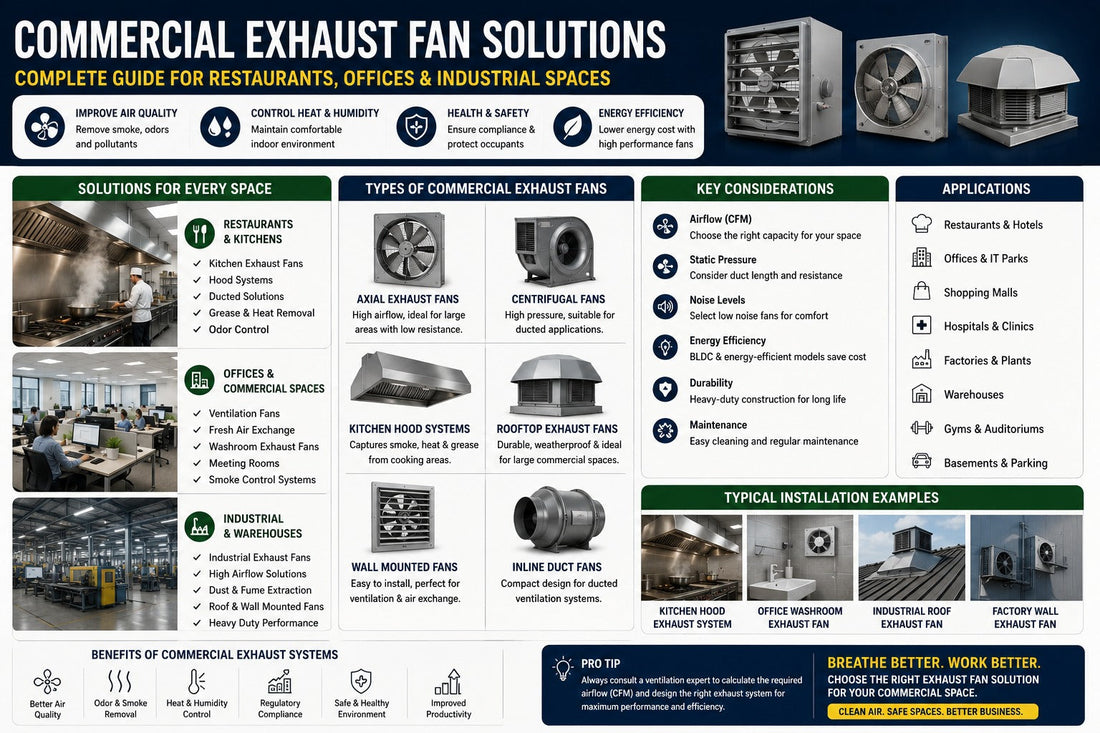

Types of Commercial Exhaust Fans

Upblast Roof Exhaust Fans

These are the most common type for restaurant kitchens. The fan mounts on the roof with the exhaust discharging vertically upward. The motor is above the airstream or isolated from it. The housing includes a grease drain. The vertical discharge keeps odors and grease away from neighboring properties.

Centrifugal Inline Fans

These mount inside the ductwork, typically in a ceiling void or mechanical room. They are used in office buildings, hospitals, and other facilities where rooftop space is limited or the exhaust must travel a significant distance. They handle high static pressure and can move air through long duct runs.

Axial Wall Exhaust Fans

Large axial fans mounted in exterior walls provide general ventilation for factories, warehouses, and large commercial spaces. They move high volumes of air at low static pressure. They are relatively inexpensive but do not handle duct resistance well.

Tube Axial and Vane Axial Fans

These are axial fans with a cylindrical housing and guide vanes that improve efficiency. They are used in parking garage ventilation, tunnel ventilation, and industrial applications requiring high airflow in a compact space.

Sidewall Propeller Fans

Simple, direct-drive fans mounted in wall openings. Used for general ventilation in warehouses, gymnasiums, and agricultural buildings. Low cost, high airflow, minimal ductwork.

Makeup Air: The Critical Balance

Every cubic foot of air exhausted from a commercial space must be replaced. This is makeup air. The failure to provide adequate makeup air is one of the most common and most serious errors in commercial ventilation design.

In a restaurant, insufficient makeup air causes the kitchen to go negative. Air rushes in through the dining room, carrying cooking odors and noise. Exterior doors become difficult to push open. The exhaust fan performance drops because it is fighting a vacuum. Gas appliances backdraft, pulling combustion products into the kitchen.

Makeup air can be supplied through a dedicated makeup air unit. This is a fan that brings outdoor air into the space. In hot climates, the makeup air should be tempered, meaning cooled or at least filtered. Blowing 45-degree outdoor air directly into a kitchen in summer is uncomfortable for staff and can affect food quality.

In offices, makeup air is supplied by the HVAC system's fresh air intake. The system is balanced so supply and exhaust are approximately equal, with a slight positive bias to keep the building pressurized.

In industrial spaces, makeup air is often supplied by large intake louvers or wall-mounted supply fans. In very large factories, the building itself may have enough natural leakage to provide makeup air without a dedicated supply fan. But this should be confirmed by an engineer, not assumed.

Regulations and Compliance

Commercial ventilation systems must comply with a web of regulations. The specific requirements depend on the location, the type of business, and the nature of the exhaust.

In India, restaurant kitchen exhaust must comply with the National Building Code and local fire department regulations. The fire suppression system is inspected and certified annually. The grease exhaust ductwork must be cleaned at intervals specified by code, typically every three to six months depending on cooking volume.

Offices must comply with occupational health and safety regulations regarding indoor air quality. The fresh air supply rate must meet the ASHRAE 62.1 standard or the local equivalent.

Industrial facilities must comply with factory regulations and environmental emission standards. Exhaust that contains regulated pollutants may require scrubbing or filtration before discharge. The discharge point must be located and oriented to avoid re-entrainment into the building or exposure to neighboring properties.

All commercial electrical work must be done by a licensed electrician. The fan installation must comply with the electrical code. In hazardous locations, the wiring methods and equipment must be rated for the specific hazard class.

Maintenance Requirements

Commercial exhaust fans require more frequent and more thorough maintenance than residential fans. The maintenance schedule is often dictated by code or by insurance requirements.

Restaurant kitchen exhaust fans need quarterly cleaning at minimum. The fan blades, housing, and drain must be cleaned of grease buildup. The ductwork must be inspected and cleaned professionally every three to six months.

The grease filters in the hood must be cleaned weekly, or daily in high-volume kitchens. The fire suppression system must be inspected and certified annually.

Office exhaust fans need less frequent attention. Filters, if present, should be changed quarterly. The fan blades and housing should be inspected annually. Ductwork should be inspected every two to three years for dust buildup and cleaned if necessary.

Industrial exhaust fans have maintenance schedules determined by the material they handle. Dust collection fans need frequent inspection because abrasive dust wears the impeller. Chemical fume fans need inspection for corrosion. High-temperature fans need bearing lubrication and alignment checks.

All commercial fans should be inspected for vibration, unusual noise, and motor amperage draw at least annually. Vibration indicates imbalance from buildup or mechanical wear. Increased amperage draw indicates the motor is working harder, which may signal bearing problems or airflow restrictions.

Frequently Asked Questions

Can I use residential exhaust fans in my small restaurant?

No. Residential fans are not rated for grease exhaust, are not built for continuous duty, and do not meet fire code requirements. Using them in a commercial kitchen is a code violation and a fire hazard. Your insurance may not cover a fire caused by non-compliant equipment.

How do I calculate the exhaust CFM for my restaurant kitchen?

The calculation depends on the type, size, and heat output of your cooking equipment. It is not a simple square footage multiplier like residential kitchens. A ventilation engineer uses the equipment specifications and the hood manufacturer's data to determine the required CFM. Do not attempt this calculation yourself for a commercial kitchen.

What is the difference between a grease fan and a standard exhaust fan?

A grease fan has a sealed motor compartment, a grease drain, a hinged access door for cleaning, and is constructed to contain a grease fire within the fan housing. A standard exhaust fan has none of these features and is unsafe for restaurant use.

How often should commercial kitchen ductwork be cleaned?

The National Fire Protection Association standard NFPA 96 recommends cleaning every three to six months depending on cooking volume. High-volume operations like tandoor and frying stations may need more frequent cleaning. Your local fire code specifies the exact interval. Failure to clean ducts is a leading cause of restaurant fires.

Do I need a makeup air unit for my office?

Most modern offices are built tight enough that a dedicated fresh air intake is necessary. The HVAC system typically includes a fresh air damper that brings in outdoor air. An HVAC engineer can measure your building's actual air exchange rate and determine if a dedicated makeup air unit is needed.

What permits do I need for a commercial exhaust fan installation?

At minimum, you will need an electrical permit. Depending on the type of business and the local regulations, you may also need a building permit for structural modifications, a fire department review for kitchen exhaust systems, and an environmental permit if the exhaust contains regulated pollutants. Your contractor should handle the permitting process.

Final Recommendations

Commercial ventilation is not a do-it-yourself project. The equipment is specialized. The regulations are strict. The consequences of failure are serious.

If you are planning a restaurant kitchen, hire a kitchen ventilation engineer or a contractor who specializes in commercial kitchen exhaust. They will design the system, obtain the necessary permits, install compliant equipment, and arrange for the fire suppression system certification.

If you are planning an office ventilation system, hire an HVAC engineer. They will calculate the fresh air requirements, design the exhaust and supply system, and ensure the building maintains proper pressure relationships.

If you are planning an industrial exhaust system, hire an engineer with experience in your specific industry. The material being exhausted determines the fan type, the ductwork materials, and the safety features required. There is no universal industrial exhaust fan.

This guide provides an overview. It helps you understand the terminology and the considerations. It is not a design manual. Use it to have informed conversations with the professionals you hire.
