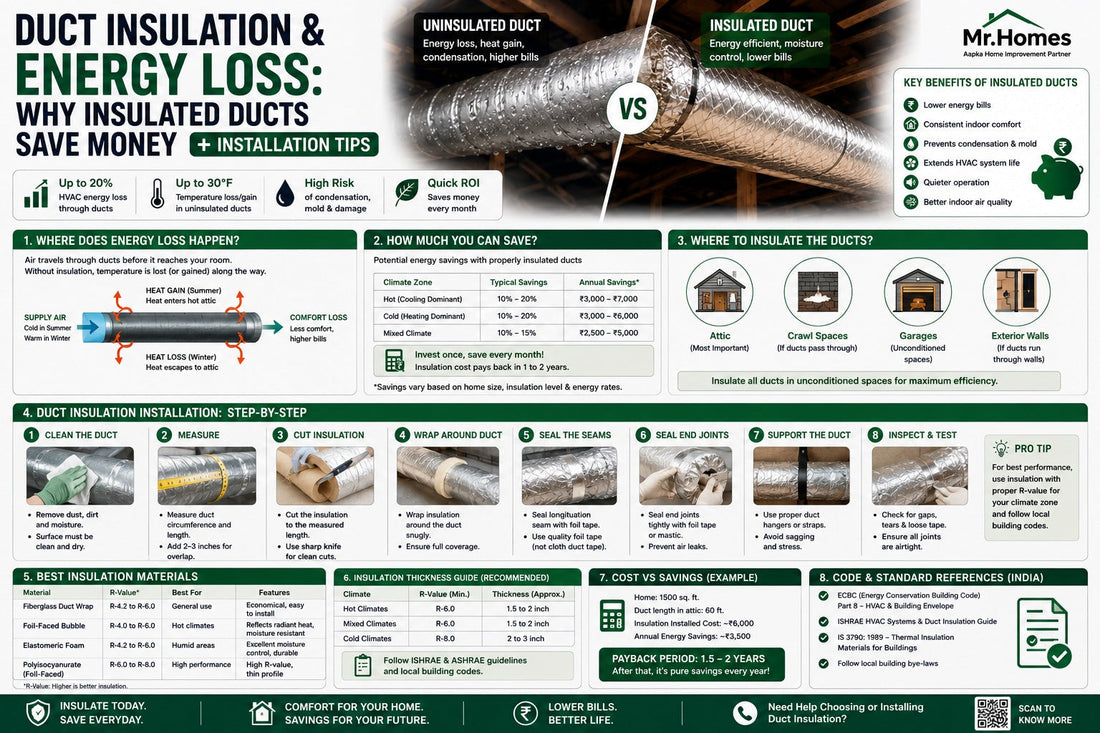

Insulating your exhaust fan ductwork is one of the most cost-effective energy upgrades you can make. An uninsulated duct running through a hot ceiling cavity or an unconditioned attic acts like a radiator.

In summer, the hot air surrounding the duct heats the cooler exhaust air inside, transferring heat back into your air-conditioned home. In winter, the opposite happens. The warm, humid exhaust air hits the cold duct wall, causing condensation that drips and damages your ceiling.

An insulated duct wraps the air path in a thermal barrier. The insulation resists heat transfer in both directions. The exhaust air stays closer to room temperature until it exits the building.

Your air conditioner does not have to work against the additional heat load. In winter, the duct wall stays warm enough to prevent condensation. The result is lower energy bills, no water damage, and a ventilation system that actually performs as designed.

The cost to insulate a typical residential exhaust duct is modest. Insulated flexible ducting costs slightly more than uninsulated. For rigid ducting, an insulation wrap is an additional material and labor expense.

The payback period from energy savings alone is typically 2 to 5 years. When you factor in the avoided cost of repairing water damage from condensation, the payback is immediate.

This guide explains the science of duct heat transfer, the types of duct insulation available, and how to install insulated ductwork correctly.

Introduction

I was called to a home in Kochi last monsoon. The homeowner had a persistent water stain on the bathroom ceiling, directly below the exhaust fan duct. The duct ran through the ceiling cavity, which was not air-conditioned.

The bathroom fan was used daily. The duct was a standard uninsulated flexible duct, the silver foil type you find in every hardware store.

What was happening was simple physics. The bathroom air was warm and humid from showers. The ceiling cavity was cooler because of the air conditioning in the rooms below. When the warm, humid exhaust air hit the cooler duct wall, the moisture condensed.

Water droplets formed on the inside of the duct. The duct sagged slightly between supports. The water pooled in the low spot. Eventually, it found a pinhole leak and dripped onto the ceiling below.

We replaced the uninsulated duct with an insulated flexible duct of the same diameter. The insulation kept the duct wall warm. The condensation stopped immediately. The total material cost was about Rs. 400 more than the uninsulated duct would have cost.

The repair of the water-damaged ceiling, had it been allowed to continue, would have been thousands.

Duct insulation is not an optional upgrade for exhaust fans in unconditioned spaces. It is a requirement for proper operation. This guide explains why and how to do it right.

The Physics of Duct Heat Transfer

Heat moves in three ways. Conduction, convection, and radiation. In a duct, all three are at work.

Conduction is the direct transfer of heat through the duct material. The hot air outside the duct touches the metal or plastic duct wall. The heat conducts through the wall to the cooler air inside. This raises the temperature of the exhaust air before it leaves the building.

Convection is the transfer of heat by air movement. Air currents in the ceiling cavity or attic carry heat to the duct surface. The moving air continuously supplies new heat, maintaining the temperature difference.

Radiation is the transfer of heat by electromagnetic waves. The hot roof deck radiates heat down onto the duct. The duct absorbs this radiant energy and warms up.

Insulation addresses all three mechanisms. The insulation material traps still air in tiny pockets. Still air is a poor conductor of heat. This resists conduction. The insulation surface blocks convection by preventing air movement directly against the duct wall.

The insulation's outer surface, particularly if it has a reflective foil facing, reflects radiant heat away from the duct.

The result is that the temperature of the air inside the duct changes very little as it travels from the room to the exterior vent. The energy used to condition that air in the first place is not wasted.

Condensation: The Hidden Threat

Condensation occurs when air is cooled below its dew point. The dew point is the temperature at which the air can no longer hold all its moisture as vapor. The excess moisture condenses into liquid water.

In an exhaust duct, the air is often warm and humid. Bathroom air after a shower is at or near 100 percent relative humidity. Kitchen air during cooking is also humid. When this air enters a duct that is cooler than its dew point, condensation forms on the inside duct wall.

The condensation problem is worst in two situations. In summer, when air-conditioned exhaust air meets a hot duct in the ceiling cavity. This is less common because the temperature difference is usually smaller. In winter or during the monsoon, when warm, humid exhaust air meets a cold duct. This is the classic scenario that causes water damage.

Insulation prevents condensation by keeping the inside duct wall temperature above the dew point of the air inside. The insulation shifts the temperature gradient. The cold outside air cools the insulation surface, not the duct surface. The duct wall stays warm. The air inside does not reach its dew point. No condensation forms.

Energy Loss Through Uninsulated Ducts

The energy loss through an uninsulated duct is measurable and significant over time.

Consider a bathroom exhaust fan running for 1 hour per day. It moves 100 CFM of air. In summer, that air has been cooled and dehumidified by the air conditioner. The energy embedded in that conditioned air is being thrown away.

That is the purpose of exhaust. But an uninsulated duct adds insult to injury. It heats the exhaust air as it travels through the hot ceiling cavity. Some of that heat conducts back through the duct wall and into the building. The air conditioner must remove this additional heat.

The exact energy loss depends on the duct length, the temperature difference, the duct material, and the airflow rate. For a typical 10-foot run of 150mm uninsulated flexible duct in a ceiling cavity 20 degrees hotter than the exhaust air, the heat gain is roughly 500 to 1000 BTUs per hour.

This is a small number in isolation. Over a year of daily use, it adds up to 150 to 300-kilowatt hours of additional air conditioning load. At Rs. 8 per unit, that is Rs. 1200 to Rs. 2400 per year. Multiply by the 10-year life of the duct, and the energy cost exceeds the cost of the insulated duct by a factor of 5 or more.

This calculation only accounts for the direct energy loss. It does not include the cost of repairing condensation damage. When that is factored in, the case for insulation becomes overwhelming.

Types of Duct Insulation

Several types of duct insulation are available for residential exhaust applications.

Insulated flexible ducting is the most common and easiest to install. It consists of an inner liner, a layer of fiberglass insulation, and an outer vapor barrier jacket. All three layers are integrated into a single product. The inner liner is typically perforated or solid plastic or foil. The insulation is fiberglass wool.

The outer jacket is foil or vinyl. Insulated flexible ducting is available in standard diameters from 100mm to 300mm and in lengths of 5 to 10 meters. It is ideal for short residential exhaust duct runs.

Fiberglass duct wrap is insulation that is wrapped around rigid ducting. It comes in rolls. The insulation is fiberglass blanket with a foil or vinyl facing that serves as the vapor barrier.

The wrap is cut to size, wrapped around the duct, and secured with foil tape and mechanical fasteners. This is the standard method for insulating long runs of rigid ductwork.

Reflective foil insulation is a thin, multi-layer product that uses reflective surfaces to reduce radiant heat transfer. It is less effective than fiberglass for resisting conductive heat transfer but is useful in applications where space is limited and the primary heat source is radiation from a hot roof deck. It is often used in combination with fiberglass insulation.

Closed-cell foam insulation is a rubber or polyethylene foam product that is flexible, durable, and has good insulation properties. It is more expensive than fiberglass but is easier to install in tight spaces and has a built-in vapor barrier. It is commonly used for refrigerant lines and is sometimes used for small exhaust ducts.

Understanding R-Values

The R-value is a measure of thermal resistance. The higher the R-value, the better the insulation resists heat flow.

For exhaust fan ducts in unconditioned spaces in hot, humid climates like coastal India, a minimum of R-6 is recommended. This provides adequate resistance to prevent condensation under most conditions. In cooler climates or for ducts carrying very humid air, R-8 is preferred.

The R-value of insulated flexible ducting is determined by the thickness of the insulation layer. A 1-inch thick insulation layer typically provides about R-4. A 2-inch layer provides about R-8. Check the manufacturer's specifications for the exact R-value.

Fiberglass wrap insulation is available in various thicknesses. A 2-inch wrap provides approximately R-8. A 3-inch wrap provides approximately R-11.

The R-value is additive. If you wrap a duct with R-4 insulation and then add an additional R-4 layer, you achieve R-8. However, the vapor barrier must be on the outside of the total assembly. A second layer of insulation should not have a vapor barrier if it is installed over an existing vapor barrier.

Installation Best Practices

Installing insulated ductwork correctly is as important as choosing the right insulation. Poor installation creates gaps, compression, and thermal bridges that defeat the purpose.

The insulation must be continuous from the fan housing to the exterior vent termination. There should be no gaps. Every inch of the duct that is exposed to unconditioned air must be insulated.

Joints between sections of insulated flexible duct must be sealed. The inner liner is connected with a mechanical connector and sealed with foil tape. The insulation is pulled over the joint. The outer vapor barrier is sealed with foil tape. The seal must be airtight and vapor-tight.

The insulation must not be compressed. Compressed insulation loses its thermal resistance. The R-value depends on the trapped air pockets within the insulation material. Crushing the insulation reduces these air pockets and reduces the R-value. When securing insulation to a duct, do not overtighten the fasteners.

The vapor barrier must face the correct direction. The vapor barrier is the foil or vinyl facing on the outside of the insulation. It must be on the outside of the duct insulation, facing the unconditioned space. The purpose is to prevent moisture from the unconditioned space from penetrating the insulation and reaching the cold duct surface.

All seams in the vapor barrier must be sealed with foil tape. A pinhole in the vapor barrier allows moist air to reach the duct surface. Condensation forms at that pinhole. The insulation becomes wet and loses its effectiveness. The pinhole grows over time. The seal must be complete.

The duct must be properly supported. Insulated flexible ducting must be supported every 1.5 to 2 meters with broad straps that do not compress the insulation. Narrow wire hangers cut into the insulation and create compression points. Rigid ducting must be supported every 2 to 3 meters.

Common Insulation Mistakes

Here are the duct insulation mistakes I see most frequently.

The duct is not insulated at all. This is the most common situation in Indian homes. The builder installed uninsulated flexible ducting because it was cheaper. The homeowner may not even be aware that insulation is needed.

The insulation does not cover the entire duct. The final few feet near the exterior vent are left uninsulated because it is difficult to access. This creates a cold spot where condensation forms.

The vapor barrier is installed facing inward. This is a common error when insulation wrap is installed by someone unfamiliar with the principles.

Moisture from the outside air penetrates the insulation and condenses on the cold duct surface, inside the insulation layer. The insulation becomes saturated. Mold grows inside the insulation, hidden from view.

Insulation joints are not sealed. Gaps between insulation sections create cold spots. Condensation forms at each gap. The duct sweats at multiple points along its length.

The insulation is compressed at supports or bends. The R-value is reduced at these points. If the compression is severe enough, condensation forms.

Insulation that became wet at some point and was never replaced. Wet insulation has almost no thermal resistance. It must be replaced, not dried out.

Payback and Cost Analysis

The financial case for duct insulation is strong.

The cost of insulated flexible ducting is approximately 30 to 50 percent higher than uninsulated ducting of the same diameter. For a typical 10-foot run of 150mm duct, the additional material cost is approximately Rs. 300 to Rs. 500.

If you are installing rigid ducting and wrapping it with fiberglass insulation, the insulation wrap costs approximately Rs. 100 to Rs. 200 per linear foot including labor.

The energy savings, as calculated earlier, can be Rs. 1200 to Rs. 2400 per year for a single duct in a hot climate with daily use. The payback period on the additional insulation cost is less than one year.

The avoided cost of condensation damage is harder to quantify but potentially much larger. Repairing a water-stained ceiling costs several thousand rupees. Repairing mold-damaged drywall or plaster costs more.

Replacing insulation that has been saturated by condensation costs more still. The insulation premium is cheap insurance against these costs.

For a new installation, there is no rational reason to use uninsulated ducting in an unconditioned space. The incremental cost is small. The lifetime benefit is large.

Frequently Asked Questions

Do I need to insulate the exhaust duct if it runs through an air-conditioned ceiling?

If the entire duct run is within the air-conditioned envelope of the building, insulation may not be necessary because the air around the duct is the same temperature as the air inside. However, if the duct runs through a ceiling cavity above a false ceiling that is not directly air-conditioned, the cavity temperature may be significantly different from the room temperature. Insulation is recommended if you are unsure.

Can I use regular fiberglass insulation batts to wrap my duct?

Yes, but with caveats. Batt insulation does not have an integrated vapor barrier suitable for duct wrapping. You would need to install a separate vapor barrier over the batt. Insulation batts are not designed to be compressed around a curved duct surface without losing R-value. Dedicated duct wrap is manufactured for this purpose and is easier to install correctly.

How do I know if my existing duct insulation is adequate?

If you see condensation on the outside of the duct, or water stains on the ceiling below the duct, the insulation is inadequate. If the duct is warm to the touch in summer when the air inside is cool, the insulation is inadequate. If you can see any uninsulated sections of duct, the insulation is incomplete.

Does insulating the duct reduce airflow?

Properly installed insulation does not reduce airflow. However, if the insulation is installed in a way that kinks or compresses the inner duct liner, it can restrict airflow. Care must be taken to maintain the full duct diameter through any insulated section.

Can I insulate an existing duct that is already installed?

Yes, if the duct is accessible. Rigid ducting can be wrapped with fiberglass duct wrap. Flexible ducting that is already installed is difficult to reinsulate. In most cases, it is easier and more effective to replace the existing uninsulated flexible duct with new insulated flexible duct.

What R-value do I need for a kitchen exhaust duct?

Kitchen exhaust air is typically warmer and more humid than bathroom exhaust air. The higher temperature difference increases the risk of condensation. R-8 is recommended for kitchen exhaust ducts in unconditioned spaces. Ensure the insulation material is rated for the temperature of the exhaust air. Standard flexible duct insulation is typically rated for continuous temperatures up to 60 degrees Celsius, which is adequate for residential kitchen exhaust downstream of the grease filters.
