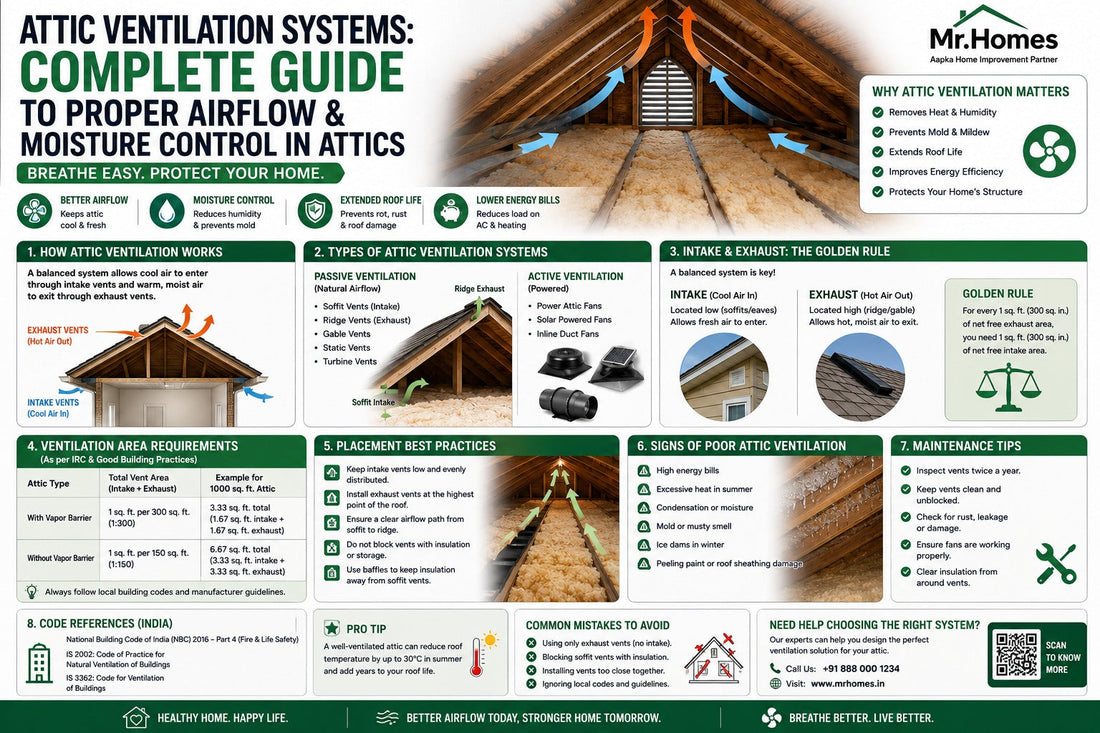

An attic ventilation system is a combination of intake and exhaust vents that create continuous airflow through the attic space. It pulls cool, dry air in through intake vents at the lowest point of the attic, typically at the soffits or eaves.

It pushes hot, humid air out through exhaust vents at the highest point, typically at the ridge or near the roof peak. This passive airflow loop runs continuously, powered by natural forces, without a single moving part.

Attic ventilation is critical for two reasons. In summer, it prevents heat buildup that can superheat the attic to 150 degrees Fahrenheit or more. That heat radiates down into the living spaces, forcing your air conditioner to work harder. It also bakes the roof shingles from underneath, causing premature aging and failure.

In winter, attic ventilation prevents moisture accumulation. Warm, humid air from the living space migrates into the attic. If the attic is cold and unventilated, that moisture condenses on the underside of the roof deck, leading to wood rot, mold growth, and insulation damage.

A properly designed attic ventilation system uses a balanced approach. The net free area, or NFA, of the intake vents should roughly equal the NFA of the exhaust vents. The total NFA should meet or exceed the minimum required by building codes.

Typically 1 square foot of net free vent area for every 150 to 300 square feet of attic floor space, depending on the climate and the vent configuration.

This guide explains the science of attic ventilation, the types of vents available, and how to design a system that protects your roof structure and improves your home's energy efficiency.

Introduction

A few summers ago, I was called to inspect a home where the upstairs bedrooms were consistently 8 to 10 degrees hotter than the ground floor. The air conditioner ran continuously. The energy bills were astronomical. The homeowner had added insulation, upgraded the AC unit, and installed reflective window film. Nothing helped.

I went into the attic. The temperature was 145 degrees Fahrenheit. The space had no intake vents. The only ventilation was a single gable vent at one end. The attic was a sealed oven, baking the ceiling below and radiating heat into the bedrooms. The shingles on the roof were curling at the edges, prematurely aged by the relentless heat.

We installed continuous soffit vents along both eaves and a continuous ridge vent along the entire peak. The transformation was immediate. The attic temperature dropped to within 10 degrees of the outdoor temperature. The upstairs bedrooms became comfortable.

The AC runtime decreased noticeably. The total cost of the ventilation upgrade was a fraction of what the homeowner had already spent on insulation and AC upgrades that could not solve the problem because the root cause was trapped heat.

Attic ventilation is not a luxury upgrade. It is a fundamental building system that protects the roof structure, improves energy efficiency, and prevents moisture damage.

In Indian homes, attics are less common than in Western construction, but they exist in independent houses, bungalows, and older construction. Wherever there is an enclosed space between the ceiling and the roof, ventilation is required.

Why Attic Ventilation Matters

An unventilated attic causes a cascade of problems that affect the entire house.

In summer, solar radiation heats the roof surface. Dark shingles or tiles can reach 160 degrees Fahrenheit or more. That heat conducts through the roofing material and radiates into the attic space. Without ventilation, the attic air temperature climbs to 130 to 150 degrees.

This superheated air radiates heat down through the ceiling insulation into the living spaces. The air conditioner must work against this additional heat load. Energy consumption increases. Comfort decreases.

The heat also damages the roofing materials. Asphalt shingles are designed to operate within a specific temperature range. Prolonged exposure to excessive heat accelerates the degradation of the asphalt. Shingles become brittle, curl at the edges, and lose their protective granules. A roof that should last 25 years may fail in 15.

In winter, the problem reverses. Warm air from the living space rises and migrates into the attic through gaps around light fixtures, ceiling hatches, and partition walls. This air carries moisture from daily activities like cooking, showering, and even breathing.

When this warm, moist air hits the cold underside of the roof deck, the moisture condenses. Water droplets form on the wood. Over time, the wood absorbs this moisture. Mold grows. The roof sheathing rots. The insulation becomes waterlogged and loses its thermal resistance.

In cold climates, the condensation problem is compounded by ice dams. Warm attic air melts snow on the roof. The meltwater runs down to the cold eaves and refreezes. The ice dam traps water behind it, which backs up under the shingles and leaks into the house.

Proper attic ventilation prevents all of these problems by keeping the attic temperature close to the outdoor temperature and by continuously flushing moisture-laden air out of the attic space.

The Stack Effect and Natural Airflow

Attic ventilation is powered by two natural forces. Thermal buoyancy and wind pressure.

Thermal buoyancy, also called the stack effect, is the tendency of warm air to rise. As the sun heats the attic, the air inside warms up. Warm air is less dense than cool air. It rises to the highest point in the attic, which is the ridge.

If exhaust vents are present at the ridge, this hot air escapes. As it escapes, it creates a slight negative pressure in the attic. Cooler, denser outside air is drawn in through the intake vents at the lowest point, typically the soffits. This creates a continuous convection loop.

Wind pressure assists this natural convection. Wind blowing over the roof creates areas of positive and negative pressure. The windward side of the roof experiences positive pressure. The leeward side experiences negative pressure.

Properly placed vents use these pressure differences to enhance airflow. Ridge vents, in particular, benefit from wind because air flowing over the ridge creates a low-pressure zone that actively pulls air out of the attic.

This ventilation system operates continuously, without electricity, without moving parts, and without maintenance beyond keeping the vents clear of debris. It is one of the most elegant passive systems in building design.

Intake Vents: The Air Source

Intake vents are the entry points for outside air. They are installed at the lowest point of the attic, typically in the soffits or at the eaves. Without adequate intake, exhaust vents cannot function. The attic becomes depressurized, and air is pulled from the living space below, wasting conditioned air.

Soffit vents are the most common intake type. They are rectangular or continuous strips installed in the horizontal soffit board under the roof overhang. Individual soffit vents are typically aluminum or vinyl rectangles with a screened opening. Continuous soffit vents are long strips that run the length of the eave. Both are effective if they remain unblocked by insulation.

The most common failure of soffit vents is blockage. When attic insulation is blown in or laid in batts, it often gets pushed into the eaves, covering the soffit vents. This chokes the intake airflow. The solution is to install baffles before insulating.

Baffles are plastic or foam channels that staple to the underside of the roof deck, creating a protected airway from the soffit vent into the attic above the insulation level.

Vented drip edge is an alternative intake when there is no soffit overhang. It is a metal flashing piece installed at the roof edge that incorporates small vents. It provides a low-profile intake solution for homes with minimal or no eaves.

Gable vents are triangular or rectangular vents installed in the gable wall at either end of the attic. They can serve as intake, exhaust, or both depending on wind direction. However, gable vents are incompatible with ridge and soffit vent systems. They cause short-circuiting that prevents proper ventilation.

Exhaust Vents: The Heat Escape

Exhaust vents are the exit points for hot, humid air. They are installed at the highest point of the attic, at or near the ridge.

Ridge vents are the most effective exhaust vent type. A ridge vent is a continuous vent installed along the entire peak of the roof. A slot is cut into the roof deck at the ridge. The vent is nailed over the opening and covered with shingle caps.

A ridge vent provides uniform exhaust along the entire roof, eliminating hot spots. It has no moving parts. Its NFA is typically 15 to 20 square inches per linear foot.

Static roof vents, also called box vents, are individual vents installed near the ridge. They are square or rectangular metal boxes painted to match the roof. They work on simple convection. They are reliable but create localized exhaust points rather than the uniform exhaust of a ridge vent.

Turbine vents are spinning exhaust vents that use wind energy to actively pull air from the attic. They move more air than static vents in windy conditions but function only as a standard opening in still air. They have bearings that wear out and require maintenance.

Powered attic ventilators are electric or solar fans that actively push air out of the attic. They are effective but have downsides. They consume electricity. They can depressurize the attic and pull conditioned air from the living space if intake area is insufficient. They are generally not recommended for attics with central air conditioning ductwork.

Calculating Ventilation Requirements

The National Building Code and international standards specify minimum ventilation areas based on attic floor space.

The standard requirement is 1 square foot of net free vent area for every 300 square feet of attic floor space, provided there is a vapor barrier between the living space and the attic. If there is no vapor barrier, the requirement doubles to 1:150.

The total NFA should be split roughly equally between intake and exhaust. A 1500 square foot attic with a vapor barrier needs 5 square feet of total NFA. That is 2.5 square feet of intake NFA and 2.5 square feet of exhaust NFA.

Net free area is not the same as the physical dimensions of the vent. A vent that measures 12 inches by 6 inches has a physical area of 72 square inches. But the NFA, which accounts for the screen and louvers, might be only 40 square inches. Always use the manufacturer's published NFA rating.

The calculation is straightforward. Measure the attic floor area. Divide by the appropriate ratio, 300 or 150. The result is the total NFA required in square feet. Multiply by 144 to convert to square inches. Divide by 2 to allocate to intake and exhaust.

Balanced vs. Unbalanced Systems

A balanced system has approximately equal intake and exhaust NFA. This is the ideal. Air enters through the intake vents, flows through the attic, and exits through the exhaust vents. The attic pressure is neutral. Conditioned air from the living space is not pulled in.

An exhaust-heavy system has more exhaust NFA than intake NFA. The exhaust vents create negative pressure in the attic. Air is pulled from the living space through ceiling gaps to satisfy the exhaust demand.

This wastes conditioned air and increases energy costs. It also pulls moisture-laden air from the house into the attic in winter, worsening the condensation problem.

An intake-heavy system has more intake NFA than exhaust NFA. This is less common but also problematic. The excess intake area does not improve ventilation. The exhaust vents limit the total airflow.

Achieving balance requires calculating the NFA of each vent type and ensuring the totals match. Different vent types have different NFA ratings. A continuous soffit vent might provide 9 square inches of NFA per linear foot. A ridge vent might provide 18 square inches per linear foot. The linear footage of each must be calculated to achieve balance.

Common Attic Ventilation Mistakes

The most common mistake is blocked intake vents. Insulation covers the soffit vents. The attic has exhaust vents but no effective intake. The system does not work. This is fixed by installing baffles.

Mixing incompatible vent types is another frequent error. A home has gable vents, soffit vents, and a ridge vent. The gable vents short-circuit the airflow. Air enters through the soffit, goes straight to the nearest gable vent, and exits. The ridge vent is bypassed. The center of the attic gets no airflow. The fix is to seal the gable vents.

Insufficient total NFA is common in older homes. The attic has a few small box vents that do not provide the required ventilation area. Additional vents must be installed to meet the minimum requirement.

Exhaust-only systems are common in homes where the builder installed ridge vents but no soffit vents. The attic has plenty of exhaust area and no intake. The ridge vents pull air from the living space. This is fixed by adding soffit vents or vented drip edge.

Venting bathroom or kitchen exhaust fans into the attic is a code violation and a moisture disaster. The warm, humid air condenses on the roof framing. The exhaust must be ducted all the way to the outside.

Attic Ventilation and Insulation

Attic ventilation and attic insulation serve different purposes. They complement each other. One does not replace the other.

Insulation resists heat transfer. It slows the movement of heat between the attic and the living space below. In summer, it reduces the amount of attic heat that radiates down into the rooms. In winter, it reduces the amount of living space heat that escapes into the attic.

Ventilation removes heat and moisture from the attic. It keeps the attic temperature close to the outdoor temperature. It flushes out moisture before it can condense.

A well-insulated attic without ventilation will still suffer from moisture problems in winter. A well-ventilated attic without insulation will still allow excessive heat transfer between the attic and the living space. Both are needed.

Insulation must be installed correctly to avoid blocking intake vents. Baffles must be installed at the eaves before insulation is blown in or laid. The insulation should cover the ceiling joists but not extend into the soffit area.

Frequently Asked Questions

Do Indian homes need attic ventilation?

Any home with an enclosed attic space between the ceiling and the roof needs ventilation. This is more common in independent houses and bungalows than in apartments. If your home has an accessible attic, it needs ventilation. If your top-floor ceiling is directly under the roof with no attic space, attic ventilation does not apply. Your roof insulation and ceiling design are different.

How do I know if my attic has enough ventilation?

Look for these signs. In summer, the upstairs rooms are significantly hotter than downstairs. The air conditioner runs excessively. In winter, you see condensation on the underside of the roof deck or frost on roofing nails. Mold or mildew smell in the attic. Roof shingles curling or losing granules prematurely. If you can access the attic, check that soffit vents are not blocked by insulation and that exhaust vents are clear.

Can I have too much attic ventilation?

It is difficult to have too much ventilation if the system is balanced. Slightly exceeding the code minimum is beneficial. The only risk is if the ventilation is unbalanced, with excessive exhaust creating negative pressure that pulls conditioned air from the house.

Should I close my attic vents in winter?

No. Attic vents should remain open year-round. Closing vents in winter traps moisture in the attic, causing condensation and mold. The purpose of attic ventilation in winter is moisture control, not temperature control.

Can I vent my bathroom exhaust fan into the attic?

No. This is a code violation and a major cause of attic moisture problems. The warm, humid air from the bathroom will condense on the cold roof framing. Bathroom exhaust must be ducted all the way through the attic to an exterior vent termination.

How much does it cost to add attic ventilation?

For a typical 1500 square foot attic, adding continuous soffit and ridge vents costs between Rs. 15000 and Rs. 40000 depending on the existing roof configuration, accessibility, and local labor rates. The cost is modest compared to the cost of a premature roof replacement or mold remediation.
