WadBros IL-M Heavy Duty Inline Duct Fan | Industrial Ventilation Fan
WadBros IL-M Heavy Duty Inline Duct Fan | Industrial Ventilation Fan

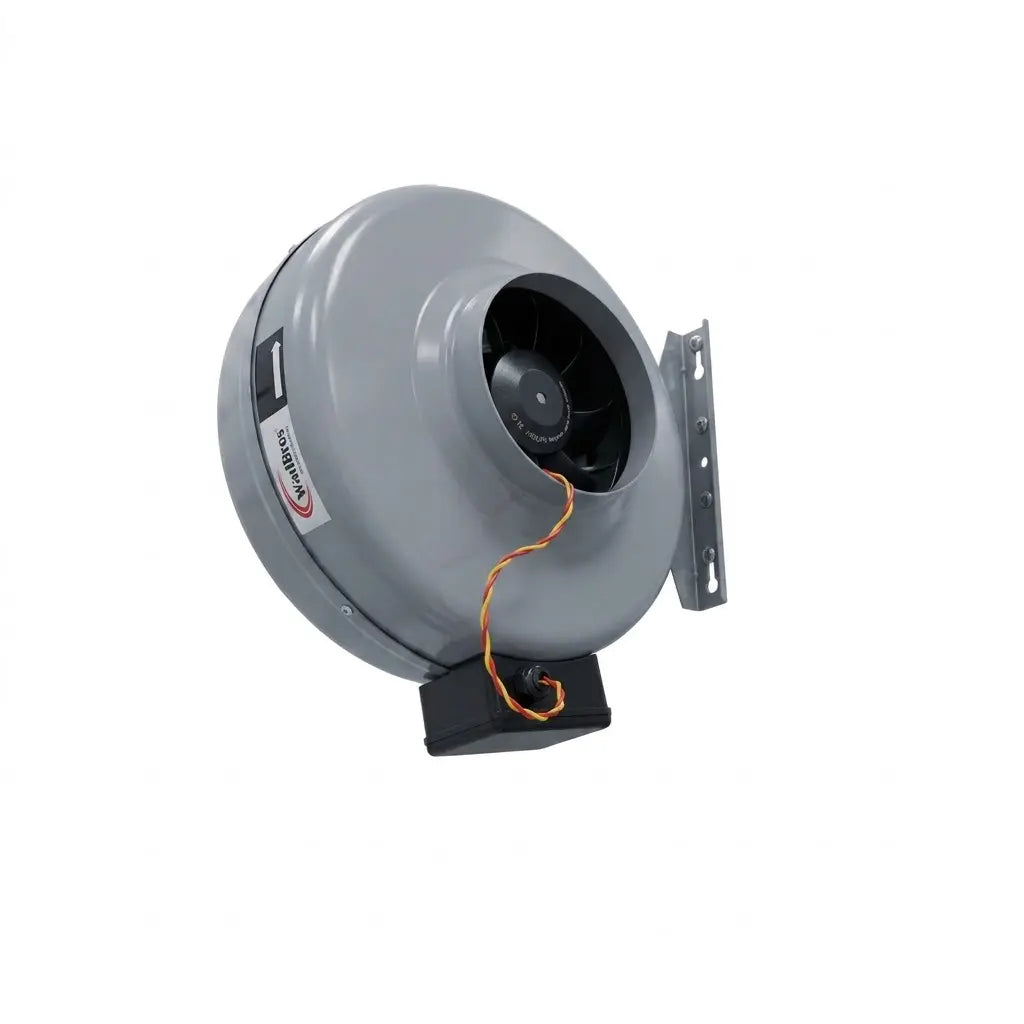

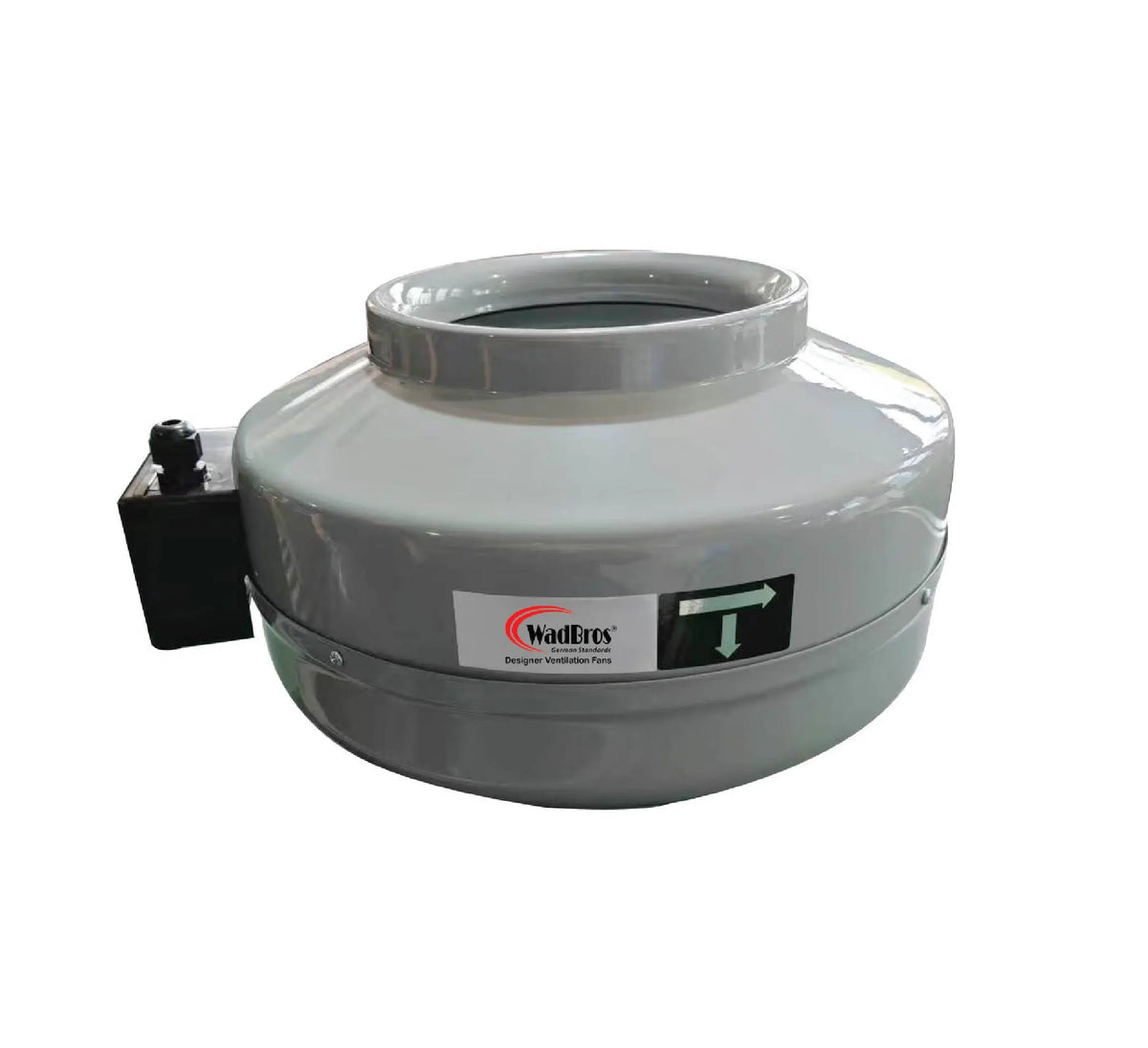

The WadBros IL-M Series Heavy Duty Inline Duct Fan is designed for commercial and industrial ventilation applications where reliable airflow, durable construction and efficient ducted air movement are required.

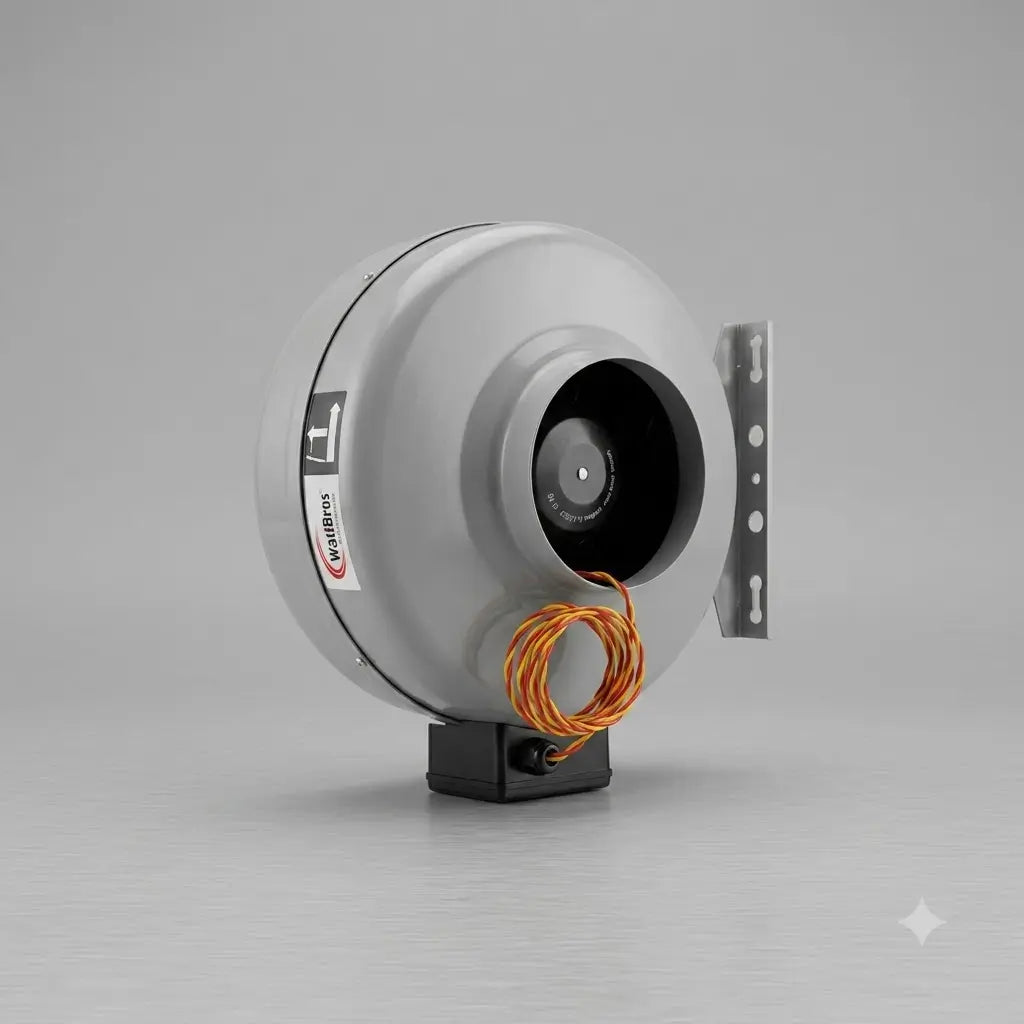

Built with a rugged metal body and external rotor motor, the IL-M Series is suitable for demanding ventilation systems, including applications involving long duct runs and higher duct resistance.
Available in multiple sizes and airflow capacities, the IL-M Series provides a practical ventilation solution for factories, warehouses, workshops, commercial buildings and other industrial environments.
Key Features
- Heavy-duty metal body for commercial and industrial applications
- Designed for long duct and high-load ventilation applications
- External rotor motor designed for precision balance
- Double ball bearing motor for reliable operation
- Designed for silent operation
- Multiple fan sizes available
- Airflow capacity up to 2,500 m³/h
- Rated voltage: 220–230 V
- Rated frequency: 50–60 Hz
Suitable Applications
- Factories and manufacturing facilities
- Warehouses
- Workshops
- Commercial buildings
- Industrial ventilation systems
- Ducted exhaust systems
- Long-duct ventilation applications
- High-resistance duct applications

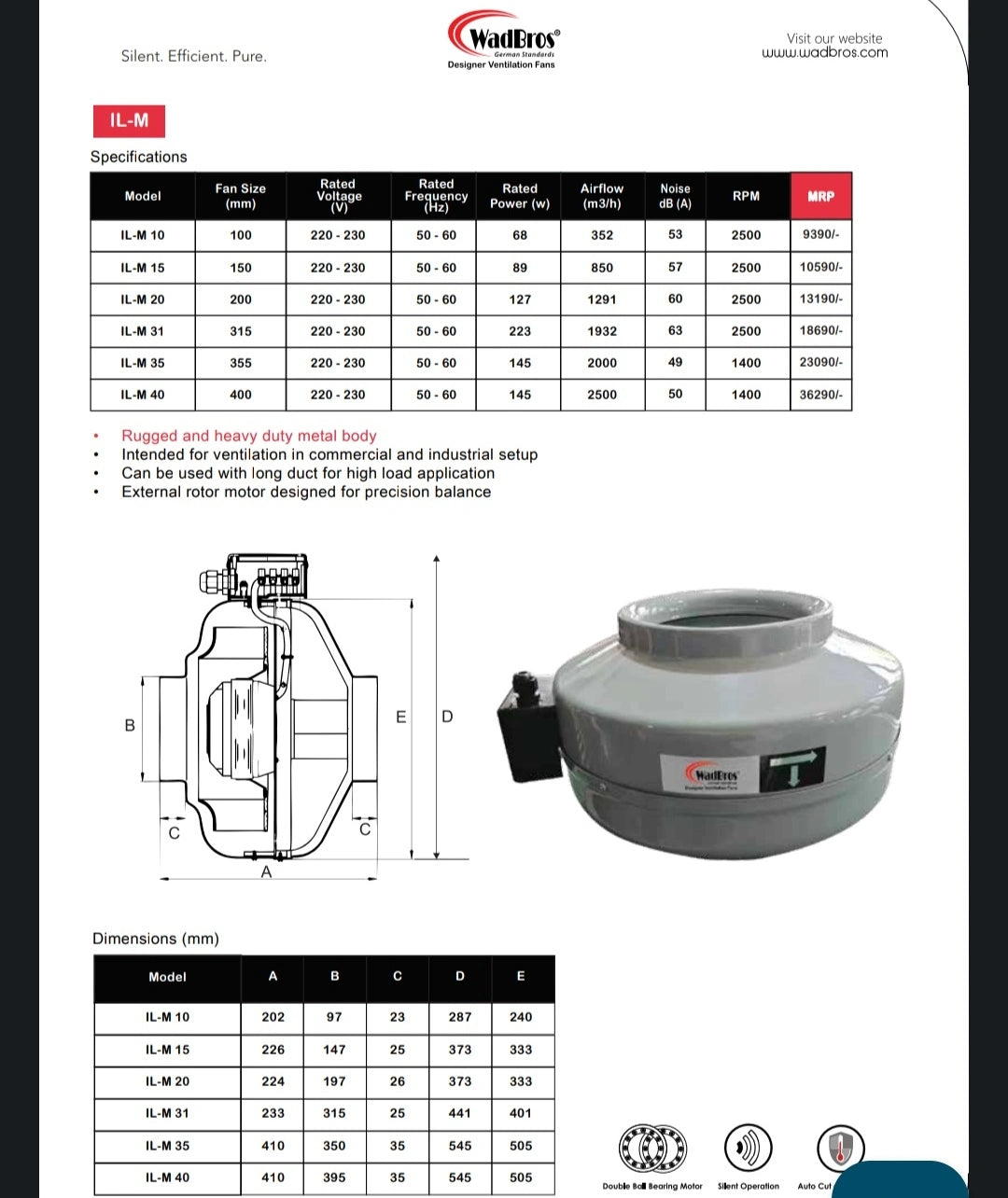

Technical Specifications
| Model | Fan Size | Rated Power | Airflow | Noise Level | RPM |
|---|---|---|---|---|---|
| IL-M 10 | 100 mm | 68 W | 352 m³/h | 53 dB(A) | 2500 |
| IL-M 15 | 150 mm | 89 W | 850 m³/h | 57 dB(A) | 2500 |
| IL-M 20 | 200 mm | 127 W | 1,291 m³/h | 60 dB(A) | 2500 |
| IL-M 31 | 315 mm | 223 W | 1,932 m³/h | 63 dB(A) | 2500 |
| IL-M 35 | 355 mm | 145 W | 2,000 m³/h | 49 dB(A) | 1400 |
| IL-M 40 | 400 mm | 145 W | 2,500 m³/h | 50 dB(A) | 1400 |
Rated Voltage: 220–230 V
Rated Frequency: 50–60 Hz
Dimensions
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|
| IL-M 10 | 202 | 97 | 23 | 287 | 240 |
| IL-M 15 | 226 | 147 | 25 | 373 | 333 |
| IL-M 20 | 224 | 197 | 26 | 373 | 333 |
| IL-M 31 | 233 | 315 | 25 | 441 | 401 |
| IL-M 35 | 410 | 350 | 35 | 545 | 505 |
| IL-M 40 | 410 | 395 | 35 | 545 | 505 |
