I have been called to fix hundreds of exhaust fan installations over the years. The same mistakes appear again and again, made by homeowners doing DIY work and by professional electricians who should know better. The good news is that almost all of these mistakes are fixable without replacing the entire fan.

The most common and most damaging mistake is venting into a dead air shaft. In apartment buildings, the bathroom exhaust often empties into a shared vertical shaft.

When multiple flats pump humid air into that shaft, it pressurizes. Your fan is now trying to push against that pressure. The air has nowhere to go. The fan runs but moves almost nothing.

The second most common mistake is blocking the makeup air path. An exhaust fan can only push out as much air as the room allows to enter. If the bathroom door seals tightly against the floor with no gap, the fan is trying to pull air from a sealed box. It cannot do it.

The third is using the wrong type of fan for the installation. An axial wall fan installed inside a false ceiling with a long duct pipe will not move air. A centrifugal duct fan is required for that application.

Other frequent errors include mounting the fan in the wrong location, skipping the exterior shutter, installing without the correct wall hole slope, and messing up the electrical wiring. This guide walks through each mistake, explains why it happens, and tells you exactly how to fix it.

Introduction

A few months ago, a homeowner called me because his bathroom exhaust fan had stopped working. He had installed it himself six months earlier. When I arrived, I found the fan still running.

The motor was humming. The blades were spinning. But no air was moving. The exterior shutter was completely sealed with paint. He had painted the exterior wall and painted right over the shutter flaps, gluing them shut.

Another customer had a bathroom that smelled musty despite a brand new exhaust fan. The electrician had installed the fan beautifully. The wiring was neat. The grille was straight.

The fan ran quietly. But the bathroom door had a rubber seal at the bottom to keep insects out. There was zero gap for makeup air. The fan was trying to pull air from a sealed box. The moisture from showers was going nowhere.

These are not unusual stories. They are typical. Exhaust fan installation seems simple. Cut a hole, screw in the fan, connect two wires. How hard can it be? The answer is that the installation itself is straightforward.

The mistakes happen in the planning and the details. The things that are not obvious until the fan has been running for a month and the bathroom is still damp.

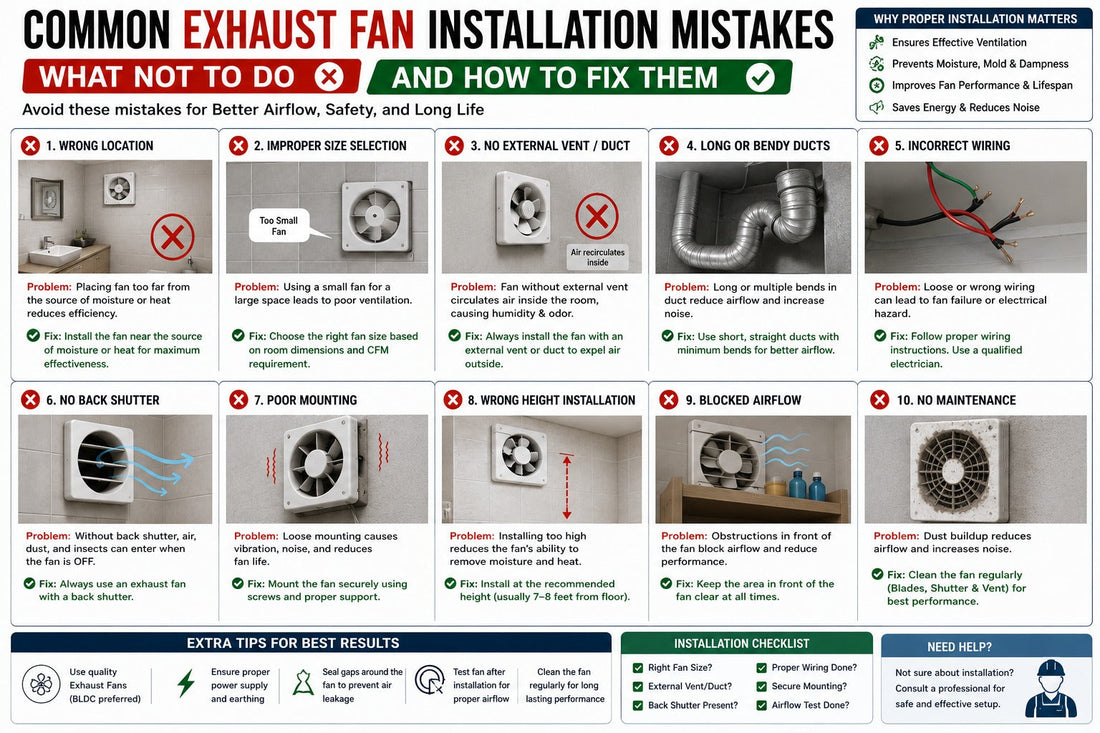

This guide covers the installation mistakes I see most often. For each one, I explain what it looks like, why it happens, and how to fix it. Whether you are planning a DIY installation or checking the work of a contractor, this guide will help you spot problems before they cause damage.

Venting Into a Dead Air Shaft or Wall Cavity

This is the most common problem in apartment buildings. The bathroom exhaust fan is installed on a wall that backs onto a shared air shaft. The shaft is a vertical column running through the building. Every bathroom on every floor vents into the same shaft.

The theory is that hot air rises and exits at the top. The reality is that the shaft pressurizes with humid, stale air from dozens of flats. Your fan is trying to push against that pressure.

The result is that the fan runs but moves very little air. The tissue test fails. A tissue held against the grille does not stick, or sticks weakly. The bathroom stays humid. Mold grows.

The fix is to create a dedicated exhaust path. If the building has a duct riser for exhaust, your fan's ducting must connect to that riser. If there is no riser, the exhaust must be ducted to an exterior wall or to the terrace.

This is a significant project that may require building management permission and professional duct installation. It is not a quick fix, but it is the only permanent solution.

A similar problem occurs when a fan vents into an attic or wall cavity instead of outside. The moisture is still inside the building envelope. It will condense somewhere and cause mold or rot. The fix is to extend the ducting to a proper exterior vent.

Blocking the Makeup Air Path

An exhaust fan can only push out as much air as the room allows to enter. This is the principle of makeup air. If the room is sealed, the fan creates a vacuum. The airflow drops to almost nothing.

The most common cause of blocked makeup air in bathrooms is a door that seals too tightly. A new door sweep. A rubber gasket installed to keep insects out. A thick bath mat shoved under the door. Any of these can block the gap that is meant to be there.

The required gap is 12 to 15 millimeters, about half an inch. If your bathroom door has no gap, or if the gap is blocked, the fix is simple. Trim the bottom of the door. A carpenter can do this in minutes without removing the door from its hinges.

If trimming is not possible, install a transfer grille or a door vent that allows air to pass through while maintaining privacy.

The same problem occurs in kitchens. If the kitchen has a chimney and a wall exhaust fan running simultaneously, and the windows and doors are sealed, both fans will struggle. Crack a window open by an inch while cooking. This provides the makeup air both exhaust devices need.

Using the Wrong Fan Type

There are two main types of exhaust fans. Axial fans are for direct wall or window mounting where the air path is short. Centrifugal fans are for false ceiling installations where air must travel through a duct pipe. Using the wrong type guarantees poor performance.

The classic mistake is installing a cheap axial wall fan inside a false ceiling with a long flexible duct. The axial fan cannot overcome the duct resistance. The airflow at the room grille is barely a puff. The motor overheats and fails prematurely.

The fix is to replace the fan with the correct type. A centrifugal inline duct fan is designed for exactly this application. It builds enough pressure to push air through 10, 15, or 20 feet of ducting with bends.

If the bathroom has an exterior wall and the fan is being mounted directly on that wall, an axial fan is the correct choice. Do not let a contractor talk you into a more expensive centrifugal fan for a direct wall mount. It is unnecessary.

Mounting in the Wrong Location

Where you put the fan matters as much as which fan you buy. The wrong location causes short-circuiting and poor moisture removal.

The most common location mistake is mounting the fan on the wall opposite the bathroom door. Fresh air entering from the door gap gets pulled straight into the fan and exhausted. The damp corner near the shower stays damp because the airflow never reaches it. The air path short-circuits across the room.

The correct location is as close to the moisture source as possible. In a bathroom, that means the wall nearest the shower, high up near the ceiling. The fan captures the steam where it is generated.

In a kitchen, the wall exhaust fan should be on the wall opposite the cooktop. This creates an airflow path that pulls cooking fumes across the room. If the fan is on the same wall as the chimney, both devices compete for the same air and the far side of the kitchen stays smoky.

The fan should be mounted as high as possible, within 6 to 12 inches of the ceiling. Hot, humid air rises. Mounting the fan high captures this stratified layer directly.

Skipping the Exterior Shutter

The exterior shutter, also called a backdraft damper or gravity flap, is the flap on the outside wall that opens when the fan pushes air out and closes when the fan is off. Skipping it is a common shortcut, either to save the few hundred rupees it costs or because the installer simply forgot.

Without a shutter, the hole in the wall is an open passage. Hot outside air enters in summer. Cold air enters in winter. Mosquitoes, flies, and cockroaches enter at any time. Dust and rain enter when the wind blows toward the wall.

The fix is to install a shutter. PVC gravity shutters are inexpensive, Rs. 150 to Rs. 300, and easy to fit. They screw onto the exterior wall over the vent opening. Apply silicone sealant around the top and sides where the shutter meets the wall. Leave the bottom unsealed so any water that gets behind the shutter can drain out.

If a shutter was installed but is not working, it may be stuck. Paint, dust, insect nests, or physical damage can jam the flaps. Clean the shutter. If it is damaged, replace it.

Incorrect Wall Hole Slope

The wall hole that the fan sits in should slope slightly downward toward the outside. A drop of 5 to 10 millimeters across the wall thickness is enough. This ensures that any water that enters the vent, from rain or condensation, drains outward rather than inward.

A hole that is perfectly level can allow water to pool and seep back into the room. A hole that slopes inward actively directs water into the room. The result is water stains on the wall below the fan, peeling paint, and potential electrical hazards.

The fix depends on the severity. If the hole slope is slightly off, the fan housing can sometimes be shimmed to create the correct angle. If the hole is badly angled, it may need to be re-cut. This is a messy job that involves removing the fan, filling the old hole partially, and re-drilling at the correct angle. It is best handled by a professional.

Poor Electrical Installation

Electrical mistakes range from annoying to dangerous. The most common are wiring the fan to the light switch so it only runs when the light is on, using undersized wire that overheats, failing to ground the fan properly, and installing the switch inside the bathroom wet zone.

A fan wired to the light switch means the fan only runs while someone is in the bathroom. This is not long enough to clear the moisture after a shower. The fan should be on its own switch, or on a timer switch that continues running after the light is off.

A fan that trips the circuit breaker has a short circuit somewhere. It may be a pinched wire inside the housing, a failed motor, or water ingress. Switch off the power and call an electrician.

A fan that gives a mild shock when touched is not properly grounded. This is dangerous, especially in a wet bathroom. Switch off the power at the mains and call an electrician immediately.

The electrical switch for a bathroom fan should be located outside the bathroom if possible, or at least 60 centimeters horizontally from the shower or bathtub. All bathroom electrical work must comply with safety regulations.

Loose Mounting and Vibration

A fan that rattles or vibrates excessively is annoying and is slowly damaging itself. The vibration accelerates bearing wear, loosens screws, and can crack the wall plaster around the mounting.

The most common cause is loose mounting screws. The screws that hold the fan housing to the wall have worked loose from vibration. Tightening them usually solves the problem.

If the fan is mounted on a flexible surface like thin plasterboard, the entire wall panel may be vibrating. Reinforce the mounting area with a plywood backing board or use vibration isolation mounts.

If the fan blades are dirty, the imbalance causes vibration. Clean the blades thoroughly and the vibration often disappears.

If the fan is new and vibrates immediately, it may be a manufacturing defect. The impeller may not have been balanced at the factory. Return it under warranty.

Undersized Fan for the Room

This is a planning mistake rather than an installation mistake, but it manifests as an installation that does not work. The fan is installed correctly. It runs. It moves air. But the CFM is too low for the room size. The air exchange rate is insufficient to clear moisture or smoke in a reasonable time.

The fix is to replace the fan with a properly sized model. For bathrooms, calculate 1.5 CFM per square foot. A 60 square foot bathroom needs at least 90 CFM. For kitchens, calculate 2.5 CFM per square foot. An 80 square foot kitchen needs at least 200 CFM.

Installing a second fan is an alternative if replacing the existing fan is not practical. Two smaller fans can provide the total CFM needed. They must be positioned to work together, not to short-circuit each other.

Frequently Asked Questions

My exhaust fan is installed but the bathroom still fogs up. What is wrong?

Work through the checklist. Check that the fan is the correct CFM for the room size. Check that the exterior shutter is opening. Check that the door has a gap for makeup air. Check that the fan is venting to outside, not into a dead shaft or attic. Check that the fan blades are clean. One of these is almost certainly the culprit.

Can I vent my bathroom exhaust fan into the attic?

No. Venting into an attic dumps warm, humid air into a space that is meant to be dry. The moisture condenses on the roof framing, insulation, and ceiling materials. Mold grows. Wood rots. The exhaust must reach outdoor air.

Is it okay to use flexible ducting for my exhaust fan?

Flexible ducting is commonly used and is acceptable if it is installed correctly. It must be pulled taut to minimize sagging. Bends must be gradual, not kinked. The duct should be insulated if it passes through an unconditioned space. Rigid smooth ducting is better because it has less air resistance. If you have the option, use rigid ducting.

Can I install the exhaust fan horizontally on the ceiling?

Standard axial wall fans are designed for vertical mounting. They should not be installed horizontally on a ceiling. Ceiling installations require a ceiling-mounted grille connected to a centrifugal inline duct fan. The fan unit itself is mounted elsewhere in the ceiling cavity.

How do I know if my fan is venting outside properly?

Go outside and find the exterior vent while the fan is running. You should feel a steady stream of air coming out. Hold a tissue near the vent. It should be blown away from the vent, not sucked toward it. If you cannot find the exterior vent, or if there is no airflow at the vent when the fan is running, the exhaust path is blocked or disconnected.

Can I install an exhaust fan in a bathroom without an exterior wall?

Yes, but it requires a ducted installation through the false ceiling. A grille is installed in the bathroom ceiling. A flexible or rigid duct connects the grille to a centrifugal inline fan mounted in the ceiling cavity. Another duct runs from the fan to an exterior wall or roof vent. This is a professional installation.
