Installing an exhaust fan yourself is possible if you have basic DIY skills, the right tools, and a clear understanding of electrical safety. The process involves five main steps. Marking and cutting the wall hole. Mounting the fan housing. Connecting the electrical wiring. Installing the exterior shutter. And testing the system.

However, there is a line you should not cross. If your installation requires creating a new hole in an exterior wall, which involves core cutting through brick or concrete, I strongly recommend hiring a professional. That job requires specialized equipment and experience. If you make a mistake, you can damage the wall structurally or create a leak path for rainwater.

If you are simply replacing an existing exhaust fan in an already-cut hole, the job is much more manageable as a DIY project. The hole is there. The wiring is there. You are swapping one unit for another. With careful attention to safety and a methodical approach, you can complete this in a couple of hours.

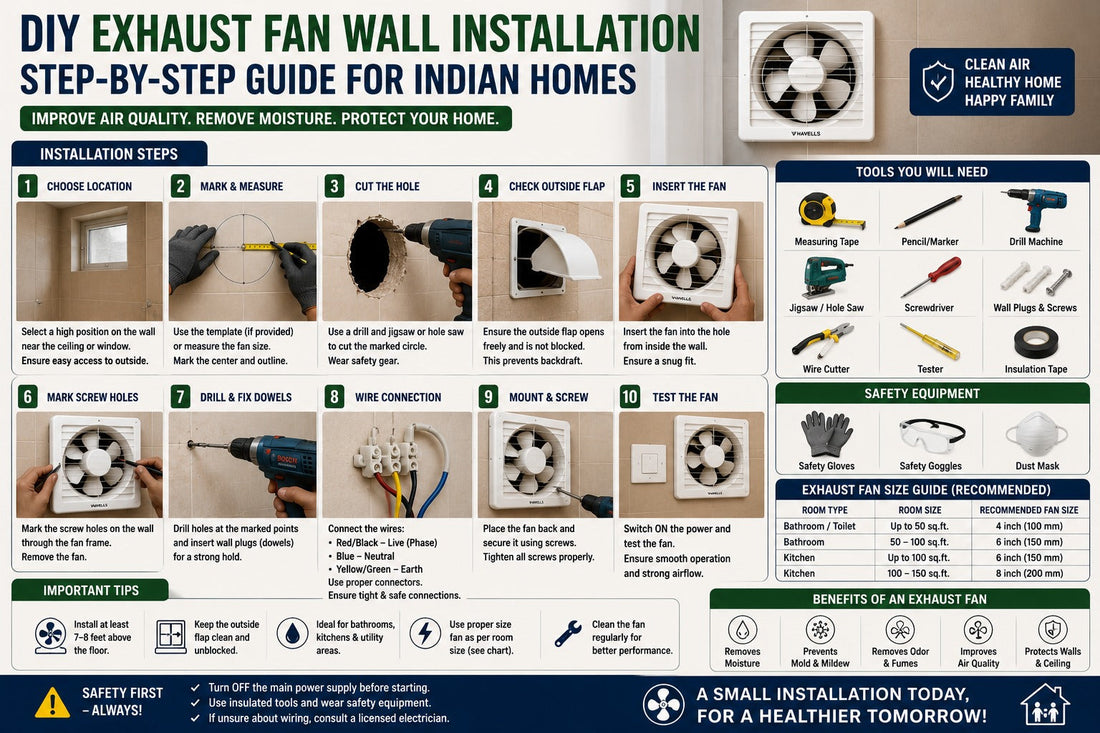

This guide walks you through the complete process with detailed safety warnings at each step. Read it fully before you start. If at any point you feel unsure, stop and call an electrician. A few hundred rupees in labor is cheaper than a hospital visit or a damaged wall.

Introduction

I have installed dozens of exhaust fans. I have also been called to fix dozens of DIY installations that went wrong. The difference between a successful installation and a problematic one usually comes down to two things. Rushing through the preparation steps. And ignoring the small details like hole slope, sealing, and makeup air.

The temptation when doing DIY work is to get the fan on the wall and working as quickly as possible. You want to hear it hum and feel the air moving. But the details you skip in that rush are the ones that cause problems months later.

Water stains on the wall below the fan. A rattling noise that gets worse over time. A fan that runs but does not clear steam because the exterior shutter is jammed.

This guide will take you through the process at a reasonable pace. No skipped steps. Clear safety warnings. Honest advice about when to put down the tools and call someone who does this for a living.

Table of Contents

1. Before You Start: Tools, Safety, and Reality Check

2. Step 1: Mark and Cut the Wall Hole

3. Step 2: Mount the Fan Housing

4. Step 3: Connect the Electrical Wiring

5. Step 4: Install the Exterior Shutter

6. Step 5: Test and Finish

7. When to Call a Professional

8. Frequently Asked Questions

9. Final Safety Reminder

Before You Start: Tools, Safety, and Reality Check

Tools You Will Need

A measuring tape. A pencil or marker. A spirit level. A drill with masonry bits. A hammer. A chisel if you need to neaten the hole edges. Screwdrivers, both Phillips and flathead. A voltage tester or multimeter. Wire strippers. Electrical tape.

Wall plugs and screws appropriate for your wall type. Silicone sealant for exterior waterproofing. Safety glasses. A dust mask. Work gloves.

Safety Rules You Must Follow

Switch off the mains power at the circuit breaker before you do anything involving electrical wiring. Do not just switch off the wall switch. Go to the distribution board and flip the breaker for that room. Tape a note over the breaker so no one switches it back on while you are working.

Use a voltage tester to confirm the wires are dead before you touch them. Test the tester on a known live circuit first to make sure it is working. Then test the wires you will be working on. Only proceed when you are certain there is no power.

Wear safety glasses and a dust mask during the wall cutting and drilling phase. Brick and concrete dust is not good for your eyes or lungs.

Do not work alone. Have someone in the house who knows you are working on electrical wiring. If something goes wrong, you want someone to be able to help.

Reality Check: New Installation vs Replacement

If you are installing a fan in a wall that already has a hole and existing wiring from a previous fan, this is a replacement job. You can handle this.

If you are installing a fan in a wall that does not have a hole, you need core cutting. A circular hole must be drilled through brick or concrete using a diamond core cutter. This is heavy, specialized equipment. The hole must be perfectly round, the correct diameter, and at the correct slope.

If you do not own a core cutter and have never used one, this is the point where you call a professional. The cost of hiring someone to cut the hole is far less than the cost of repairing a badly damaged wall.

The rest of this guide assumes you have an existing hole or have hired someone to cut the hole for you.

Step 1: Mark and Cut the Wall Hole

If the hole already exists from a previous fan, your first job is to check its condition. Look for cracks in the plaster around the hole. Check for signs of water ingress. Make sure the hole diameter matches your new fan. Most residential exhaust fans require a hole between 150mm and 230mm depending on the blade size.

If the existing hole is too small, it can sometimes be enlarged carefully with a chisel and hammer. If it is too large, you will need to fill the gap with mortar or use an adapter plate. A loose-fitting fan will rattle and leak air.

If you are having a new hole cut by a professional, be there when they do it. Specify the exact diameter needed for your fan model. The hole should slope slightly downward toward the outside. A drop of about 5 to 10 millimeters across the wall thickness is sufficient. This ensures any water that enters the vent drains outward, not inward.

The ideal height for the hole is as high on the wall as possible, within 6 to 12 inches of the ceiling. This captures the hot, humid air that rises and collects at ceiling level. Position the hole on the wall closest to the shower or moisture source, not on the wall opposite the door.

Mark the position with a pencil. Double-check your measurements. Use a spirit level to ensure the fan will sit straight. A crooked exhaust fan looks bad and the shutter may not close properly if the fan is tilted.

Step 2: Mount the Fan Housing

The fan housing is the outer frame or box that sits inside the wall hole and holds the fan assembly. Some fans come as a single unit where the housing and the motor assembly are integrated. Others have a separate mounting frame that goes in first.

If your fan has a separate mounting frame, insert it into the wall hole. It should fit snugly. Use wall plugs and screws to fix the frame to the wall. The frame must be level. Check with a spirit level before tightening the screws fully.

If there are gaps between the frame and the wall hole, fill them with mortar or expanding foam. Gaps allow air to leak back into the room, which reduces the fan's effectiveness. They also allow insects and dust to enter around the fan rather than through the filtered shutter.

Once the frame or housing is secure, fit the fan assembly into it. This usually involves sliding the fan unit into the frame and securing it with clips or screws. Follow the manufacturer's instructions for your specific model.

The fan should sit flush against the wall on the inside. The front grille will cover the gap between the fan and the wall surface.

Step 3: Connect the Electrical Wiring

This is the most dangerous step. If you are not comfortable working with electrical wiring, stop here and call an electrician. It is not worth the risk.

If you are proceeding, the wiring setup depends on whether you are replacing an existing fan or wiring a new circuit. For a replacement, you are connecting the new fan to existing wiring that already has a switch.

Remove the electrical cover plate on the fan. You will see terminals for the live, neutral, and earth wires. In Indian wiring, live is usually red or brown, neutral is black or blue, and earth is green or bare copper. Do not rely on color alone. Use a tester to confirm which wire is which.

Connect the wires to the corresponding terminals. Live to L. Neutral to N. Earth to the earth terminal, which is often marked with a symbol of three horizontal lines and a vertical line.

Tighten the terminal screws firmly. A loose connection will cause sparking and overheating. Wrap the connections with electrical tape for additional insulation and strain relief.

Replace the electrical cover plate. Make sure no wires are pinched or exposed.

If you are wiring a new switch, the switch must be installed outside the bathroom or at least away from the wet zone. The wiring from the switch to the fan must be run through conduit. This is a more complex job and I recommend hiring an electrician for any new circuit installation.

A timer switch is a worthwhile upgrade at this stage. It allows the fan to run for a preset period after you switch it off. If you want a timer, install it now rather than later.

Step 4: Install the Exterior Shutter

The exterior shutter, also called a backdraft damper or gravity flap, is mounted on the outside wall over the vent opening. It serves several purposes. It prevents rain from entering the vent. It stops insects, birds, and rodents from entering through the open hole. It prevents hot outside air from flowing in when the fan is off. It reduces outside noise transmission.

The shutter should have flaps that open outward when the fan pushes air through and fall closed by gravity when the fan stops. Some models have a spring-loaded mechanism for a tighter seal.

Position the shutter over the exterior opening. Mark the screw holes. Drill pilot holes for the screws. Apply a bead of silicone sealant around the edge of the shutter where it will contact the wall. This waterproofs the installation.

Screw the shutter in place. Do not overtighten the screws. You can crack the plastic shutter. The screws should be snug but not forced.

Apply additional silicone sealant around the top and sides of the shutter where it meets the wall. Leave the bottom edge unsealed. This allows any water that does get behind the shutter to drain out rather than being trapped.

Check that the flaps move freely. Push them open with your finger. They should swing smoothly and fall closed on their own.

Step 5: Test and Finish

With the wiring complete and the exterior shutter installed, you are ready to test.

First, do a visual inspection. Check that all screws are tight. Check that the electrical cover plate is secure. Check that the fan grille is properly attached.

Go to the circuit breaker and switch the power back on. Remove your safety note from the breaker box.

Go to the fan switch and turn it on. The fan should start immediately and run smoothly. Listen for any unusual noises. A smooth hum is normal. A rattling, grinding, or clicking sound indicates a problem. Switch off and check for loose screws, a misaligned grille, or debris in the fan housing.

Do the tissue test. Hold a single square of toilet paper or a tissue up to the running fan. The suction should hold it firmly against the grille. If the tissue does not stick or barely flutters, the fan is not moving enough air. Check that the exterior shutter is opening. Check that the door gap exists for makeup air.

Go outside and confirm that the shutter flaps are open while the fan is running. You should feel a steady stream of air being pushed out.

Switch the fan off. Go back outside and confirm the shutter flaps have closed.

If the fan has a timer, test it. Set the timer for five minutes, switch the fan on, then switch it off. The fan should continue running and stop after approximately five minutes.

If everything checks out, the installation is complete. Dispose of packaging and clean up any dust or debris.

When to Call a Professional

There are several situations where DIY installation is not the right choice. If you need a new wall core hole cut and you do not own a diamond core cutter and know how to use one, hire a professional.

If your installation requires running new electrical wiring from the distribution board, hire a licensed electrician. This is legally required in many jurisdictions and is genuinely dangerous work. If the fan is a ducted centrifugal model that requires installing flexible ducting through a false ceiling, hire a professional.

 Ducting that is poorly supported, excessively bent, or badly connected will not work. If the wall material is anything other than standard brick or concrete, like stone, timber framing, or a prefabricated panel, hire a professional who understands the specific requirements.

 If you are unsure about any step in this guide, hire a professional. The cost of installation is modest compared to the cost of fixing a mistake.

Frequently Asked Questions

Can I install an exhaust fan in a window instead of the wall?

Yes. A window mount involves replacing one glass pane with a wooden or metal panel that holds the fan. This is often easier than core cutting through a wall. The principles are the same. The panel must be sealed against rain. The wiring must be safe. The window must be accessible for cleaning and maintenance.

Do I need to seal around the fan on the inside as well as the outside?

Sealing around the fan housing inside the wall hole prevents air from leaking back into the room. It also reduces noise transmission and insect entry. Use a small bead of silicone sealant or expanding foam to fill any gaps between the fan housing and the wall opening. Then the grille covers the joint.

What if my wall is too thick for the fan housing?

Most residential exhaust fans are designed for walls up to about 12 inches thick. If your wall is thicker, you may need an extension sleeve or a custom duct section. Discuss this with the fan supplier before purchasing.

Can I install the fan on the ceiling instead of the wall?

A standard axial wall fan should not be ceiling mounted. Ceiling installations require a ducted centrifugal fan with a grille in the ceiling and ducting to an exterior wall or roof vent. The installation is significantly more complex and is best handled by a professional.

How do I know if my electrical wiring is safe to use with a new fan?

The existing wiring should be in good condition with no cracked insulation, no signs of overheating like discolored copper, and a properly functioning earth connection. If the wiring is very old, particularly if it has cloth-insulated cables or no earth wire, have an electrician inspect and possibly replace it before connecting a new fan.

The fan is installed but the bathroom still fogs up. What did I do wrong?

The most likely culprit is insufficient makeup air. Check the gap under the bathroom door. It should be 12 to 15 millimeters. If the door seals tightly against the floor, the fan cannot pull air out of the room effectively. Other possibilities include a stuck exterior shutter, an undersized fan for the room, or a blocked duct. Work through the troubleshooting steps one at a time.

Final Safety Reminder

Installing an exhaust fan involves cutting into walls, working at height, and handling electrical wiring. Each of these activities carries risk. The instructions in this guide are provided for educational purposes. They are not a substitute for professional training or for the specific installation manual that came with your fan.

If you are not confident in your ability to complete any step safely, stop. Call an electrician or a handyman with experience in exhaust fan installation. The satisfaction of doing it yourself is not worth an electrical shock, a fall from a ladder, or a water-damaged wall that costs thousands to repair.

Be safe. Be methodical. Take your time.
