Choosing the right exhaust fan comes down to getting four things right. Room size, fan type, CFM rating, and placement.

Start by measuring your room. The square footage tells you how much air the fan needs to move. A bathroom needs roughly 1 CFM per square foot. A 60 square foot bathroom needs at least a 60 CFM fan.

 I always suggest going 20 to 30 percent higher because real-world conditions like dust buildup and slight duct resistance reduce performance over time.

Next, figure out your mounting situation. If you have an exterior wall where the fan can blow air straight outside, you need an axial fan. These are the standard square or round wall-mounted fans.

If your bathroom has a false ceiling and no exterior wall, you need a centrifugal duct fan that can push air through a pipe to the outside. This single decision makes or breaks the installation.

Then pick the right size. For bathrooms up to 70 square feet, a 150mm or 6-inch fan is usually enough. For larger bathrooms and most kitchens, a 230mm or 9-inch fan is needed.

But do not buy by blade size alone. Check the CFM rating on the box. Two different 9-inch fans can have very different airflow.

Finally, placement matters. Mount the fan high on the wall near the ceiling, as close to the moisture or smoke source as possible. In a bathroom, that means near the shower. In a kitchen, on the wall opposite the cooktop. Make sure there is a clear path for the exhausted air to reach the outdoors.

And never forget the door gap. Without a 12 to 15 millimeter gap under the door, even the best fan will struggle because there is no replacement air entering the room.

Introduction

I have stood in countless hardware store aisles watching people stare at a wall of exhaust fans with no idea which one to buy. The boxes all look similar. The prices range from Rs. 500 to Rs. 5000. The specifications are printed in tiny text with terms like CFM, static pressure, and NFA that mean nothing to most homeowners.

So people default to what they know. They buy the cheapest one or the one the shopkeeper recommends. Sometimes that works out. Often it does not.

The result is a fan that makes noise but does not clear the steam from the bathroom. Or a fan that burns out in two years because the motor was not built for humid conditions. Or a fan that was the wrong type entirely for a false ceiling installation and never moved any meaningful air from day one.

Choosing the right exhaust fan is not complicated once you know what to look for. It requires no technical background. Just a measuring tape, a few minutes of reading, and a clear understanding of where the fan will be installed. This guide walks you through the entire selection process step by step.

By the end, you will be able to walk into any shop or browse any online store and pick the right fan with confidence.

Step 1: Measure Your Room and Calculate Required CFM

The first thing you need is the square footage of the room. Take a measuring tape. Measure the length and width of the room in feet. Multiply them together. That is your square footage.

For a bathroom, the minimum CFM requirement is 1 CFM per square foot. A bathroom that is 8 feet by 6 feet is 48 square feet. The minimum fan size is 48 CFM. I always recommend adding a buffer of 20 to 30 percent for real-world conditions. So for that 48 square foot bathroom, I would suggest a fan rated at 60 to 80 CFM.

For a kitchen, the requirement is higher because cooking generates more pollutants. The minimum is roughly 2 CFM per square foot. A kitchen that is 10 feet by 8 feet is 80 square feet. The minimum fan size is 160 CFM. With the buffer, look for 200 to 250 CFM. Kitchens also benefit from a chimney in addition to the exhaust fan, so consider the fan as supplementary room ventilation rather than the primary cooking exhaust.

For a utility room, the bathroom rule applies. 1 CFM per square foot is sufficient.

Here is a simple formula you can use. Room square footage multiplied by 1.5 for bathrooms, 2.5 for kitchens. That gives you a safe CFM target that accounts for real-world performance drops.

If your bathroom is particularly large, say over 100 square feet, or has a jacuzzi or steam shower, increase the CFM further. More moisture generation demands more extraction capacity.

Step 2: Determine Your Mounting Situation

This step is often skipped, and it is the reason many exhaust fan installations fail. You need to look at the room and answer one question. Where will the exhausted air go?

If the room has an exterior wall, meaning a wall that directly faces the outside of the building, you have the simplest mounting situation. The fan can be installed directly on that wall. The air path is just the thickness of the wall, maybe 6 to 9 inches. This is the ideal setup for an axial fan.

If the room has a window that you are willing to modify, you can mount the fan in the window pane. A glass pane is removed and replaced with a wooden or metal panel that holds the fan. This also works well for axial fans.

If the room has no exterior wall and no suitable window, which is common in apartment bathrooms with false ceilings, you have a ducted mounting situation. The fan must be installed in the ceiling or in the ceiling cavity. A duct pipe must run from the fan to the nearest exterior wall or to the terrace. This requires a centrifugal fan.

If the room is a kitchen with a chimney already installed, check where the chimney exhausts. The wall exhaust fan should ideally vent to a different exterior wall or at least a different opening on the same wall to avoid interfering with the chimney exhaust.

Step 3: Choose Between Axial and Centrifugal

This decision flows directly from your mounting situation. It is not a matter of preference or budget. It is a matter of physics.

Axial fans are designed for direct mount applications with minimal duct resistance. The air moves in a straight line through the fan. They are excellent at moving large volumes of air when the exhaust path is short. They are affordable, easy to install, and widely available. Choose an axial fan if you are mounting directly on an exterior wall or in a window.

Centrifugal fans are designed for ducted applications with significant resistance. The air is pulled into the center of the impeller and flung out at a right angle. This builds enough pressure to push air through 10, 15, or even 20 feet of flexible duct pipe. Choose a centrifugal fan if you are mounting in a false ceiling and need to run a duct to the outside.

I have seen too many installations where a contractor installed a cheap axial wall fan inside a false ceiling with a long duct. The airflow at the grille was almost zero. The motor overheated and failed.

The homeowner paid twice. Once for the wrong fan. Once for the right fan plus the labor to redo the work. Do not make this mistake.

Step 4: Pick the Right Blade Size

Exhaust fans for Indian homes come in standard sizes. 100mm or 4 inches. 150mm or 6 inches. 200mm or 8 inches. 230mm or 9 inches. 300mm or 12 inches.

For most residential bathrooms, the 150mm or 6-inch size is correct. These fans typically deliver between 80 and 120 CFM, which covers bathrooms up to about 80 square feet.

For larger bathrooms, over 80 square feet, consider a 200mm or 230mm fan. These deliver 150 to 250 CFM.

For kitchens, the 230mm or 9-inch size is standard. These deliver 250 to 350 CFM depending on the motor speed and blade design.

The 100mm size is only suitable for very small powder rooms or store rooms under 30 square feet.

The 300mm size is generally for commercial applications or very large residential kitchens.

Do not buy based on blade size as your primary criteria. Blade size gives you a rough category. The CFM rating tells you the actual performance. Always check the CFM number on the box. If the box does not clearly state the CFM, look for a different brand.

Step 5: Check Motor Quality and Build

The motor is the heart of the exhaust fan. If the motor fails, the fan is scrap. In a bathroom, the motor operates in a high-humidity environment. In a kitchen, it operates in a hot, oily environment. Both are challenging conditions for electrical equipment.

Copper winding motors are the gold standard. Copper has better electrical conductivity, generates less heat, and resists corrosion better than aluminum. A fan with a 100 percent copper winding motor will cost more but will last significantly longer.

Aluminum winding motors are cheaper but fail faster. In a humid bathroom, aluminum corrodes over time. The motor windings degrade. The fan slows down, starts making noise, and eventually stops working.

Some manufacturers use a mix of copper and aluminum. The box might say "copper coated" or "copper wound" without specifying 100 percent copper. If the price seems too good to be true, it probably is. Stick with reputable brands that clearly state 100 percent copper windings on the packaging.

The body material also matters. For bathrooms, high-quality ABS plastic is perfectly durable and will not rust. For kitchens, metal bodies and metal blades are preferred because they withstand heat and oil exposure better. Metal blades are also easier to clean aggressively with degreasers.

Step 6: Decide on Additional Features

Modern exhaust fans come with several optional features. None are essential, but some are genuinely useful.

A backdraft shutter or gravity flap is a one-way door on the exterior side of the fan. It opens outward when the fan pushes air out. It closes by gravity when the fan is off. This prevents insects, dust, and hot outside air from entering the room. I consider this a mandatory accessory, not an optional one.

A timer function lets the fan run for a set period after you switch it off. This is very useful in bathrooms where you want the fan to clear residual moisture after you leave. Timer switches can be purchased separately and wired to any fan.

A humidity sensor automatically switches the fan on when humidity in the room exceeds a set threshold. This is convenient but adds cost and complexity. For most homes, a manual switch or timer is sufficient.

A motion sensor switches the fan on when someone enters the room. This is useful in powder rooms or guest bathrooms where people may forget to turn the fan on.

Noise rating is worth checking if the fan is in a bathroom adjacent to a bedroom. A fan rated at 35 to 40 decibels is quiet. A fan rated at 45 to 50 decibels has a noticeable hum. Lower noise usually comes at a higher price.

An IP rating indicates protection against water and dust ingress. For bathroom fans, look for at least IPX4, which means the fan is protected against splashing water from any direction. For fans installed directly above a shower enclosure, IPX5 or higher is required.

Step 7: Plan the Placement

Where you put the fan matters as much as which fan you buy. A perfectly sized fan in the wrong location will not perform well.

In a bathroom, mount the fan as high as possible on the wall, within 6 to 12 inches of the ceiling. Hot, humid air rises and collects in a layer at the ceiling. Mounting the fan high captures this layer directly. Position the fan as close to the shower area as practical. The moisture source should be as close to the extraction point as possible.

Do not mount the fan on the wall directly opposite the bathroom door. This causes short-circuiting. Fresh air entering from the door gap gets pulled straight into the fan and exhausted. The damp corner near the shower stays damp. The air path should travel across the room from the door to the moisture source and then to the fan.

In a kitchen, mount the fan high on the wall opposite the cooktop. The goal is to create an air path that pulls cooking fumes across the room and out. If the chimney is on one wall, the exhaust fan should ideally be on the opposite wall. If that is not possible, mount it on an adjacent wall as far from the chimney as the room allows.

Make sure the exterior opening is clear. The fan should vent to open air, not into a covered balcony, not into a stairwell, and definitely not into a dead air shaft. A dead air shaft is a vertical shaft shared by multiple apartments. It gets pressurized with humid, stale air from other units. Your fan will be pushing against that pressure and moving very little air.

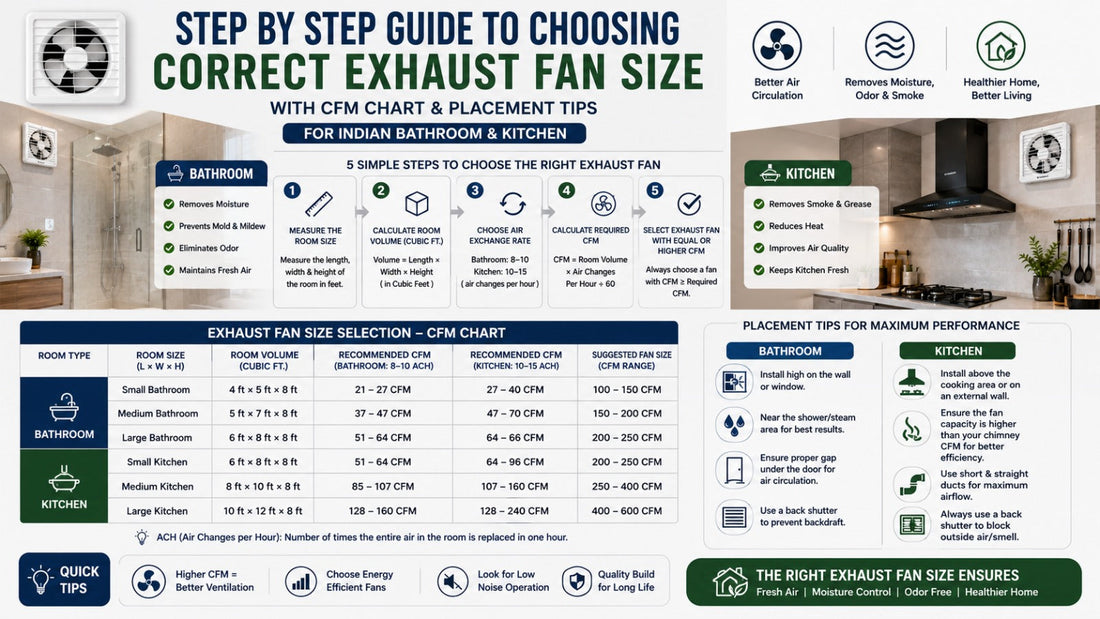

Quick Selection Chart

Common Mistakes to Avoid

The first mistake is buying by blade size alone. I have said this several times because it is the most common error. A 9-inch fan from one brand might move 180 CFM. Another 9-inch fan might move 300 CFM. The blade size does not tell you the performance. Check the CFM.

The second mistake is ignoring the mounting situation. Buying an axial fan when you need a centrifugal fan, or vice versa. If you are unsure, describe your room to the retailer. Tell them whether the fan will mount on a wall, in a window, or in a false ceiling with a duct. They should be able to guide you.

The third mistake is forgetting about makeup air. A bathroom with a sealed door and no window will not ventilate properly even with the best exhaust fan. The fan needs replacement air to enter the room. A door undercut of 12 to 15 millimeters is essential.

The fourth mistake is skipping the exterior shutter. That hole in the wall is an open passage for insects, dust, and hot air. A simple gravity flap shutter closes when the fan is off and solves the problem.

The fifth mistake is poor electrical installation. An exhaust fan in a bathroom should be on its own switch, separate from the light. The switch should be located outside the bathroom if possible, or at least away from the wet area. All bathroom electrical work must comply with safety regulations regarding proximity to water sources.

Frequently Asked Questions

Can I install an exhaust fan myself?

The electrical wiring should be handled by a licensed electrician. The physical mounting and wall core cutting can be done by a competent handyman. If the installation involves creating a new hole in an exterior wall, running ducting through a false ceiling, or any structural modification, I recommend professional installation.

What if my bathroom has no exterior wall?

You need a centrifugal inline duct fan installed in the false ceiling. A flexible insulated duct pipe runs from the bathroom grille to the fan, and another duct runs from the fan to the nearest exterior wall or the terrace. This is a more involved installation and requires a professional.

How much should I expect to pay for a good exhaust fan?

For a bathroom axial fan, expect to pay between Rs. 800 and Rs. 2000 for a reputable brand with copper windings. For a kitchen axial fan, Rs. 1500 to Rs. 3000. For a centrifugal inline duct fan, Rs. 2500 to Rs. 8000 depending on capacity. Installation costs are additional and depend on the complexity of the work.

Is a higher CFM always better?

Up to a point. A fan that is massively oversized for the room will create strong drafts and excessive noise. It may also pull too much conditioned air from the rest of the house, increasing your energy bills. Stick to the sizing guidelines. A 20 to 30 percent buffer above the minimum is good. Doubling the CFM is unnecessary for most residential applications.

Can I use the same exhaust fan model for my bathroom and kitchen?

You can, but you generally should not. Kitchen fans need to handle heat and oil, so metal blades and a higher CFM rating are preferred. Bathroom fans need to handle humidity, so corrosion-resistant materials and copper windings are the priority. There are fans marketed as suitable for both, but dedicated designs tend to perform better and last longer.

Final Checklist

Here is a summary checklist to take with you when shopping.

Measure your room. Calculate the square footage. Determine your required CFM using the formula of square footage multiplied by 1.5 for bathrooms and 2.5 for kitchens. Check if you have an exterior wall or need a ducted false ceiling installation. Choose axial for direct wall mount or centrifugal for ducted mount.

Pick a blade size appropriate for your room. Verify the CFM rating on the box. Check that the motor has 100 percent copper windings. Ensure the fan includes or can accept an external backdraft shutter. Consider a timer switch for the bathroom. Measure the door gap to confirm adequate makeup air. Hire a qualified electrician for the wiring.

If you follow this checklist, you will end up with an exhaust fan that is correctly sized, properly placed, and built to last. That is all there is to it.
