A wall-mounted exhaust fan is installed directly on an exterior wall. The air path is short, just the thickness of the wall. The fan pulls air from the room and pushes it straight outside.

This is the simplest, most efficient, and most affordable type of exhaust fan installation. It is the right choice whenever you have an exterior wall available in the room that needs ventilation.

A ceiling-mounted exhaust fan is installed in the ceiling, connected to ductwork that runs to an exterior vent. The fan itself is either mounted in the ceiling with a short duct or located remotely as an inline fan with longer ducting.

The room sees only a grille. This is the right choice when the room has no exterior wall, which is common in interior bathrooms, basements, and rooms in the center of large floor plans.

The choice between wall and ceiling mount is not primarily about preference. It is about your room's architecture. If the room has an exterior wall, mount the fan on the wall. It is cheaper, easier, more efficient, and easier to maintain. If the room has no exterior wall, you have no choice. The fan must go in the ceiling with ducting to an exterior vent.

Ceiling-mounted fans are not just wall fans installed horizontally. A standard axial wall fan should not be mounted on a ceiling.

Ceiling installations require either a ceiling-mounted axial fan specifically designed for horizontal operation, or more commonly, a ducted system with a centrifugal inline fan. Using the wrong fan type in a ceiling installation guarantees poor performance and premature failure.

This guide compares both mounting options, explains the pros and cons of each, and provides installation guidance for both scenarios.

Introduction

I once had a client who insisted on a ceiling-mounted exhaust fan in his bathroom. The bathroom had a perfectly good exterior wall. It was the obvious location for a wall fan. But he had seen ceiling-mounted fans in a luxury hotel and wanted the same look. A sleek white grille in the ceiling. No visible fan on the wall.

We installed a ducted ceiling system. It cost nearly four times what a wall fan would have cost. The ductwork had to snake through the false ceiling, around a beam, and out to the exterior wall.

The installation took two days instead of two hours. And when it was done, the airflow at the grille was lower than what a wall fan would have delivered because of the duct resistance. It worked, but it was less efficient, more expensive, and harder to maintain, all for aesthetics.

If you have an exterior wall, use it. The wall-mounted exhaust fan is one of those rare things in home improvement that is simultaneously the cheapest, simplest, and most effective option. It is the default choice for a reason.

But if you do not have an exterior wall, which is increasingly common in modern apartments with interior bathrooms and open-plan kitchens, the ceiling-mounted ducted system is not a luxury.

It is the only way to achieve mechanical exhaust. Understanding the differences between these two mounting options will help you make the right choice for your specific situation.

Wall-Mounted Exhaust Fans: The Standard Choice

A wall-mounted exhaust fan is installed directly on an exterior wall. The fan housing sits inside a hole cut through the wall. The front grille is visible in the room. The exterior shutter is visible on the outside wall. The air path is a straight line from the room, through the fan blades, through the wall opening, and out.

The advantages of wall mounting are numerous and significant.

The installation is straightforward. A single hole is core-cut through the wall. The fan housing is inserted. The electrical connection is made. The grille and shutter are attached. A competent electrician and handyman can complete the job in a couple of hours.

The cost is the lowest of any exhaust fan installation. There is no ductwork to buy and install. There is no access hatch to build. The labor is minimal. A typical wall fan installation costs between Rs. 1000 and Rs. 2500 in labor, plus the cost of the fan.

The efficiency is the highest possible. The air path is just the wall thickness, typically 6 to 9 inches. There is almost no resistance. The fan delivers its full rated CFM into the room. No duct losses. No pressure drop.

The maintenance is simple. The grille pops off from inside the room. The blades can be cleaned in minutes. The exterior shutter can be checked and cleaned from outside or by reaching through the fan housing.

The fan types available for wall mounting include standard axial fans, which are the most common and affordable, and high-speed axial fans for larger rooms or kitchens.

The limitations of wall mounting are architectural. The wall must be an exterior wall. It must be possible to core-cut a hole through it. In an apartment, this may require building management permission.

The exterior vent must not discharge onto a neighbor's window, balcony, or property line, which can be a constraint in dense urban settings. The fan is visible on both the interior and exterior walls, which some homeowners consider aesthetically undesirable.

Ceiling-Mounted Exhaust Fans: The Interior Room Solution

A ceiling-mounted exhaust fan system has a grille in the ceiling, connected by ductwork to a fan and then to an exterior vent. The fan can be mounted directly above the grille in the ceiling, or it can be mounted remotely as an inline fan with ducting on both sides.

The advantages of ceiling mounting are architectural flexibility and aesthetics.

Ceiling mounting works in any room, regardless of where the exterior walls are. An interior bathroom in the center of an apartment. A powder room under the stairs. A basement with no above-grade walls. A kitchen island cooktop. As long as ducting can be run to an exterior vent, the room can be ventilated.

The room aesthetics are cleaner. There is no visible fan on the wall. Only a flush white grille in the ceiling. This is the look that appeals to homeowners who want a minimalist, hotel-like bathroom.

Noise isolation can be better than wall-mounted fans. If the fan is an inline model mounted remotely in the ceiling cavity, the noise at the grille is very low. The ducting absorbs sound. The motor is far from the room. This makes ceiling-mounted systems a good choice for bathrooms attached to bedrooms where silence is valued.

The limitations of ceiling mounting are cost, complexity, and performance.

The cost is significantly higher. The system requires the fan, the ducting, the grille, the exterior termination, access hatches, and significantly more labor. The total installed cost can be three to five times that of a wall-mounted fan.

The installation is more complex. Ductwork must be routed through the ceiling cavity, around beams, pipes, and electrical conduits. The duct must be properly supported. The fan must be mounted and electrically connected. An access hatch must be built into the false ceiling for future maintenance.

The performance is lower than a wall-mounted fan of the same CFM rating because of duct losses. Every foot of duct and every bend adds resistance. The fan must be more powerful and the duct must be correctly sized to achieve the required airflow at the grille.

The maintenance is more difficult. The fan is in the ceiling. You need a ladder and an access hatch. Cleaning the blades or replacing the fan requires working overhead in a confined space.

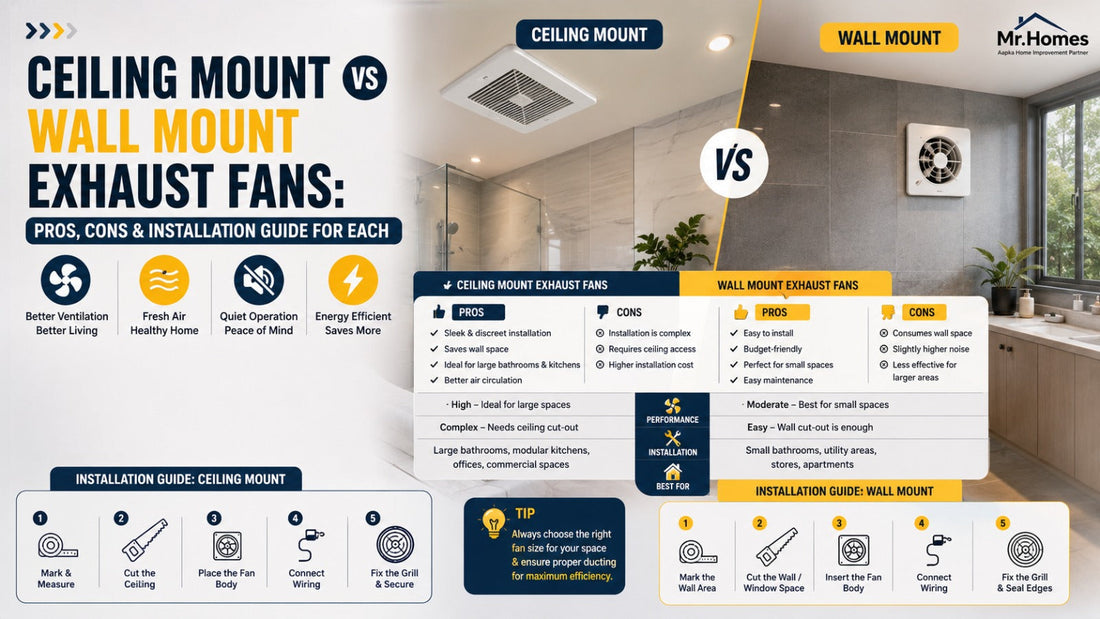

Quick Comparison Table

When Wall Mount Is the Clear Winner

Wall mount is the clear winner in the following situations.

The room has an available exterior wall. This is the most common scenario in independent houses, older apartments, and any building where bathrooms and kitchens are located on the perimeter.

Budget is a primary concern. Wall mounting delivers the best performance per rupee. The fan is cheaper. The installation is cheaper. The long-term maintenance is cheaper.

You want the simplest possible installation. A wall fan can be installed in a few hours with minimal disruption. There is no false ceiling to open up. No ductwork to route.

You want maximum airflow for the fan size. In a kitchen where heavy cooking generates a lot of smoke, a wall-mounted 9-inch or 12-inch fan delivers its full CFM directly to the outdoors. A ducted ceiling system would need a larger fan to achieve the same effective airflow.

You want easy maintenance access. Being able to pop off the grille and clean the blades without a ladder or tools is a genuine convenience that keeps the fan working efficiently for years.

When Ceiling Mount Is Your Only Option

Ceiling mount is the only option, or the strongly preferred option, in the following situations.

The room has no exterior wall. An interior bathroom, a powder room, or a kitchen with no outside wall access. In these cases, there is no choice. The exhaust must go up through the ceiling and then horizontally to an exterior vent.

The exterior wall is not available for venting. It might be a shared wall with a neighbor. It might face a narrow light well where venting is prohibited. It might be a structural shear wall that cannot be penetrated. The exhaust must be routed elsewhere.

Aesthetics are a very high priority and the budget allows for the premium. The clean look of a ceiling grille with no visible fan is worth the extra cost to some homeowners.

Noise is a critical concern. A bathroom attached to a master bedroom, where even a quiet wall fan might disturb sleep. A remotely mounted inline fan in a ceiling system can be nearly silent.

The room has a false ceiling that makes duct routing feasible. If a false ceiling is already planned or installed, the incremental cost of adding ducted exhaust is lower than creating a false ceiling specifically for ventilation.

Fan Types for Each Mounting Option

For wall mounting, the correct fan type is an axial exhaust fan. These are designed for vertical orientation with the motor shaft horizontal. The bearings are arranged to support the rotor in this orientation.

The blade design is optimized for direct exhaust through a short opening. Standard 150mm and 230mm axial fans from Havells, Crompton, Usha, and other brands are all designed for wall mounting.

For ceiling mounting, there are two options. A ceiling-mounted axial fan specifically designed for horizontal operation. These have bearings and motor mounts designed for a horizontal shaft orientation. They are less common than wall-mounted axial fans but are available from some manufacturers.

The second and more common option is a centrifugal inline fan mounted remotely in the ceiling cavity, with ducting from the ceiling grille to the fan and from the fan to the exterior vent. This is the standard professional solution for ducted ceiling systems.

Never install a standard wall-mounted axial fan horizontally in a ceiling. The bearings are not designed for this orientation. Gravity pulls the rotor in a direction the bearings are not meant to support. The motor may overheat because the cooling airflow path is altered. The fan will be noisier and will fail prematurely.

Installation Considerations

Wall-mounted fan installation involves core-cutting a hole through the exterior wall. The hole must be the correct diameter for the fan housing. It must slope slightly downward toward the outside to drain any water.

The fan housing is inserted, secured with screws and wall plugs, and sealed with silicone or expanding foam around the edges. The electrical connection is made. The grille and exterior shutter are attached.

Ceiling-mounted fan installation is more involved. The ceiling grille requires an opening cut in the false ceiling. The ductwork must be routed from the grille to the fan location and from the fan to the exterior vent. The fan must be securely mounted, typically suspended from the structural slab with threaded rods and vibration isolators.

An access hatch must be built into the false ceiling below the fan for maintenance. The exterior vent termination must be properly flashed and sealed against rain. The electrical connection must be made with a means of disconnection accessible for maintenance.

For both types, the electrical work must be done by a licensed electrician. The circuit must be properly protected. The switch should be located outside the bathroom wet zone. A timer switch is strongly recommended for both wall and ceiling installations.

Frequently Asked Questions

Can I convert a wall-mounted fan to a ceiling-mounted fan?

No. Wall-mounted axial fans are not designed for horizontal ceiling installation. You must buy a fan specifically designed for ceiling mounting or an inline fan for a ducted ceiling system.

Is a ceiling exhaust fan less effective than a wall exhaust fan?

For the same rated CFM, a ceiling fan will deliver less effective airflow at the room grille because of duct losses. The longer the duct and the more bends, the greater the loss. To compensate, you may need a higher CFM fan for a ceiling installation to achieve the same room airflow.

Do I need a false ceiling for a ceiling-mounted exhaust fan?

Not necessarily for the fan itself, but a false ceiling is where the grille is mounted and where the ductwork is concealed. If the room has no false ceiling, the ductwork would be visible, which is generally not acceptable in finished living spaces. In an unfinished basement or utility space, exposed ductwork may be acceptable.

Can I vent a ceiling fan through the roof instead of a wall?

Yes. Roof venting is common in single-story homes and top-floor apartments. The duct runs up through the ceiling and exits through a roof vent. The roof penetration must be properly flashed and sealed to prevent leaks. A roof vent cap with a backdraft damper and bird screen is required.

How do I clean a ceiling-mounted exhaust fan?

Remove the ceiling grille, which is usually held by spring clips. If the fan is directly above the grille, clean the blades from below. If the fan is an inline model located remotely, you need to access it through the access hatch. This is why planning for maintenance access during installation is so important.

What is the ideal ceiling height for a ceiling exhaust fan?

The grille should be mounted as close to the center of the room as practical, or directly above the moisture source like the shower. Standard ceiling heights of 8 to 10 feet work fine. For very high ceilings, the exhaust grille should still be at ceiling level because hot, humid air rises.

---
