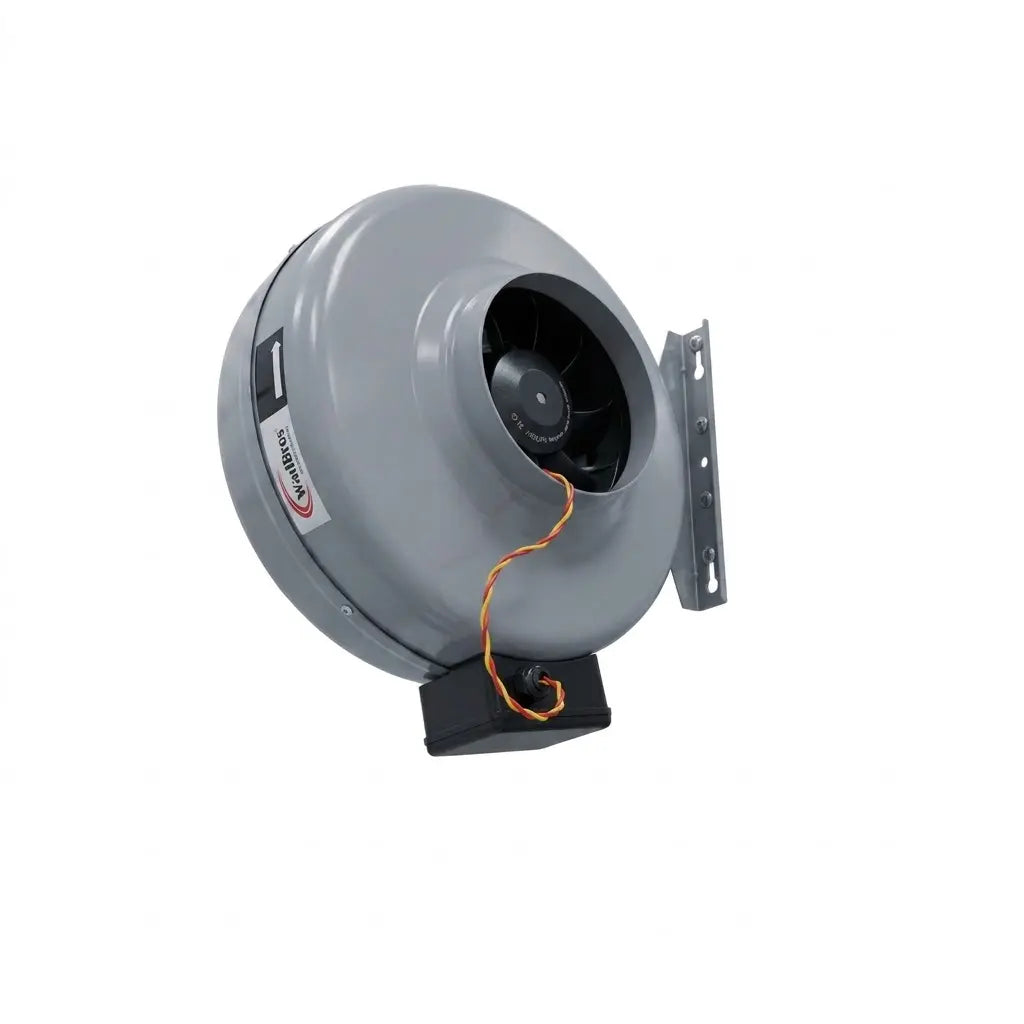

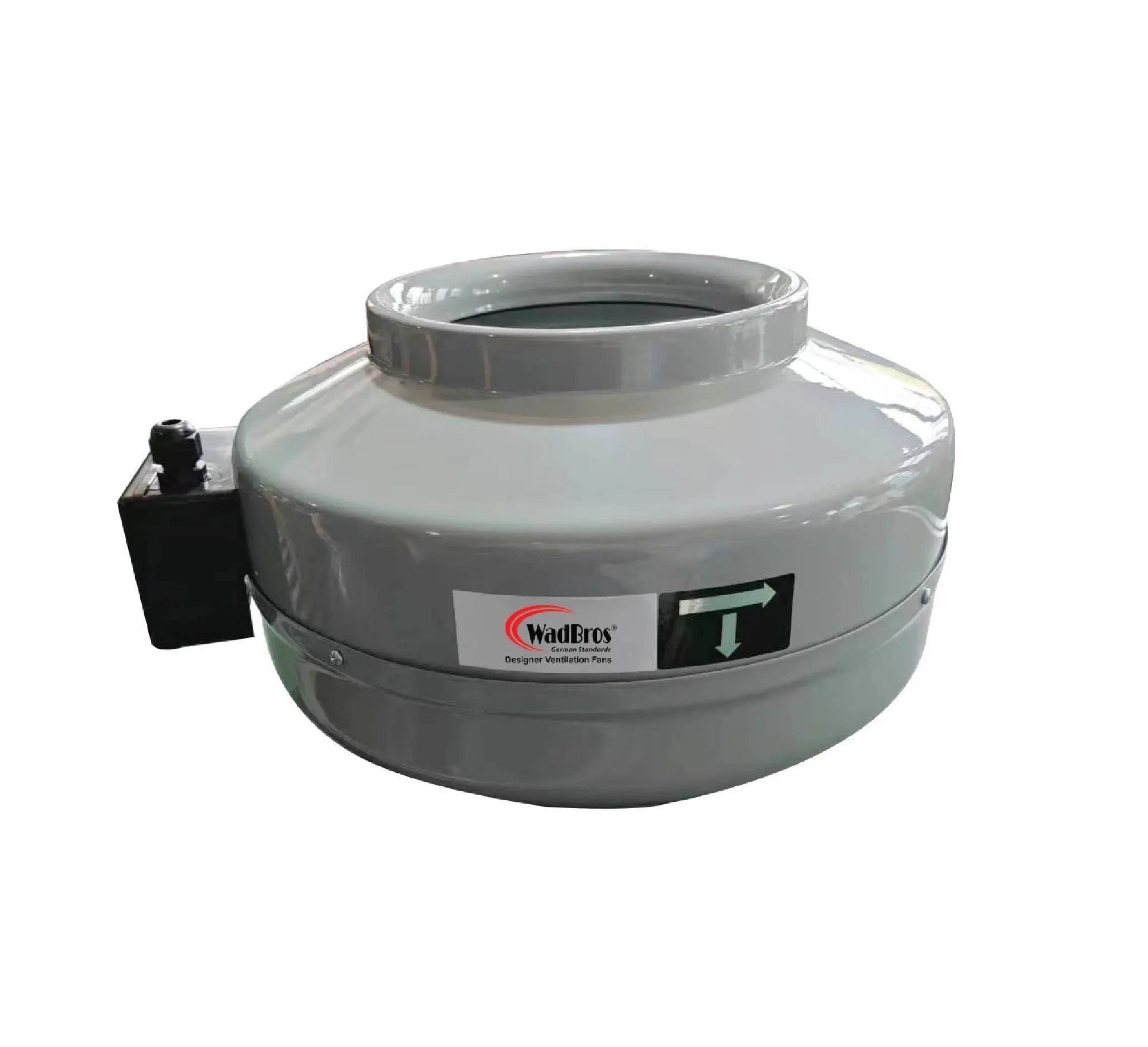

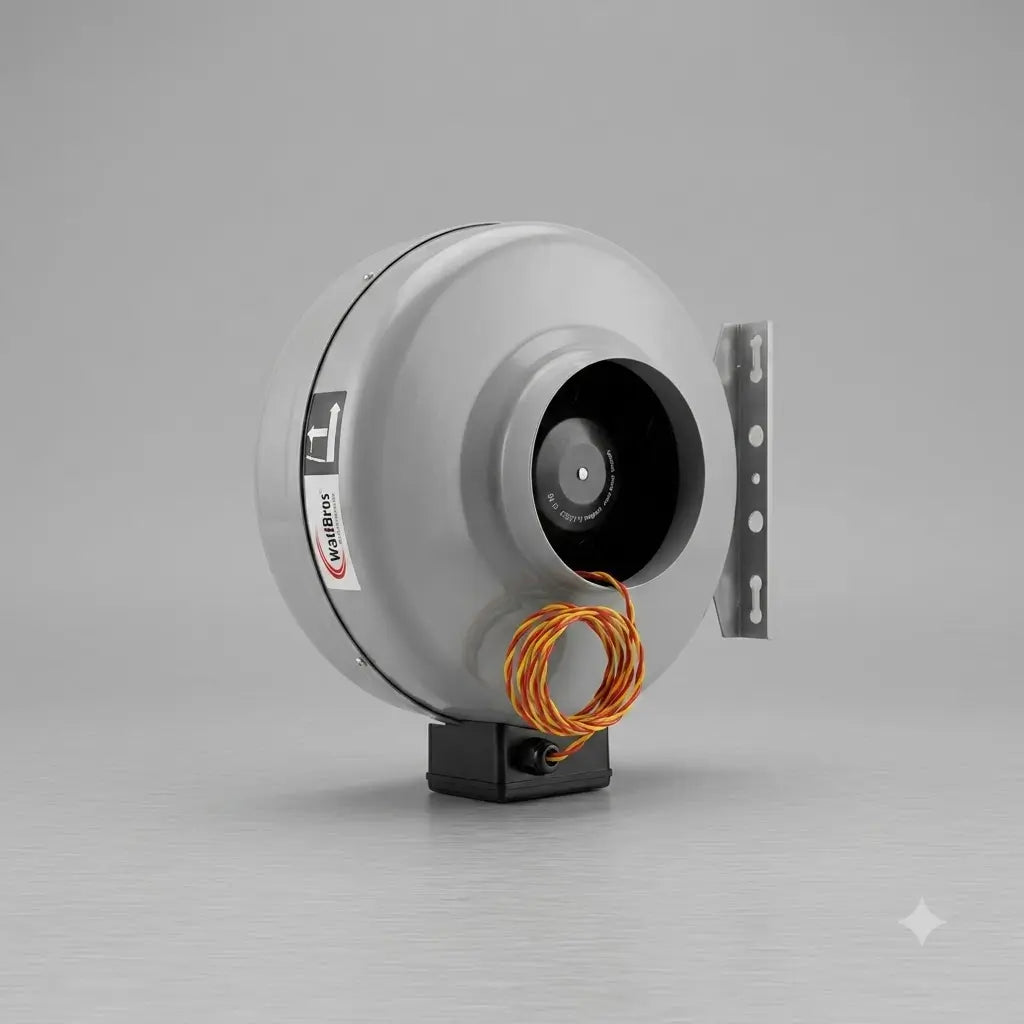

WadBros IL-M Heavy Duty Inline Duct Fan | Industrial Ventilation Fan

The WadBros IL-M Series Heavy Duty Inline Duct Fan is designed for commercial and industrial ventilation applications where reliable airflow, durable construction and efficient ducted air movement are required.

Built with a rugged metal body and external rotor motor, the IL-M Series is suitable for demanding ventilation systems, including applications involving long duct runs and higher duct resistance.

Available in multiple sizes and airflow capacities, the IL-M Series provides a practical ventilation solution for factories, warehouses, workshops, commercial buildings and other industrial environments.

Key Features

• Heavy-duty metal body for commercial and industrial applications
• Designed for long duct and high-load ventilation applications
• External rotor motor designed for precision balance
• Double ball bearing motor for reliable operation
• Designed for silent operation
• Multiple fan sizes available
• Airflow capacity up to 2,500 m³/h
• Rated voltage: 220–230 V
• Rated frequency: 50–60 Hz

Suitable Applications

• Factories and manufacturing facilities
• Warehouses
• Workshops
• Commercial buildings
• Industrial ventilation systems
• Ducted exhaust systems
• Long-duct ventilation applications
• High-resistance duct applications

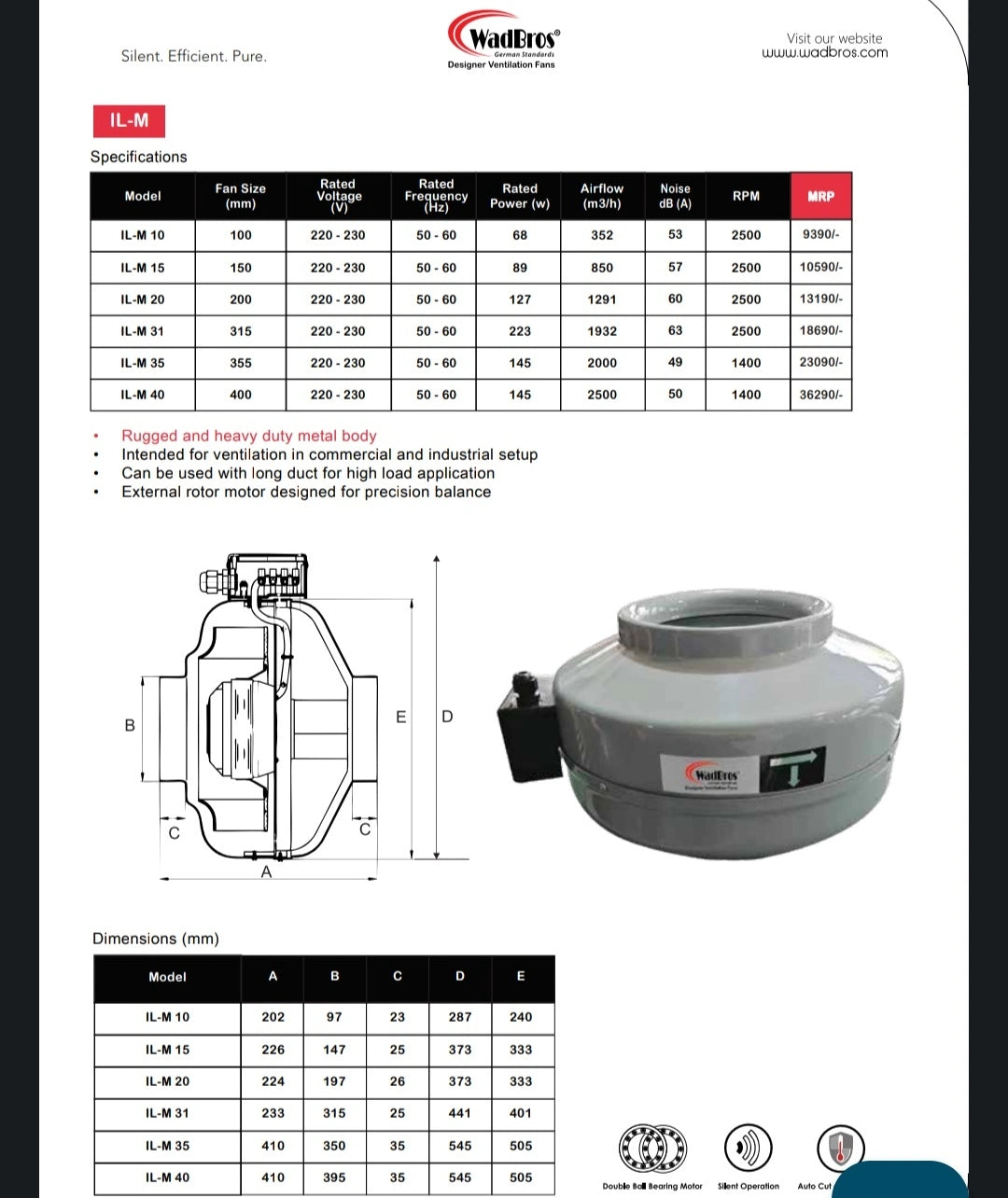

Technical Specifications

Rated Voltage: 220–230 V

Rated Frequency: 50–60 Hz

Dimensions
